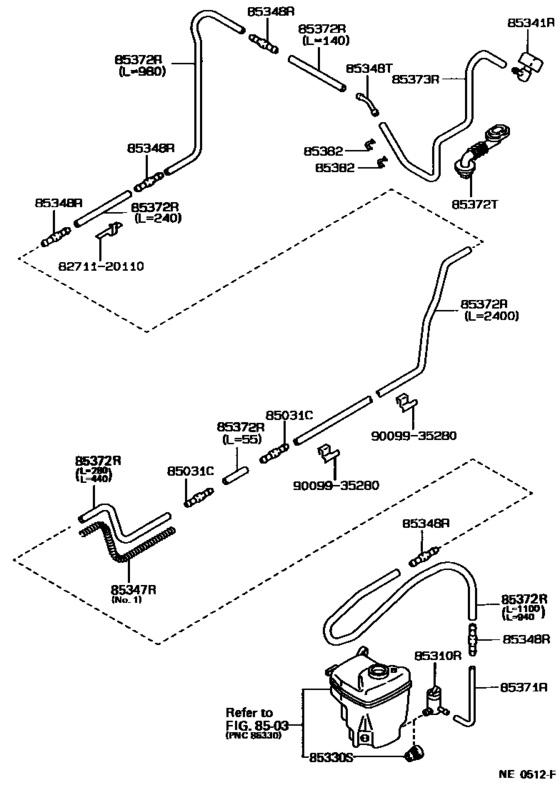

Rear Washer ([10.1987 - ] (8710- )AE92..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AE92
- grade
- DX
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- COROLLA (JPP)
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031C
|
85031C
85031-30010 Valve Sub-Assy, Washer[10.1987 - 08.1989] AE9#..WG |
85031-30010 |
from US $1.54 |
||
|
85310R
|
85310R
85310-12170
Motor Assy, Rear Washer
[10.1987 - 08.1989] AE9#..WG..DX..USA; AE95..SR5;AE9#..WG..DX..CND |
85310-12170 |
— | ||
| replacement | |||||
|
85310R
|
85310R
85310-16080
Motor And Pump Assy, Windshield Washer
[10.1987 - 08.1989] AE9#..WG..DX..USA; AE95..SR5;AE9#..WG..DX..CND |
85310-16080 |
— | ||
|
85330S
|
85330S
90099-32089 Bush, Headlamp Cleaner Washer Jar[10.1987 - 08.1989] AE9#..WG..DX..USA |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330S
|
85330S
90099320891
Grommet
[10.1987 - 08.1989] AE9#..WG..DX..USA |
90099320891 |
— | ||
|
85330S
|
85330S
90068-32002 Bush, Windshield Washer Jar[10.1987 - 08.1989] AE9#..WG..DX..USA |
90068-32002 |
US $7.46 |
||
|
85341R
|
85341R
85341-13030
Nozzle Assy, Washer
[10.1987 - 06.1992] AE92..WG |
85341-13030 |
— | ||
| replacement | |||||
|
85341R
|
85341R
85341-12230
Nozzle Assy, Washer
[10.1987 - 06.1992] AE92..WG |
85341-12230 |
— | ||
|
85347R
|
85347R
85347-13100
Spring
[10.1987 - 04.1988] AE9#..WG NO.1 |
85347-13100 |
— | ||
|
85348R
|
85348R
85349-89122 Valve Sub-Assy, Washer[10.1987 - 08.1989] AE92..WG |
85349-89122 |
from US $1.25 |
||
|
85348T
|
85348T
85355-20080
Joint, Rear Washer Hose, No.1
[10.1987 - 06.1992] AE9#..WG |
85355-20080 |
— | ||
|
85371R
|
85371R
90099-33299 Joint, Windshield Washer Elbow, No.2[10.1987 - 08.1989] AE9#..WG..DX..USA L=1000; AE95..SR5;AE9#..WG..DX..CND L=1000 |
90099-33299 |
from US $4.37 |
||
|
85372R
|
85372R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.1987 - 08.1989] AE9#..WG L=1450 |
90099-33080 |
from US $5.27 |
||
|
85372R
|
85372R
90099-33410
Hose, Windshield Washer (From Motor To Joint)
[10.1987 - 01.1988] AE92..WG *H,L=1100 |
90099-33410 |
— | ||
| replacement | |||||
|
85372R
|
85372R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[10.1987 - 01.1988] AE92..WG *H,L=1100 |
90446-07001 |
from US $1.75 |
||
|
85372R
|
85372R
90099-33420
Hose, Rear Washer (From Joint To Joint Or Nozzle)
[10.1987 - 06.1992] AE92..WG *H,L=2400 |
90099-33420 |
— | ||
| replacement | |||||
|
85372R
|
85372R
90099-33589 Hose, Rear Washer (From Motor To Joint)[10.1987 - 06.1992] AE92..WG *H,L=2400 |
90099-33589 |
from US $3.84 |
||
|
85372R
|
85372R
90099-33435
Hose, Rear Washer (From Joint To Joint Or Nozzle)
[10.1987 - 01.1988] AE92..WG *H,L=280 |
90099-33435 |
— | ||
| replacement | |||||
|
85372R
|
85372R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[10.1987 - 01.1988] AE92..WG *H,L=280 |
90446-07001 |
from US $1.75 |
||
|
85372R
|
85372R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[10.1987 - 06.1992] AE92..WG |
90446-07001 |
from US $1.75 |
||
|
85372T
|
85372T
85372-12020 Grommet, Washer[10.1987 - 06.1992] AE9#..WG |
85372-12020 |
US $8.44 |
||
|
85373R
|
85373R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[10.1987 - 06.1992] AE92..WG L=1450 |
90099-33080 |
from US $5.27 |
||
|
85382
|
85382
85382-13010 Cover, Rear Washer Hose[10.1987 - 08.1989] AE92..WG |
85382-13010 |
US $5.24 |
||
|
8271120110
|
8271120110
82711-20110 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20110 |
US $3.49 |
||
|
9009935280
|
9009935280
90099-35280
New Genuine Part
|
90099-35280 |
— | ||
