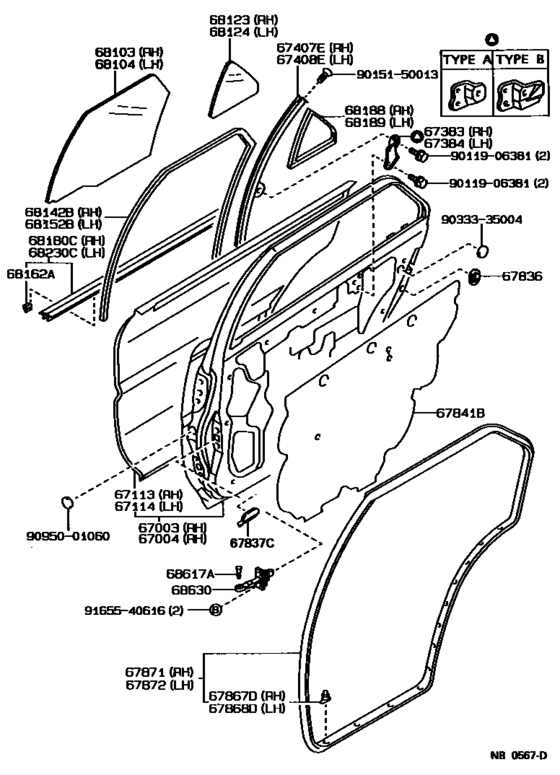

Rear Door Panel & Glass ([05.1987 - ] (8705- )SED,WG) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 07.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-13220
Panel Sub-Assy, Rear Door, Rh
[10.1987 - 07.1992] AE92,EE90..WG..GCC |
67003-13220 |
— | ||
|
67004
|
67004
67004-13220
Panel Sub-Assy, Rear Door, Lh
[10.1987 - 07.1992] AE92,EE90..WG..GCC |
67004-13220 |
— | ||
|
67113
|
67113
67113-12140 Panel, Rear Door, Outer Rh[05.1987 - 07.1992] AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GCC,GEN) |
67113-12140 |
US $291.20 |
||
|
67114
|
67114
67114-12140 Panel, Rear Door, Outer Lh[05.1987 - 07.1992] AE95,CE90..SED;AE92,EE9#..(SED,WG)..(GCC,GEN) |
67114-12140 |
US $291.20 |
||
|
67383
|
67383
67383-12030 Bracket, Rear Door Inside Panel, No.2 Rh[05.1987 - 08.1993] AE9#,CE90,EE9#..SED,WG |
67383-12030 |
US $7.43 |
||
|
67384
|
67384
67384-12030 Bracket, Rear Door Inside Panel, No.2 Lh[05.1987 - 08.1993] AE9#,CE90,EE9#..SED,WG |
67384-12030 |
US $7.43 |
||
|
67407E
|
67407E
67407-13020 Bar Sub-Assy, Rear Door Window Division, Rh[10.1987 - 07.1992] AE95..WG;AE92,EE90..WG..GCC |
67407-13020 |
US $47.17 |
||
|
67408E
|
67408E
67408-13020 Bar Sub-Assy, Rear Door Window Division, Lh[10.1987 - 07.1992] AE95..WG;AE92,EE90..WG..GCC |
67408-13020 |
US $47.17 |
||
|
67836
|
67836
67836-12030 Cover, Rear Door Lock Child Protection, Rh[08.1987 - 08.1993] AE9#,EE90..ARL,GCC,SA |
67836-12030 |
US $4.08 |
||
|
67867D
|
67867D
67867-12120 Retainer, Rear Door Weatherstrip, Rh[08.1987 - 09.1991] AE92,EE9#..WG |
67867-12120 |
US $2.18 |
||
|
67868D
|
67868D
67868-12070 Retainer, Rear Door Weatherstrip, Lh[08.1987 - 09.1991] AE92,EE9#..WG |
67868-12070 |
US $2.18 |
||
|
67871
|
67871
67871-13112 Weatherstrip, Rear Door, Rh[08.1989 - 07.1992] AE92,EE90..WG |
67871-13112 |
US $82.99 |
||
|
67872
|
67872
67872-13102 Weatherstrip, Rear Door, Lh[08.1989 - 07.1992] AE92,EE90..WG |
67872-13102 |
US $82.99 |
||
|
68103
|
68103
68113-13090 Glass Sub-Assy, Rear Door, Rh[08.1987 - 07.1992] AE92,EE9#..WG *TEM,T=3.5 |
68113-13090 |
US $216.94 |
||
| replacement | |||||
|
68103
|
68103
68113-13100 Glass Sub-Assy, Rear Door, Rh[08.1987 - 07.1992] AE92,EE9#..WG *TEM,T=3.5 |
68113-13100 |
US $218.40 |
||
|
68103
|
68103
68113-13100 Glass Sub-Assy, Rear Door, Rh[10.1987 - 07.1992] AE92,EE90..WG..GCC *TT,T=3.5 |
68113-13100 |
US $218.40 |
||
|
68104
|
68104
68114-13090 Glass Sub-Assy, Rear Door, Lh[08.1987 - 07.1992] AE92,EE9#..WG *TEM,T=3.5 |
68114-13090 |
US $216.94 |
||
| replacement | |||||
|
68104
|
68104
68114-13100 Glass Sub-Assy, Rear Door, Lh[08.1987 - 07.1992] AE92,EE9#..WG *TEM,T=3.5 |
68114-13100 |
US $218.40 |
||
|
68104
|
68104
68114-13100 Glass Sub-Assy, Rear Door, Lh[10.1987 - 07.1992] AE92,EE90..WG..GCC *TT,T=3.5 |
68114-13100 |
US $218.40 |
||
|
68123
|
68123
68123-13100
Glass, Rear Door Window, Rh
[08.1987 - 07.1992] AE92,EE9#..WG *TEM,T=3.5 |
68123-13100 |
— | ||
|
68123
|
68123
68123-13110 Glass, Rear Door Window, Rh[10.1987 - 07.1992] AE92,EE90..WG..GCC *TT,=3.5 |
68123-13110 |
US $66.68 |
||
|
68124
|
68124
68124-13090 Glass, Rear Door Window, Lh[08.1987 - 07.1992] AE92,EE9#..WG *TEM,T=3.5 |
68124-13090 |
US $64.36 |
||
|
68124
|
68124
68124-13100 Glass, Rear Door Window, Lh[10.1987 - 07.1992] AE92,EE90..WG..GCC *TT,T=3.5 |
68124-13100 |
US $66.68 |
||
|
68142B
|
68142B
68142-13050
Run, Rear Door Window, Rh
[08.1989 - 07.1992] AE9#,EE9#..WG |
68142-13050 |
— | ||
|
68152B
|
68152B
68152-13010
Run, Rear Door Window, Lh
[08.1989 - 07.1992] AE9#,EE9#..WG |
68152-13010 |
— | ||
|
68188
|
68188
68188-13050 Weatherstrip, Rear Door Quarter Window, Rh[08.1987 - 07.1992] AE92,EE9#..WG..XL |
68188-13050 |
US $20.53 |
||
|
68189
|
68189
68189-13050 Weatherstrip, Rear Door Quarter Window, Lh[08.1987 - 07.1992] AE92,EE9#..WG..XL |
68189-13050 |
US $20.53 |
||
|
68617A
|
68617A
68617-12030 Pin, Front Door Check[09.1988 - 09.1991] AE9#,CE90,EE9# |
68617-12030 |
US $3.67 |
||
|
68630
|
68630
68630-12040 Check Assy, Rear Door[05.1987 - 09.1991] AE9#,CE90,EE9# |
68630-12040 |
US $49.80 |
||
|
9011906381
|
9011906381
90119-06381 New Genuine Part |
90119-06381 |
US $1.75 |
||
| replacement | |||||
|
9011906381
|
9011906381
90119-06294 BOLT |
90119-06294 |
from US $0.98 |
||
|
9015150013
|
9015150013
90151-50013 New Genuine Part |
90151-50013 |
US $2.15 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
