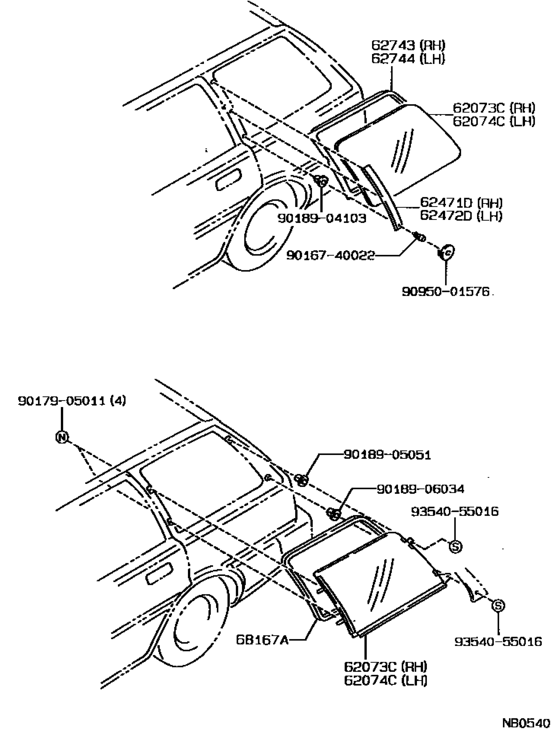

Quarter Window ([08.1987 - ] (8708- )AE92,CE90,EE90..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62073C
|
62073C
62073-13050 Glass Sub-Assy, Quarter, Rear RhQUARTER, REAR RH [08.1987 - 09.1991] AE92,CE90,EE90..WG..(XL,XLI) |
62073-13050 |
US $334.88 |
||
| replacement | |||||
|
62073C
|
62073C
62073-13060 Glass Sub-Assy, Quarter, Rear RhQUARTER, REAR RH [08.1987 - 09.1991] AE92,CE90,EE90..WG..(XL,XLI) |
62073-13060 |
US $337.79 |
||
|
62073C
|
62073C
62073-13060 Glass Sub-Assy, Quarter, Rear RhQUARTER, REAR RH [08.1987 - 12.1988] AE92,CE90,EE90..WG..XL |
62073-13060 |
US $337.79 |
||
|
62074C
|
62074C
62074-13050 Glass Sub-Assy, Quarter, Rear LhQUARTER, REAR LH [08.1987 - 09.1991] AE92,CE90,EE90..WG..(XL,XLI) |
62074-13050 |
US $334.88 |
||
| replacement | |||||
|
62074C
|
62074C
62074-13060 Glass Sub-Assy, Quarter, Rear LhQUARTER, REAR LH [08.1987 - 09.1991] AE92,CE90,EE90..WG..(XL,XLI) |
62074-13060 |
US $337.79 |
||
|
62074C
|
62074C
62074-13060 Glass Sub-Assy, Quarter, Rear LhQUARTER, REAR LH [08.1987 - 12.1988] AE92,CE90,EE90..WG..XL |
62074-13060 |
US $337.79 |
||
|
68167A
|
68167A
68167-13010 Weatherstrip, Quarter Window No.2 Glass[08.1987 - 09.1991] AE92,CE90,EE90..WG..(GL,XL,XLI) |
68167-13010 |
US $84.45 |
||
|
9016740022
|
9016740022
90167-40022 New Genuine Part |
90167-40022 |
US $1.60 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9018904103
|
9018904103
90189-04103 New Genuine Part |
90189-04103 |
US $1.75 |
||
|
9018905051
|
9018905051
90189-05051 GROMMET SCREW |
90189-05051 |
from US $1.21 |
||
|
9018906034
|
9018906034
90189-06034 GROMMET |
90189-06034 |
from US $0.78 |
||
|
9095001576
|
9095001576
90950-01576
New Genuine Part
|
90950-01576 |
— | ||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
