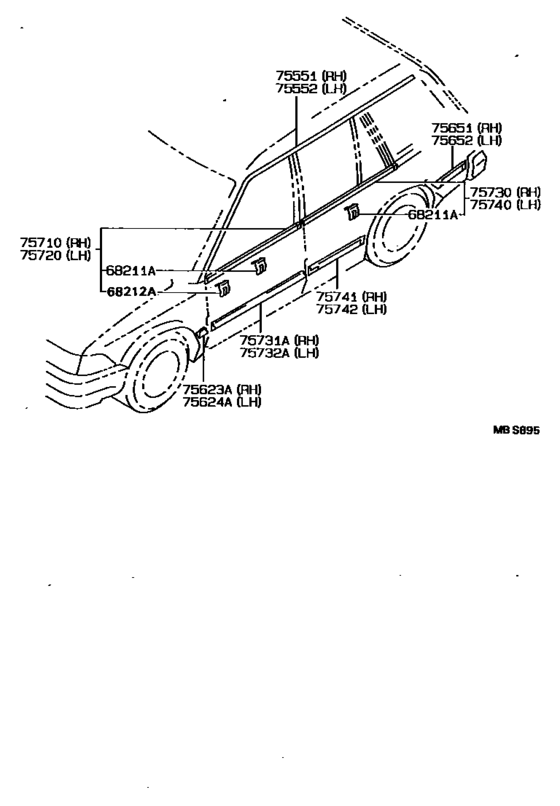

Side Moulding ([08.1987 - ] (8708- )AE92,CE90,EE90..WG) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- XL
- body
- WG
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68211A
|
68211A
68211-12130 Clip, Door Belt Moulding[08.1989 - 05.1992] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
68211-12130 |
US $3.04 |
||
|
68212A
|
68212A
68212-12010 Clip, Door Glass Weatherstrip, Outer[08.1989 - 05.1992] AE9#,CE90,EE90..GL,GLI,GTI,XL,XLI |
68212-12010 |
US $3.49 |
||
|
75551
|
75551
75551-13081
Moulding, Roof Drip Side Finish, Rh
[08.1987 - 09.1991] AE92,CE90,EE90..WG..(XL,XLI) |
75551-13081 |
— | ||
|
75552
|
75552
75552-13081
Moulding, Roof Drip Side Finish, Lh
[08.1987 - 09.1991] AE92,CE90,EE90..WG..(XL,XLI) |
75552-13081 |
— | ||
|
75623A
|
75623A
75623-12460 Moulding, Front Fender, Outside Rear Rh[05.1987 - 05.1992] EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI) |
75623-12460 |
US $17.18 |
||
|
75624A
|
75624A
75624-12460 Moulding, Front Fender, Outside Rear Lh[05.1987 - 05.1992] EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI) |
75624-12460 |
US $17.18 |
||
|
75651
|
75651
75651-13070 Moulding, Quarter, Outside Rh[08.1987 - 05.1992] AE92,CE90,EE90..WG |
75651-13070 |
US $39.31 |
||
|
75652
|
75652
75652-13060 Moulding, Quarter, Outside Lh[08.1987 - 05.1992] AE92,CE90,EE90..WG |
75652-13060 |
US $39.31 |
||
|
75710
|
75710
75710-12410 Moulding Assy, Front Door Belt, Rh[05.1987 - 05.1992] AE95..WG;AE95..SED..(XL,XLI);AE92,CE90,EE90..GTI,XL,XLI |
75710-12410 |
US $74.78 |
||
|
75720
|
75720
75720-12410
Moulding Assy, Front Door Belt, Lh
[05.1987 - 05.1992] AE95..WG;AE95..SED..(XL,XLI);AE92,CE90,EE90..GTI,XL,XLI |
75720-12410 |
— | ||
|
75730
|
75730
75730-12130 Moulding Assy, Rear Door Belt, Rh[08.1987 - 05.1992] EE90..WG..(XL,XLI);AE9#,CE90..WG..(GL,GLI,XL,XLI) |
75730-12130 |
US $52.27 |
||
|
75731A
|
75731A
75731-12860 Moulding, Front Door, Outside Rh[05.1987 - 05.1992] EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI) |
75731-12860 |
US $64.79 |
||
|
75732A
|
75732A
75732-12700 Moulding, Front Door, Outside Lh[05.1987 - 05.1992] EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI) |
75732-12700 |
US $64.79 |
||
|
75740
|
75740
75740-12220 Moulding Assy, Rear Door Belt, Lh[08.1987 - 05.1992] EE90..WG..(XL,XLI);AE9#,CE90..WG..(GL,GLI,XL,XLI) |
75740-12220 |
US $52.27 |
||
|
75741
|
75741
75741-12630 Moulding, Rear Door, Outside Rh[05.1987 - 05.1992] EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI) |
75741-12630 |
US $50.09 |
||
|
75742
|
75742
75742-12610
Moulding, Rear Door, Outside Lh
[05.1987 - 05.1992] EE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI) |
75742-12610 |
— |
