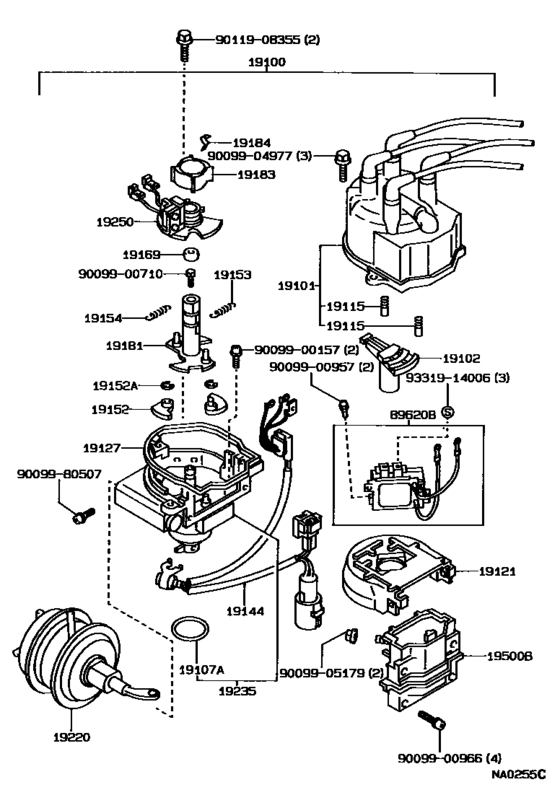

Distributor ([08.1987 - 09.1989] (8708-8909)) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19030-16120 Distributor Assy[09.1988 - 09.1989] 4AF..AE92 |
19030-16120 |
US $1,659.84 |
||
|
19101
|
19101
19101-16120 Cap Sub-Assy, DistributorDISTRIBUTOR [09.1988 - 09.1989] 4AF..AE92 |
19101-16120 |
US $136.86 |
||
|
19102
|
19102
19102-11031
Rotor Sub-Assy, Distributor
[09.1988 - 09.1992] 4AF#..AE92 |
19102-11031 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-16010 Rotor Sub-Assy, Distributor[09.1988 - 09.1992] 4AF#..AE92 |
19102-16010 |
from US $10.04 |
||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[09.1988 - 03.1991] 4AF#..AE92 |
96711-35030 |
from US $3.14 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[09.1988 - 09.1992] 4AF#..AE92 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-11080 Cover, Dust Proof[09.1988 - 09.1989] 4AF..AE92 |
19121-11080 |
from US $4.02 |
||
|
19127
|
19127
19127-15120 Packing, Dust Proof[09.1988 - 09.1989] 4AF..AE92 |
19127-15120 |
from US $3.28 |
||
|
19144
|
19144
19144-16090
Lead, Distributor Breaker
[09.1988 - 09.1989] 4AF..AE92 |
19144-16090 |
— | ||
|
19152
|
19152
19152-15160 Weight, Governor[09.1988 - 09.1989] 4AF..AE92 |
19152-15160 |
US $12.52 |
||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[09.1988 - 09.1989] 4AF..AE92 |
90099-07122 |
— | ||
|
19153
|
19153
19153-16230 Spring, Governor, AGOVERNOR, A [09.1988 - 09.1989] 4AF..AE92 |
19153-16230 |
US $5.53 |
||
|
19154
|
19154
19154-16230 Spring, Governor, BGOVERNOR, B [09.1988 - 09.1989] 4AF..AE92 |
19154-16230 |
US $5.53 |
||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1988 - 09.1989] 4AF..AE92 |
19169-63011 |
— | ||
|
19181
|
19181
19181-16220
Rotor, Distributor, Signal
[09.1988 - 09.1989] 4AF..AE92 |
19181-16220 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-11182
Rotor, Distributor, Signal
[09.1988 - 09.1989] 4AF..AE92 |
19181-11182 |
— | ||
|
19183
|
19183
19183-15010
Rotor, Signal
[09.1988 - 09.1989] 4AF..AE92 |
19183-15010 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[09.1988 - 09.1989] 4AF..AE92 |
19184-63010 |
— | ||
|
19220
|
19220
19220-16250 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [09.1988 - 09.1989] 4AF..AE92 |
19220-16250 |
US $97.55 |
||
|
19235
|
19235
19235-16090 Housing, Distributor[09.1988 - 09.1989] 4AF..AE92 |
19235-16090 |
US $187.82 |
||
|
19250
|
19250
19251-16100 Generator Assy, Signal[09.1988 - 09.1989] 4AF..AE92 |
19251-16100 |
US $159 |
||
|
19500B
|
19500B
90919-02164 Coil Assy, Ignition[09.1988 - 09.1989] 4AF..AE92 |
90919-02164 |
from US $115.36 |
||
|
89620B
|
89620B
89620-10120 Igniter[09.1988 - 09.1989] AE92 |
89620-10120 |
US $342.45 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009900966
|
9009900966
90099-00966
New Genuine Part
|
90099-00966 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908355
|
9011908355
90119-08355 Bolt |
90119-08355 |
US $3.40 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
