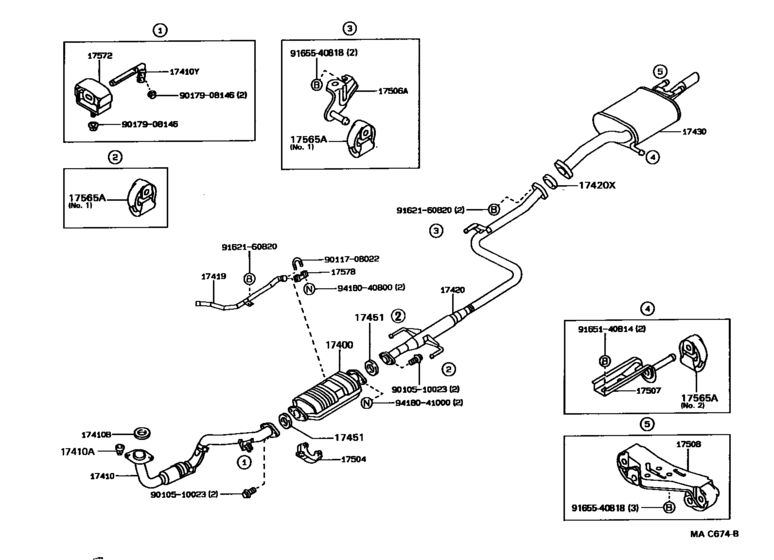

Exhaust Pipe ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-16330
Converter Assy, W/catalyst
[09.1988 - 03.1989] 4AF..AE92..USA EX.EMISSION CONTROL(USA CALIFORNIA) |
18450-16330 |
— | ||
|
17400
|
17400
18450-16360 Converter Assy, W/catalystW/CATALYST [03.1989 - 09.1989] 4AF..AE92..USA |
18450-16360 |
US $1,294.38 |
||
|
17400
|
17400
18450-16390 Converter Assy, W/catalystW/CATALYST [09.1988 - 03.1989] 4AF..AE92 |
18450-16390 |
US $873.60 |
||
|
17400
|
17400
18450-16500 Converter Assy, W/catalystW/CATALYST [03.1989 - 09.1989] 4AF..AE92..USA EX.EMISSION CONTROL(USA CALIFORNIA) |
18450-16500 |
US $1,294.38 |
||
|
17410
|
17410
17410-02030
Pipe Assy, Exhaust, Front
[09.1988 - 09.1989] 4AF..AE92 |
17410-02030 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[09.1988 - 09.1992] 4AF#..AE92 |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[09.1988 - 09.1992] 4AF#..AE92 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06047
Gasket, Exhaust Pipe
[09.1988 - 04.1991] 4AF#..AE92 |
90917-06047 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06045 Gasket, Exhaust Pipe[09.1988 - 04.1991] 4AF#..AE92 |
90917-06045 |
from US $1.60 |
||
|
17410Y
|
17410Y
17561-16140
Bolt Or Ring, Exhaust Pipe Front (For Rear)
[09.1988 - 09.1992] 4AF#..AE92 |
17561-16140 |
— | ||
|
17419
|
17419
17409-02010
Pipe, Converter Air Inlet
[09.1988 - 09.1989] 4AF..AE92 |
17409-02010 |
— | ||
|
17420
|
17420
17420-01030
Pipe Assy, Exhaust, Center
[09.1988 - 09.1989] 4AF..AE92..USA EX.EMISSION CONTROL(USA CALIFORNIA) |
17420-01030 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-01031
Pipe Assy, Exhaust, Center
[09.1988 - 09.1989] 4AF..AE92..USA EX.EMISSION CONTROL(USA CALIFORNIA) |
17420-01031 |
— | ||
|
17420
|
17420
17420-02020
Pipe Assy, Exhaust, Center
[09.1988 - 09.1989] 4AF..AE92 |
17420-02020 |
— | ||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[09.1988 - 09.1992] 4AF#..AE92 |
90917-06039 |
from US $2.26 |
||
|
17430
|
17430
17430-01040
Pipe Assy, Exhaust, Tail
[09.1988 - 06.1990] 4AF#..AE92..USA COLD SPEC |
17430-01040 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-01041
Pipe Assy, Exhaust, Tail
[09.1988 - 06.1990] 4AF#..AE92..USA COLD SPEC |
17430-01041 |
— | ||
|
17430
|
17430
17430-02040
Pipe Assy, Exhaust, Tail
[09.1988 - 06.1990] 4AF#..AE92..USA |
17430-02040 |
— | ||
|
17451
|
17451
90917-06047
Gasket, Exhaust Pipe
[09.1988 - 04.1991] 4AF#..AE92 |
90917-06047 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[09.1988 - 04.1991] 4AF#..AE92 |
90917-06045 |
from US $1.60 |
||
|
17504
|
17504
17504-16010 Bracket Sub-Assy, Catalytic ConverterCATALYTIC CONVERTER [09.1988 - 04.1990] 4AF..AE92; 4AFE..AE92 *86 & *87 |
17504-16010 |
US $18.05 |
||
|
17506A
|
17506A
17506-15050
Bracket Sub-Assy, Exhaust Pipe No.1 Support
[09.1988 - 09.1992] 4AF..AE92; 4AFE..AE92 *86 & *87 |
17506-15050 |
— | ||
|
17507
|
17507
17507-15030
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[09.1988 - 09.1992] 4AF..AE92; 4AFE..AE92 *86 & *87 |
17507-15030 |
— | ||
|
17508
|
17508
17508-15030
Support Sub-Assy, Exhaust Pipe, No.3
[09.1988 - 11.1989] 4AF#..AE92 |
17508-15030 |
— | ||
|
17565A
|
17565A
17565-15050 Support, Exhaust Pipe, No.3[09.1988 - 09.1992] 4AF#..AE92 NO.2,*86 & *87 |
17565-15050 |
US $23.41 |
||
|
17565A
|
17565A
17565-15070 Support, Exhaust Pipe, No.3[09.1988 - 09.1992] 4AF#..AE92 NO.1,*86 & *87 |
17565-15070 |
from US $7.14 |
||
|
17572
|
17572
17572-15050 Bracket, Exhaust Pipe No.1 Support[09.1988 - 10.1989] 4AF#..AE92 |
17572-15050 |
US $22.01 |
||
|
17578
|
17578
17578-15020 Clamp, No.1(For Converter Air Inlet Pipe)PIPE [09.1988 - 09.1989] 4AF..AE92 |
17578-15020 |
US $16.45 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9011708022
|
9011708022
90117-08022 Bolt, U(For Converter Air Inlet Pipe) |
90117-08022 |
US $5.10 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165540818
|
9165540818
91655-40818
New Genuine Part
|
91655-40818 |
— | ||
| replacement | |||||
|
9165540818
|
9165540818
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.37 |
||
