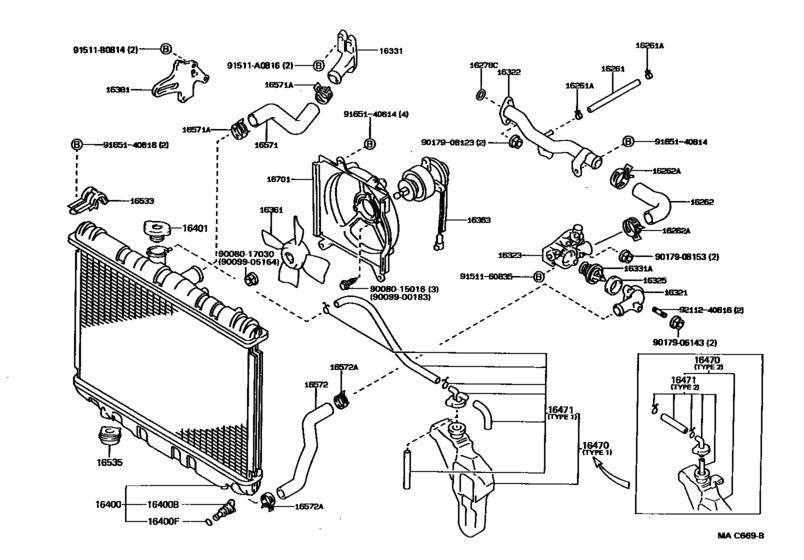

Radiator & Water Outlet ([09.1988 - 09.1989] (8809-8909)) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
99555-10200 Hose, Water By-Pass[09.1988 - 09.1989] 4AF..AE92 *H,L=200 |
99555-10200 |
from US $5.13 |
||
|
16261A
|
16261A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.1988 - 09.1989] 4AF..AE92 |
90467-13001 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[09.1988 - 09.1989] 4AF..AE92 |
96135-51300 |
from US $2.13 |
||
|
16262
|
16262
16262-15030 Hose, Water Inlet[09.1988 - 09.1992] 4AF#..AE92 |
16262-15030 |
from US $21.53 |
||
|
16262A
|
16262A
90467-36001 Clip(For Water Inlet Hose)[09.1988 - 09.1992] 4AF#..AE92 |
90467-36001 |
US $7.46 |
||
|
16278C
|
16278C
96711-24035
Ring, O(For Water Pump)
[09.1988 - 09.1992] 4AF#..AE92 |
96711-24035 |
— | ||
| replacement | |||||
|
16278C
|
16278C
96761-24035 Ring, O(For Water Pump)[09.1988 - 09.1992] 4AF#..AE92 |
96761-24035 |
from US $2.69 |
||
|
16321
|
16321
16321-15020 Inlet, Water[09.1988 - 09.1992] 4AF#..AE92 |
16321-15020 |
US $42.34 |
||
|
16322
|
16322
16322-15020
Pipe, Water Inlet
[09.1988 - 05.1990] 4AF#..AE92 |
16322-15020 |
— | ||
| replacement | |||||
|
16322
|
16322
16322-15040 Pipe, Water Inlet[09.1988 - 05.1990] 4AF#..AE92 |
16322-15040 |
US $101.34 |
||
|
16323
|
16323
16323-15090
Housing, Water Inlet
[09.1988 - 09.1989] 4AF..AE92 |
16323-15090 |
— | ||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[09.1988 - 09.1992] 4AF#..AE92 |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[09.1988 - 09.1992] 4AF#..AE92 |
16325-63011 |
from US $3.88 |
||
|
16331
|
16331
16331-15070
Outlet, Water
[09.1988 - 09.1989] 4AF..AE92..ATM |
16331-15070 |
— | ||
|
16331A
|
16331A
90916-03046 Thermostat[09.1988 - 09.1992] 4AF#..AE92 *WAX 82-95 |
90916-03046 |
from US $22.39 |
||
|
16361
|
16361
16361-01030
Fan
[09.1988 - 09.1992] 4AF#..AE92 |
16361-01030 |
— | ||
|
16363
|
16363
16363-01030
Motor, Cooling Fan
[09.1988 - 09.1992] 4AF#..AE92 |
16363-01030 |
— | ||
|
16381
|
16381
16381-15060 Bar, Fan Belt Adjusting[09.1988 - 09.1992] 4AF#..AE92 |
16381-15060 |
US $32.47 |
||
|
16400
|
16400
16410-01040
Radiator Assy
[09.1988 - 09.1989] 4AF..AE92..3FC *84 |
16410-01040 |
— | ||
|
16400
|
16400
16410-02020
Radiator Assy
[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16410-02020 |
— | ||
|
16400B
|
16400B
23322-01010
Plug, Radiator Drain Cock
[09.1988 - 09.1992] 4AF..AE92;4AFE..AE92..3FC,5F *84 |
23322-01010 |
— | ||
|
16400B
|
16400B
90080-34002
Plug, Radiator Drain Cock
[09.1988 - 09.1992] 4AFE..AE92..4FC; 4AF..AE92;4AFE..AE92..3FC,5F *85 |
90080-34002 |
— | ||
|
16400F
|
16400F
90080-30011
Packing(For Radiator Drain Cock)
[09.1988 - 09.1992] 4AF#..AE92 |
90080-30011 |
— | ||
|
16401
|
16401
16401-16010 Cap Sub-Assy, Radiator[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F; 4AF..AE92..4FC;4AFE..AE92..ATM *84 |
16401-16010 |
US $18.20 |
||
|
16470
|
16470
16470-01020
Tank Assy, Radiator Reserve
[09.1988 - 09.1992] 4AF#..AE92 TYPE 1 *84 |
16470-01020 |
— | ||
|
16470
|
16470
16470-02010
Tank Assy, Radiator Reserve
[09.1988 - 09.1992] 4AF#..AE92 TYPE 2 *85 |
16470-02010 |
— | ||
|
16471
|
16471
16405-01020
Cap Sub-Assy, Reserve Tank
[09.1988 - 09.1992] 4AF#..AE92 TYPE 1 *84 |
16405-01020 |
— | ||
|
16471
|
16471
16405-02010
Cap Sub-Assy, Reserve Tank
[09.1988 - 09.1992] 4AF#..AE92 TYPE 2 *85 |
16405-02010 |
— | ||
|
16533
|
16533
16533-15090
Support, Radiator, Upper
[09.1988 - 09.1990] 4AF#..AE92 |
16533-15090 |
— | ||
|
16535
|
16535
16535-01020
Support, Radiator, Lower
[09.1988 - 09.1992] 4AF..AE92;4AFE..AE92..3FC,5F *84 |
16535-01020 |
— | ||
|
16535
|
16535
16535-15020 Support, Radiator, Lower[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16535-15020 |
US $71.97 |
||
|
16571
|
16571
16571-01030
Hose, Radiator, Inlet
[09.1988 - 09.1992] 4AF#..AE92 *84 |
16571-01030 |
— | ||
|
16571
|
16571
16571-02020
Hose, Radiator, Inlet
[09.1988 - 09.1992] 4AF#..AE92 *85 |
16571-02020 |
— | ||
|
16571A
|
16571A
90467-34003
Clip(For Oil Return Hose)
[09.1988 - 09.1992] 4AF#..AE92 |
90467-34003 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1988 - 09.1992] 4AF#..AE92 |
90467-34004 |
from US $3.43 |
||
|
16572
|
16572
16572-01030
Hose, Radiator, Outlet
[09.1988 - 09.1992] 4AF#..AE92 *84 |
16572-01030 |
— | ||
|
16572
|
16572
16572-02010 Hose, Radiator, Outlet[09.1988 - 09.1992] 4AF#..AE92 *85 |
16572-02010 |
US $18.35 |
||
|
16572A
|
16572A
90467-34003
Clip(For Oil Return Hose)
[09.1988 - 09.1992] 4AF#..AE92 |
90467-34003 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.1988 - 09.1992] 4AF#..AE92 |
90467-34004 |
from US $3.43 |
||
|
16701
|
16701
16711-01030
Shroud Sub-Assy, Fan
[09.1988 - 09.1992] 4AF#..AE92 |
16711-01030 |
— | ||
|
91511A0816
|
91511A0816
91511-A0816 New Genuine Part |
91511-A0816 |
US $1.89 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.79 |
||
|
9008015016
|
9008015016
90080-15016
New Genuine Part
|
90080-15016 |
— | ||
|
9008017030
|
9008017030
90080-17030
New Genuine Part
|
90080-17030 |
— | ||
|
9009900183
|
9009900183
90099-00183
New Genuine Part
|
90099-00183 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9211240616
|
9211240616
92112-40616
Bolt, Stud(For Cold Start Injector)
|
92112-40616 |
— | ||
