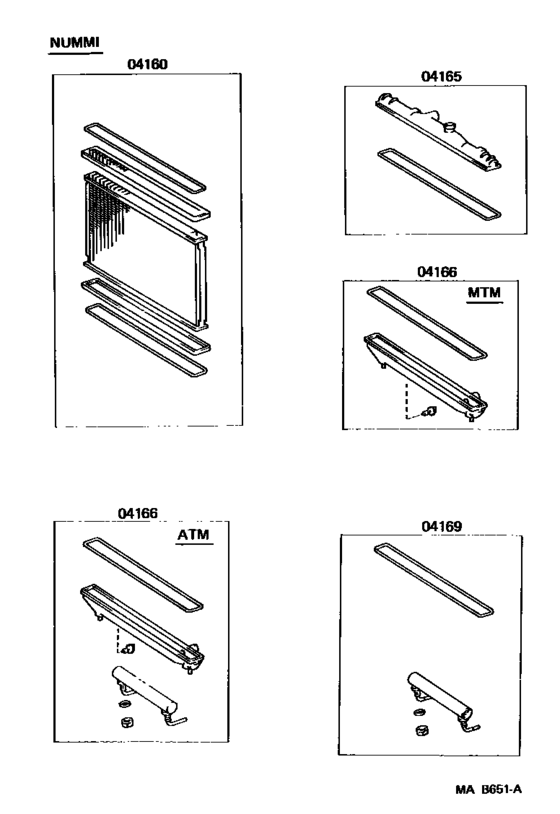

Radiator & Water Outlet ([09.1988 - ] (8809- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04160
|
04160
04160-01021
Core Kit, Radiator
[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *84 |
04160-01021 |
— | ||
|
04160
|
04160
04160-02010
Core Kit, Radiator
[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
04160-02010 |
— | ||
| replacements | |||||
|
04160
|
04160
16403-74180 Core Sub-Assy, Radiator[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16403-74180 |
US $246.06 |
||
|
04160
|
04160
16442-63030 Ring, O(For Radiator Upper Tank)[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16442-63030 |
US $13.10 |
||
|
04160
|
04160
16443-15321 Plate, Radiator Tank, Lock, Upper[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16443-15321 |
US $10.92 |
||
|
04160
|
04160
16462-63030 Ring, O(For Radiator Upper Tank)[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16462-63030 |
US $13.10 |
||
|
04160
|
04160
16463-15320 Plate, Radiator Tank, Lock, Upper[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16463-15320 |
US $10.92 |
||
|
04165
|
04165
04165-01020
Tank Kit, Radiator, Upper
[09.1988 - 09.1992] 4AF..AE92;4AFE..AE92..3FC,5F *84 |
04165-01020 |
— | ||
|
04165
|
04165
04165-02010
Tank Kit, Radiator, Upper
[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
04165-02010 |
— | ||
| replacements | |||||
|
04165
|
04165
16441-16200 Tank, Radiator, Upper[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16441-16200 |
US $36.40 |
||
|
04165
|
04165
16442-63030 Ring, O(For Radiator Upper Tank)[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16442-63030 |
US $13.10 |
||
|
04165
|
04165
16443-15321 Plate, Radiator Tank, Lock, Upper[09.1988 - 09.1992] 4AFE..AE92..5F;4AF..AE92..3FC,5F *85 |
16443-15321 |
US $10.92 |
||
|
04166
|
04166
04166-01070
Tank Kit, Radiator, Lower
[09.1988 - 09.1989] 4AF..AE92..ATM *84 |
04166-01070 |
— | ||
|
04166
|
04166
04166-02020
Tank Kit, Radiator, Lower
[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
04166-02020 |
— | ||
| replacements | |||||
|
04166
|
04166
16461-16200 Tank, Radiator, Lower[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16461-16200 |
US $36.40 |
||
|
04166
|
04166
16462-63030 Ring, O(For Radiator Upper Tank)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16462-63030 |
US $13.10 |
||
|
04166
|
04166
16463-15320 Plate, Radiator Tank, Lock, Upper[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16463-15320 |
US $10.92 |
||
|
04166
|
04166
16492-62060 Ring, O(For Atm Oil Cooler)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16492-62060 |
US $8.01 |
||
|
04166
|
04166
16496-15130 Nut(For Atm Oil Cooler)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16496-15130 |
US $11.79 |
||
|
04166
|
04166
23322-54010 Plug,air(For Oil Cooler Drain Cock)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
23322-54010 |
from US $4.86 |
||
|
04166
|
04166
96711-19007 Packing(For Radiator Drain Cock)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
96711-19007 |
from US $2.24 |
||
|
04169
|
04169
04169-01020
Cooler Kit, Oil(For Atm)
[09.1988 - 09.1992] 4AF..AE92..ATM;4AFE..AE92..3FC *84 |
04169-01020 |
— | ||
|
04169
|
04169
04169-02010
Cooler Kit, Oil(For Atm)
[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
04169-02010 |
— | ||
| replacements | |||||
|
04169
|
04169
16491-16240 Cooler, Oil(For Atm)OIL(FOR ATM) [09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16491-16240 |
US $148.51 |
||
|
04169
|
04169
16462-63030 Ring, O(For Radiator Upper Tank)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16462-63030 |
US $13.10 |
||
|
04169
|
04169
16463-15320 Plate, Radiator Tank, Lock, Upper[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16463-15320 |
US $10.92 |
||
|
04169
|
04169
16492-62060 Ring, O(For Atm Oil Cooler)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16492-62060 |
US $8.01 |
||
|
04169
|
04169
16493-15130 Washer, Plate(For Atm Oil Cooler)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16493-15130 |
US $4.08 |
||
|
04169
|
04169
16494-15130 Washer, Spring(For Atm Oil Cooler)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16494-15130 |
US $4.08 |
||
|
04169
|
04169
16496-15130 Nut(For Atm Oil Cooler)[09.1988 - 09.1989] 4AF..AE92..3FC *85 |
16496-15130 |
US $11.79 |
||
