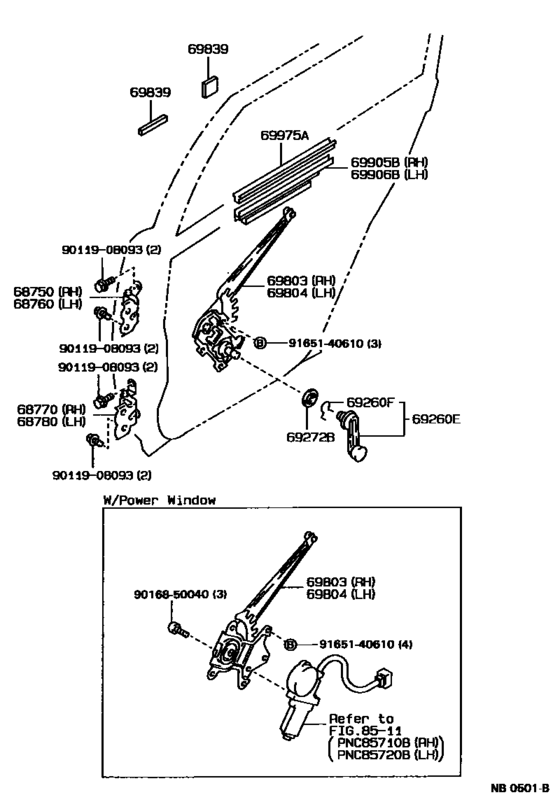

Rear Door Window Regulator & Hinge ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-12050 Hinge Assy, Rear Door, Upper Rh[09.1988 - 09.1992] AE92 |
68750-12050 |
US $40.91 |
||
|
68760
|
68760
68760-12050 Hinge Assy, Rear Door, Upper Lh[09.1988 - 09.1992] AE92 |
68760-12050 |
US $40.91 |
||
|
68770
|
68770
68770-12060 Hinge Assy, Rear Door, Lower Rh[09.1988 - 09.1992] AE92 |
68770-12060 |
US $40.91 |
||
| replacement | |||||
|
68770
|
68770
68770-16030 Hinge Assy, Rear Door, Lower Rh[09.1988 - 09.1992] AE92 |
68770-16030 |
US $44.41 |
||
|
68780
|
68780
68780-12050 Hinge Assy, Rear Door, Lower Lh[09.1988 - 09.1992] AE92 |
68780-12050 |
US $40.91 |
||
| replacement | |||||
|
68780
|
68780
68780-16030 Hinge Assy, Rear Door, Lower Lh[09.1988 - 09.1992] AE92 |
68780-16030 |
US $44.41 |
||
|
69260E
|
69260E
69260-01020-B1 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [09.1988 - 08.1989] AE92..DX DARK SMOKE GRAY,TRIM1# |
69260-01020-B1 |
US $13.54 |
||
|
69260E
|
69260E
69260-01020-D0 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [09.1988 - 08.1989] AE92..DX MAROON,MAROON,TRIM3# |
69260-01020-D0 |
US $13.54 |
||
|
69260E
|
69260E
69260-01020-E0 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [09.1988 - 08.1989] AE92..DX DARK BEIGE,DARK BEIGE,TRIM4# |
69260-01020-E0 |
US $13.54 |
||
|
69260E
|
69260E
69260-01020-J0 Handle Assy, Front Door Window Regulator[09.1988 - 08.1989] AE92..DX DARK BLUE,TRIM8# |
69260-01020-J0 |
US $13.54 |
||
|
69260F
|
69260F
90080-52001
Ring, Shaft Snap(For Front Door Window Regulator Handle)
[09.1988 - 09.1992] AE92..DX,STD |
90080-52001 |
— | ||
|
69272B
|
69272B
69268-01020
Plate, Front Door Regulator Inside Handle
[08.1989 - 09.1992] AE92..DX,STD |
69268-01020 |
— | ||
|
69272B
|
69272B
69268-16010
Plate, Window Regulator Handle
[09.1988 - 09.1992] AE92..DX,STD |
69268-16010 |
— | ||
| replacement | |||||
|
69272B
|
69272B
69285-22010-08 Escutcheon, Window Regulator Handle[09.1988 - 09.1992] AE92..DX,STD |
69285-22010-08 |
from US $1.76 |
||
|
69803
|
69803
69830-12130 Regulator Sub-Assy, Rear Door Window, Rh[09.1988 - 09.1992] AE92 |
69830-12130 |
US $90.27 |
||
|
69804
|
69804
69840-12130 Regulator Sub-Assy, Rear Door Window, Lh[09.1988 - 09.1992] AE92 |
69840-12130 |
US $90.27 |
||
|
69905B
|
69905B
69905-01020
Channel Sub-Assy, Rear Door Glass, Rh
[09.1988 - 09.1992] AE92 |
69905-01020 |
— | ||
|
69906B
|
69906B
69906-01020
Channel Sub-Assy, Rear Door Glass, Lh
[09.1988 - 09.1992] AE92 |
69906-01020 |
— | ||
|
69975A
|
69975A
69975-01010
Filler, Rear Door Glass Channel
[09.1988 - 09.1992] AE92 |
69975-01010 |
— | ||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.23 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
