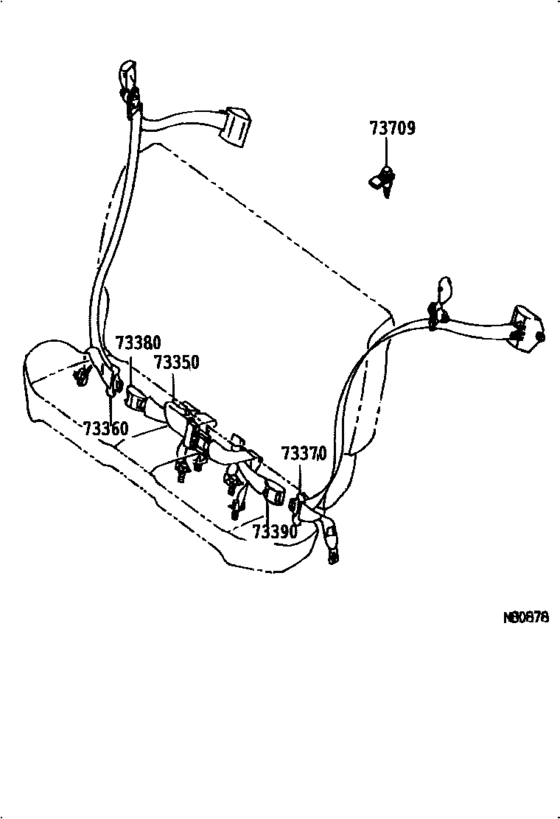

Seat Belt & Child Restraint Seat ([09.1988 - ] (8809- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73350
|
73350
73350-01020-B1
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*84 |
73350-01020-B1 |
— | ||
|
73350
|
73350
73350-01020-D0
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*84 |
73350-01020-D0 |
— | ||
|
73350
|
73350
73350-01020-E2
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*84 |
73350-01020-E2 |
— | ||
|
73350
|
73350
73350-01020-J1
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*84 |
73350-01020-J1 |
— | ||
|
73350
|
73350
73350-02020-B1
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*85 |
73350-02020-B1 |
— | ||
|
73350
|
73350
73350-02020-D0
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*85 |
73350-02020-D0 |
— | ||
|
73350
|
73350
73350-02020-E0
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73350-02020-E0 |
— | ||
|
73350
|
73350
73350-02020-J0
Belt Assy, Rear Seat Lap Type, Center
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*85 |
73350-02020-J0 |
— | ||
|
73360
|
73360
73360-02040-B1
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*85 |
73360-02040-B1 |
— | ||
|
73360
|
73360
73360-02040-D0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 08.1991] AE92 MAROON,TRIM3#,*85 |
73360-02040-D0 |
— | ||
|
73360
|
73360
73360-02040-E0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73360-02040-E0 |
— | ||
|
73360
|
73360
73360-02040-J0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 08.1991] AE92 DARK BLUE,TRIM8#,*85 |
73360-02040-J0 |
— | ||
|
73360
|
73360
73360-02050-B1
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*84 |
73360-02050-B1 |
— | ||
|
73360
|
73360
73360-02050-D0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*84 |
73360-02050-D0 |
— | ||
|
73360
|
73360
73360-02050-E0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*84 |
73360-02050-E0 |
— | ||
|
73360
|
73360
73360-02050-J0
Belt Assy, Rear Seat 3 Point Type, Outer Rh
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*84 |
73360-02050-J0 |
— | ||
|
73370
|
73370
73370-02040-B1
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*85 |
73370-02040-B1 |
— | ||
|
73370
|
73370
73370-02040-D0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 08.1991] AE92 MAROON,TRIM3#,*85 |
73370-02040-D0 |
— | ||
|
73370
|
73370
73370-02040-E0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73370-02040-E0 |
— | ||
|
73370
|
73370
73370-02040-J0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 08.1991] AE92 DARK BLUE,TRIM8#,*85 |
73370-02040-J0 |
— | ||
|
73370
|
73370
73370-02050-B1
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*84 |
73370-02050-B1 |
— | ||
|
73370
|
73370
73370-02050-D0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*84 |
73370-02050-D0 |
— | ||
|
73370
|
73370
73370-02050-E0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*84 |
73370-02050-E0 |
— | ||
|
73370
|
73370
73370-02050-J0
Belt Assy, Rear Seat 3 Point Type, Outer Lh
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*84 |
73370-02050-J0 |
— | ||
|
73380
|
73380
73380-01020-B1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*84 |
73380-01020-B1 |
— | ||
|
73380
|
73380
73380-01020-D0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*84 |
73380-01020-D0 |
— | ||
|
73380
|
73380
73380-01020-E2
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*84 |
73380-01020-E2 |
— | ||
|
73380
|
73380
73380-01020-J1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*84 |
73380-01020-J1 |
— | ||
|
73380
|
73380
73380-02010-B1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*85 |
73380-02010-B1 |
— | ||
|
73380
|
73380
73380-02010-D0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*85 |
73380-02010-D0 |
— | ||
|
73380
|
73380
73380-02010-E0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73380-02010-E0 |
— | ||
| replacement | |||||
|
73380
|
73380
73380-02010-B1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73380-02010-B1 |
— | ||
|
73380
|
73380
73380-02010-J0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*85 |
73380-02010-J0 |
— | ||
|
73390
|
73390
73380-01020-B1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*84 |
73380-01020-B1 |
— | ||
|
73390
|
73390
73380-01020-D0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*84 |
73380-01020-D0 |
— | ||
|
73390
|
73390
73380-01020-E2
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*84 |
73380-01020-E2 |
— | ||
|
73390
|
73390
73380-01020-J1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*84 |
73380-01020-J1 |
— | ||
|
73390
|
73390
73380-02010-B1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1990] AE92 DARK SMOKE GRAY,TRIM1#,*85 |
73380-02010-B1 |
— | ||
|
73390
|
73390
73380-02010-D0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 MAROON,TRIM3#,*85 |
73380-02010-D0 |
— | ||
|
73390
|
73390
73380-02010-E0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73380-02010-E0 |
— | ||
| replacement | |||||
|
73390
|
73390
73380-02010-B1
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1989] AE92 DARK BEIGE,TRIM4#,*85 |
73380-02010-B1 |
— | ||
|
73390
|
73390
73380-02010-J0
Belt Assy, Rear Seat 3 Point Type, Inner, Rh
[09.1988 - 09.1992] AE92 DARK BLUE,TRIM8#,*85 |
73380-02010-J0 |
— | ||
