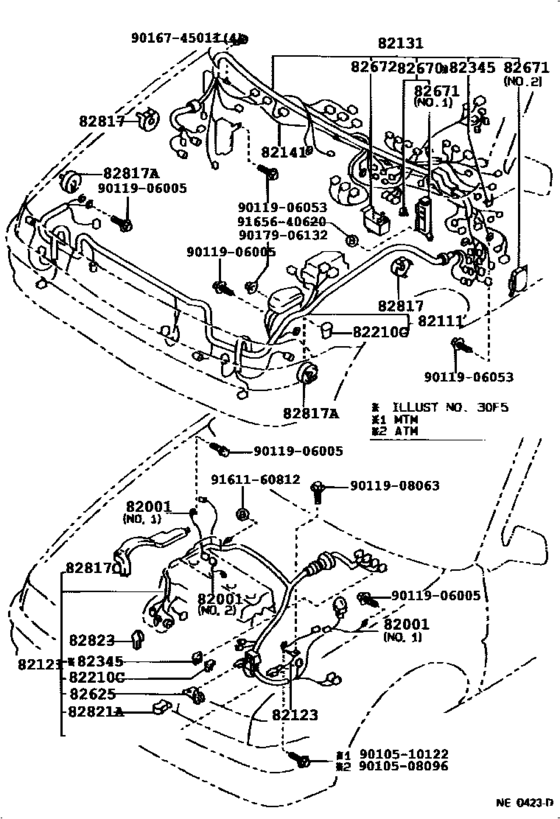

Wiring & Clamp ([08.1987 - 09.1989] (8708-8909)) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[09.1988 - 09.1992] AE92 NO.1 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07299 Cable, Bond, No.1[09.1988 - 09.1992] AE92 NO.2 |
90980-07299 |
US $6.46 |
||
|
82111
|
82111
82111-02030
Wire, Engine Room Main
[09.1988 - 09.1989] AE92..USA |
82111-02030 |
— | ||
|
82111
|
82111
82111-02040
Wire, Engine Room Main
[09.1988 - 09.1989] AE92..USA W(CRUISE CONTROL) |
82111-02040 |
— | ||
|
82121
|
82121
82121-02040
Wire, Engine
[09.1988 - 09.1989] AE92..ATM..USA |
82121-02040 |
— | ||
|
82121
|
82121
82121-02060
Wire, Engine
[09.1988 - 09.1989] AE92..ATM..USA CALIFORNIA SPEC |
82121-02060 |
— | ||
|
82123
|
82123
82123-01030
Wire, Engine, No.3
[09.1988 - 09.1992] AE92..3FC..USA..CBR; AE92..3FC..EFI *84 |
82123-01030 |
— | ||
|
82131
|
82131
82131-02070
Wire, Cowl
[09.1988 - 08.1989] AE92..DX..USA |
82131-02070 |
— | ||
|
82131
|
82131
82131-02080
Wire, Cowl
[09.1988 - 09.1989] AE92..LE..USA; AE92..DX..USA CALIFORNIA SPEC |
82131-02080 |
— | ||
|
82131
|
82131
82131-02090
Wire, Cowl
[09.1988 - 09.1989] AE92..USA W(CRUISE CONTROL) |
82131-02090 |
— | ||
|
82131
|
82131
82131-02160
Wire, Cowl
[08.1989 - 09.1990] AE92..(DX,STD)..USA *85 |
82131-02160 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[09.1988 - 09.1992] AE92 30A,TERMINAL:FEMALE |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[09.1988 - 09.1992] AE92 30A,TERMINAL:MALE |
90982-08223 |
US $11.36 |
||
|
82210C
|
82210C
90982-08253
Fusible Link
[12.1988 - 12.1989] AE92 80A,TERMINAL:MALE |
90982-08253 |
— | ||
| replacement | |||||
|
82210C
|
82210C
90982-08203 Fusible Link[12.1988 - 12.1989] AE92 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82345
|
82345
82345-12050 Diode[09.1988 - 08.1990] AE92 NO.4 |
82345-12050 |
US $12.64 |
||
|
82345
|
82345
82345-20040 Diode[09.1988 - 09.1990] AE92 NO.5 |
82345-20040 |
US $12.06 |
||
|
82345
|
82345
82345-20050 Diode[09.1988 - 09.1992] AE92..ATM NO.6 |
82345-20050 |
US $12.06 |
||
|
82625
|
82625
82625-12020 Terminal, Fusible Link[09.1988 - 09.1992] AE92 |
82625-12020 |
US $18.05 |
||
|
82670
|
82670
82670-12090 Block Assy, Junction, No.1[08.1989 - 09.1989] AE92..DX..USA |
82670-12090 |
US $174.72 |
||
|
82671
|
82671
82671-12030 Block, Junction[09.1988 - 09.1990] AE92 NO.1 |
82671-12030 |
US $174.72 |
||
|
82671
|
82671
82671-12070 Block, Junction[09.1988 - 09.1990] AE92 NO.2 |
82671-12070 |
US $23.88 |
||
|
82672
|
82672
82672-12110 Cover, Junktion BlockJUNKTION BLOCK [09.1988 - 06.1989] AE92 |
82672-12110 |
US $15.58 |
||
|
82672
|
82672
82672-12111 Cover, Junktion BlockJUNKTION BLOCK [06.1989 - 09.1992] AE92 |
82672-12111 |
US $16.60 |
||
|
82817
|
82817
82817-01140
Protector, Wiring Harness, No.1
[05.1989 - 09.1992] AE92 *86 |
82817-01140 |
— | ||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[09.1988 - 05.1989] AE92 |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-01160
Protector, Wiring Harness, No.2
[05.1989 - 09.1992] AE92 *86 |
82817-01160 |
— | ||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[09.1988 - 09.1992] AE92 |
82817-32010 |
— | ||
|
82817C
|
82817C
82817-12700
Protector, Wiring Harness, No.4
[09.1988 - 09.1992] AE92..USA;AE92..CND..EFI |
82817-12700 |
— | ||
|
82821A
|
82821A
82821-12230 Cover, Connector[09.1988 - 09.1992] AE92 NO.2 |
82821-12230 |
US $8.30 |
||
|
82821A
|
82821A
82821-12260 Cover, Connector(For Battery Terminal)[09.1988 - 09.1992] AE92 NO.1 |
82821-12260 |
US $7.72 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[09.1988 - 09.1992] AE92..CBR; AE92..EFI *86 & *87 |
82823-22050 |
from US $4.13 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
