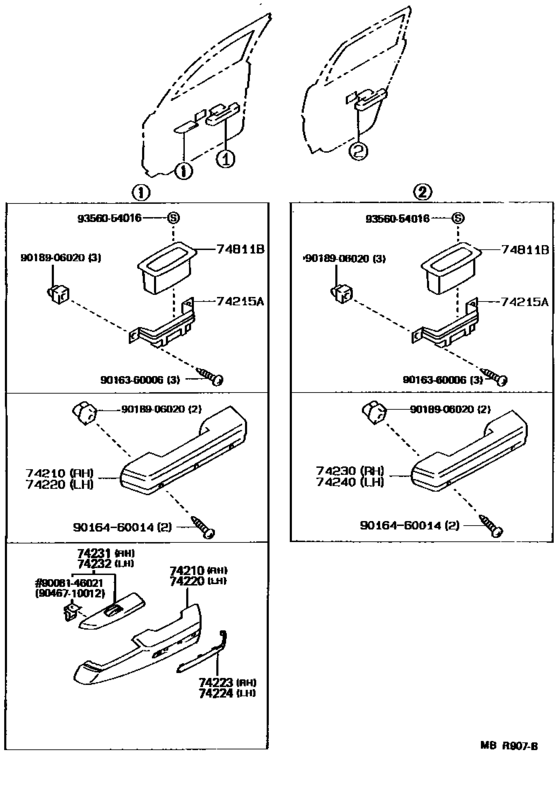

Armrest & Visor ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74210
|
74210
74210-02030-B1
Armrest Assy, Front, Rh
[09.1988 - 09.1990] AE92..(DX,STD)..EFI DARK SMOKE GRAY,TRIM1#,*86; AE92..DX..CBR DARK SMOKE GRAY,TRIM1# |
74210-02030-B1 |
— | ||
|
74210
|
74210
74210-02030-D0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI MAROON,TRIM3#,*86; AE92..DX..CBR MAROON,TRIM3# |
74210-02030-D0 |
— | ||
|
74210
|
74210
74210-02030-E0
Armrest Assy, Front, Rh
[09.1988 - 09.1989] AE92..DX DARK BEIGE,TRIM4# |
74210-02030-E0 |
— | ||
|
74210
|
74210
74210-02030-J0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI DARK BLUE,TRIM8#,*86; AE92..DX..CBR DARK BLUE,TRIM8# |
74210-02030-J0 |
— | ||
|
74220
|
74220
74210-02030-B1
Armrest Assy, Front, Rh
[09.1988 - 09.1990] AE92..(DX,STD)..EFI DARK SMOKE GRAY,TRIM1#,*86; AE92..DX..CBR DARK SMOKE GRAY,TRIM1# |
74210-02030-B1 |
— | ||
|
74220
|
74220
74210-02030-D0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI MAROON,TRIM3#,*86; AE92..DX..CBR MAROON,TRIM3# |
74210-02030-D0 |
— | ||
|
74220
|
74220
74210-02030-E0
Armrest Assy, Front, Rh
[09.1988 - 09.1989] AE92..DX DARK BEIGE,TRIM4# |
74210-02030-E0 |
— | ||
|
74220
|
74220
74210-02030-J0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI DARK BLUE,TRIM8#,*86; AE92..DX..CBR DARK BLUE,TRIM8# |
74210-02030-J0 |
— | ||
|
74230
|
74230
74210-02030-B1
Armrest Assy, Front, Rh
[09.1988 - 09.1990] AE92..(DX,STD)..EFI DARK SMOKE GRAY,TRIM1#,*86; AE92..DX..CBR DARK SMOKE GRAY,TRIM1# |
74210-02030-B1 |
— | ||
|
74230
|
74230
74210-02030-D0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI MAROON,TRIM3#,*86; AE92..DX..CBR MAROON,TRIM3# |
74210-02030-D0 |
— | ||
|
74230
|
74230
74210-02030-E0
Armrest Assy, Front, Rh
[09.1988 - 09.1989] AE92..DX DARK BEIGE,TRIM4# |
74210-02030-E0 |
— | ||
|
74230
|
74230
74210-02030-J0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI DARK BLUE,TRIM8#,*86; AE92..DX..CBR DARK BLUE,TRIM8# |
74210-02030-J0 |
— | ||
|
74240
|
74240
74210-02030-B1
Armrest Assy, Front, Rh
[09.1988 - 09.1990] AE92..(DX,STD)..EFI DARK SMOKE GRAY,TRIM1#,*86; AE92..DX..CBR DARK SMOKE GRAY,TRIM1# |
74210-02030-B1 |
— | ||
|
74240
|
74240
74210-02030-D0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI MAROON,TRIM3#,*86; AE92..DX..CBR MAROON,TRIM3# |
74210-02030-D0 |
— | ||
|
74240
|
74240
74210-02030-E0
Armrest Assy, Front, Rh
[09.1988 - 09.1989] AE92..DX DARK BEIGE,TRIM4# |
74210-02030-E0 |
— | ||
|
74240
|
74240
74210-02030-J0
Armrest Assy, Front, Rh
[09.1988 - 09.1992] AE92..(DX,STD)..EFI DARK BLUE,TRIM8#,*86; AE92..DX..CBR DARK BLUE,TRIM8# |
74210-02030-J0 |
— | ||
|
9008146021
|
9008146021
90081-46021
New Genuine Part
|
90081-46021 |
— | ||
|
9016360006
|
9016360006
90163-60006 New Genuine Part |
90163-60006 |
US $1.60 |
||
|
9016460014
|
9016460014
90164-60014 SCREW |
90164-60014 |
US $2.15 |
||
|
9018906020
|
9018906020
90189-06020 New Genuine Part |
90189-06020 |
US $1.93 |
||
|
9046710012
|
9046710012
90467-10012 CLIP |
90467-10012 |
from US $0.98 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $1.08 |
