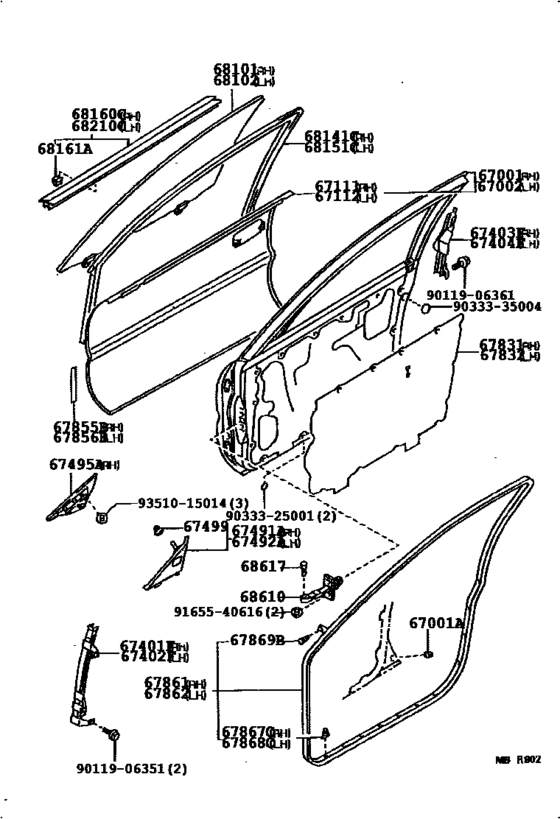

Front Door Panel & Glass ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-02020
Panel Sub-Assy, Front Door, Rh
[09.1988 - 09.1989] AE92 |
67001-02020 |
— | ||
|
67001A
|
67001A
90541-09035 Cushion(For Luggage Compartment Door Panel)[09.1988 - 09.1992] AE92 |
90541-09035 |
from US $1.58 |
||
|
67002
|
67002
67002-02020
Panel Sub-Assy, Front Door, Lh
[09.1988 - 09.1989] AE92 |
67002-02020 |
— | ||
|
67111
|
67111
67111-02020
Panel, Front Door, Outer Rh
[09.1988 - 09.1992] AE92 |
67111-02020 |
— | ||
|
67112
|
67112
67112-02020
Panel, Front Door, Outer Lh
[09.1988 - 09.1992] AE92 |
67112-02020 |
— | ||
|
67401F
|
67401F
67401-12290 Frame Sub-Assy, Front Door, Front Lower Rh[09.1988 - 09.1992] AE92 |
67401-12290 |
US $32.32 |
||
|
67402F
|
67402F
67402-12310 Frame Sub-Assy, Front Door, Front Lower Lh[09.1988 - 09.1992] AE92 |
67402-12310 |
US $32.32 |
||
|
67403F
|
67403F
67403-12100 Frame Sub-Assy, Front Door, Rear Lower Rh[09.1988 - 09.1992] AE92 |
67403-12100 |
US $34.80 |
||
|
67404F
|
67404F
67404-12100 Frame Sub-Assy, Front Door, Rear Lower Lh[09.1988 - 09.1992] AE92 |
67404-12100 |
US $34.80 |
||
|
67499
|
67499
67499-12030 Retainer, Front Door Lower Frame Bracket Garnish[09.1988 - 01.1990] AE92 |
67499-12030 |
US $4.66 |
||
|
67831
|
67831
67831-12350
Cover, Front Door Service Hole, Rh
[09.1988 - 09.1992] AE92 |
67831-12350 |
— | ||
|
67832
|
67832
67831-12350
Cover, Front Door Service Hole, Rh
[09.1988 - 09.1992] AE92 |
67831-12350 |
— | ||
|
67861
|
67861
67861-02020
Weatherstrip, Front Door, Rh
[09.1988 - 09.1992] AE92..CBR;AE92..CND..EFI *85 |
67861-02020 |
— | ||
|
67861
|
67861
67861-02030
Weatherstrip, Front Door, Rh
[09.1988 - 09.1992] AE92..CBR;AE92..CND..EFI *84 |
67861-02030 |
— | ||
|
67861
|
67861
67861-12710 Weatherstrip, Front Door, Rh[11.1988 - 09.1992] AE92..CBR;AE92..CND..EFI *86 & *87 |
67861-12710 |
US $84.45 |
||
|
67862
|
67862
67862-02020
Weatherstrip, Front Door, Lh
[09.1988 - 09.1992] AE92..CBR;AE92..CND..EFI *85 |
67862-02020 |
— | ||
|
67862
|
67862
67862-02030
Weatherstrip, Front Door, Lh
[09.1988 - 09.1992] AE92..CBR;AE92..CND..EFI *84 |
67862-02030 |
— | ||
|
67867C
|
67867C
67867-01020
Retainer, Front Door Weatherstrip, Rh
[09.1988 - 09.1992] AE92 *84 |
67867-01020 |
— | ||
|
67867C
|
67867C
67868-02030
Retainer, Front Door Weatherstrip, Rh
[09.1988 - 09.1992] AE92 |
67868-02030 |
— | ||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[11.1988 - 09.1992] AE92 *87 |
67868-12050 |
from US $2.61 |
||
|
67868C
|
67868C
67868-01020
Retainer, Front Door Weatherstrip, Rh
[09.1988 - 09.1992] AE92 *84 |
67868-01020 |
— | ||
|
67868C
|
67868C
67868-02010
Retainer, Front Door Weatherstrip, Lh
[09.1988 - 12.1990] AE92 *85 |
67868-02010 |
— | ||
|
67868C
|
67868C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[11.1988 - 09.1992] AE92 *87 |
67868-12050 |
from US $2.61 |
||
|
67869B
|
67869B
67869-01010
Clip, Front Door Weatherstrip
[09.1988 - 09.1992] AE92 *84 |
67869-01010 |
— | ||
|
67869B
|
67869B
67869-02010
Retainer, Rh(For Front Door No.2 Weatherstrip)
[09.1988 - 09.1992] AE92 *85 |
67869-02010 |
— | ||
|
67869B
|
67869B
67869-12020 Clip, Door Glass Weatherstrip(For Front Door)[11.1988 - 09.1992] AE92..CBR;AE92..CND..EFI *87 |
67869-12020 |
US $2.62 |
||
|
68101
|
68101
68101-02020
Glass Sub-Assy, Front Door, Rh
[09.1988 - 09.1992] AE92 *TT,T=3.5 |
68101-02020 |
— | ||
|
68102
|
68102
68102-02020
Glass Sub-Assy, Front Door, Lh
[09.1988 - 09.1992] AE92 *TT,T=3.5 |
68102-02020 |
— | ||
|
68141C
|
68141C
68141-02020
Run, Front Door Glass, Rh
[09.1988 - 09.1992] AE92 |
68141-02020 |
— | ||
|
68151C
|
68151C
68151-02010
Run, Front Door Glass, Lh
[09.1988 - 09.1992] AE92 |
68151-02010 |
— | ||
|
68160C
|
68160C
68160-02030
Weatherstrip Assy, Front Door Glass, Outer Rh
[09.1988 - 09.1990] AE92..DX,STD |
68160-02030 |
— | ||
|
68161A
|
68161A
68211-02030
Clip(For Front Door Glass Outer Weatherstrip)
[09.1988 - 09.1990] AE92..DX,STD RH |
68211-02030 |
— | ||
|
68161A
|
68161A
68212-02010
Clip(For Front Door Glass Outer Weatherstrip)
[09.1988 - 09.1990] AE92..DX,STD LH |
68212-02010 |
— | ||
|
68210C
|
68210C
68210-02010
Weatherstrip Assy, Front Door Glass, Outer Lh
[09.1988 - 09.1990] AE92..DX,STD |
68210-02010 |
— | ||
|
68610
|
68610
68610-12050
Check Assy, Front Door
[09.1988 - 08.1990] AE92 |
68610-12050 |
— | ||
|
68617
|
68617
68617-22020 Pin(For Front Door Check)[09.1988 - 11.1990] AE92 |
68617-22020 |
US $3.93 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.96 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
