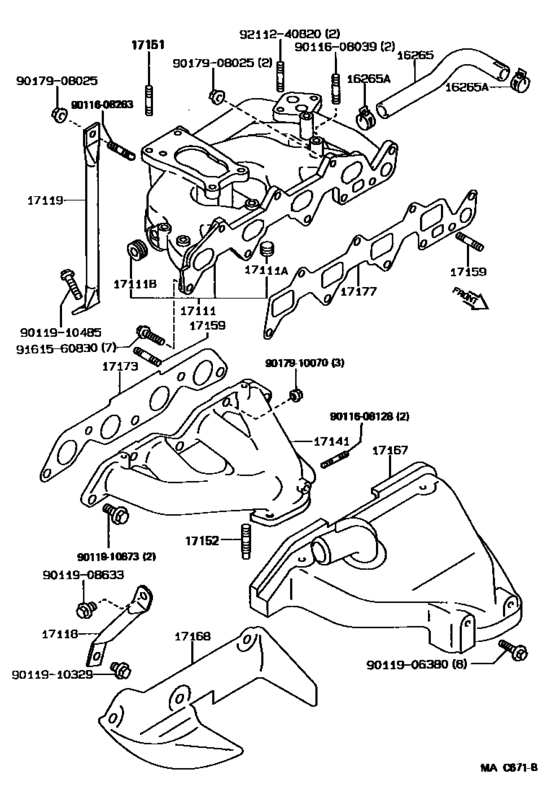

Manifold ([08.1987 - 09.1989] (8708-8909)) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
16265-15020
Hose, Intake Manifold Water
[09.1988 - 09.1989] 4AF..AE92 |
16265-15020 |
— | ||
|
16265A
|
16265A
90467-21006 Clip(For Ventilation Hose No.2)[09.1988 - 09.1989] 4AF..AE92 |
90467-21006 |
US $2.87 |
||
|
17111
|
17111
17101-16070 Manifold, IntakeINTAKE [09.1988 - 09.1989] 4AF..AE92 |
17101-16070 |
US $349.44 |
||
|
17111A
|
17111A
90344-53011 Plug, W/head Taper Screw, No.1[09.1988 - 09.1989] 4AF..AE92 |
90344-53011 |
US $4.30 |
||
|
17111B
|
17111B
90344-54003 Plug, Tight, No.2(For Cylinder Block)[09.1988 - 09.1989] 4AF..AE92 |
90344-54003 |
from US $3.32 |
||
|
17118
|
17118
17118-16070 Stay, ManifoldMANIFOLD [09.1988 - 08.1990] 4AF#..AE92 |
17118-16070 |
US $20.24 |
||
| replacements | |||||
|
17118
|
17118
17118-16071 Stay, Manifold[09.1988 - 08.1990] 4AF#..AE92 |
17118-16071 |
US $20.09 |
||
|
17118
|
17118
90119-10329 New Genuine Part[09.1988 - 08.1990] 4AF#..AE92 |
90119-10329 |
US $1.60 |
||
|
17119
|
17119
17139-15020 Stay, Manifold, No.2[09.1988 - 09.1989] 4AF..AE92 |
17139-15020 |
US $34.80 |
||
|
17141
|
17141
17141-16220
Manifold, Exhaust
[09.1988 - 09.1989] 4AF..AE92 |
17141-16220 |
— | ||
| replacements | |||||
|
17141
|
17141
17141-16221
Manifold, Exhaust
[09.1988 - 09.1989] 4AF..AE92 |
17141-16221 |
— | ||
|
17141
|
17141
90119-06817 BOLT WWASHER[09.1988 - 09.1989] 4AF..AE92 |
90119-06817 |
from US $0.86 |
||
|
17151
|
17151
92112-60832 Bolt, Stud(For Water Outlet Housing)[09.1988 - 09.1989] 4AF..AE92 |
92112-60832 |
US $3.76 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[09.1988 - 09.1992] 4AF#..AE92 |
90116-10146 |
from US $1.81 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[09.1988 - 09.1992] 4AF#..AE92 INTAKE MANIFOLD |
92112-60825 |
US $2.87 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[07.1989 - 09.1992] 4AF#..AE92 EXHAUST MANIFOLD |
92112-61028 |
US $4.30 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[09.1988 - 07.1989] 4AF..AE92 EXHAUST MANIFOLD |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17107-16080 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [09.1988 - 09.1989] 4AF..AE92 |
17107-16080 |
US $128.13 |
||
|
17168
|
17168
17168-16070 Insulator, Exhaust Manifold Heat, No.2[09.1988 - 09.1992] 4AF#..AE92 |
17168-16070 |
US $29.99 |
||
| replacement | |||||
|
17168
|
17168
17168-16071 Insulator, Exhaust Manifold Heat, No.2[09.1988 - 09.1992] 4AF#..AE92 |
17168-16071 |
US $30.14 |
||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[09.1988 - 12.1989] 4AF#..AE92 |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[09.1988 - 12.1989] 4AF#..AE92 |
17173-15011 |
from US $18.84 |
||
|
17177
|
17177
17171-15020 Gasket, Intake Manifold To Head, No.1[09.1988 - 09.1989] 4AF..AE92 |
17171-15020 |
US $13.69 |
||
| replacement | |||||
|
17177
|
17177
17171-15021 Gasket, Intake Manifold To Head, No.1[09.1988 - 09.1989] 4AF..AE92 |
17171-15021 |
US $13.10 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $2.18 |
||
|
9011608128
|
9011608128
90116-08128 Bolt, Stud(For Manifold Stay) |
90116-08128 |
US $4.66 |
||
|
9011608263
|
9011608263
90116-08263 New Genuine Part |
90116-08263 |
US $1.89 |
||
| replacement | |||||
|
9011608263
|
9011608263
90126-08002 New Genuine Part |
90126-08002 |
US $4.08 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.86 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910485
|
9011910485
90119-10485 New Genuine Part |
90119-10485 |
US $2.48 |
||
|
9011910673
|
9011910673
90119-10673 New Genuine Part |
90119-10673 |
US $3.58 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9161560830
|
9161560830
91615-60830 Bolt(For Clutch Release Cylinder Setting) |
91615-60830 |
US $2.33 |
||
| replacement | |||||
|
9161560830
|
9161560830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.44 |
||
|
9211240820
|
9211240820
92112-40820 Bolt, Stud(For Manifold To Venturi) |
92112-40820 |
US $1.05 |
||
