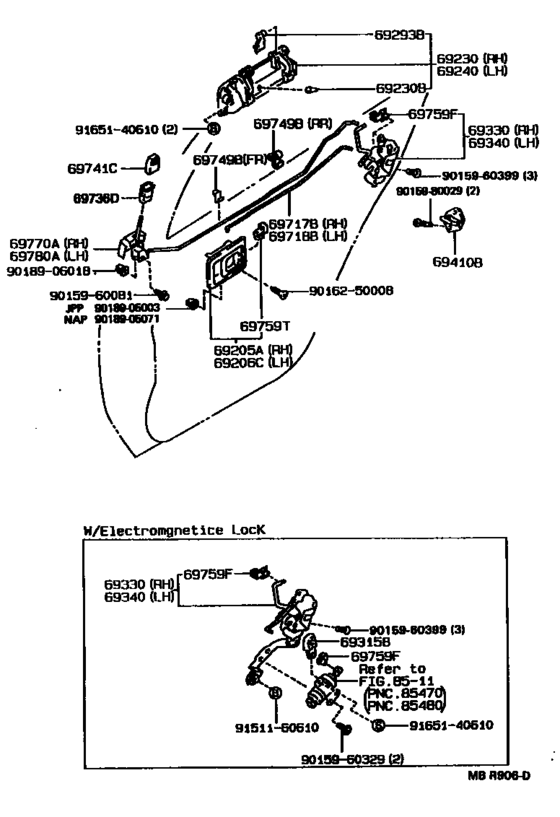

Rear Door Lock & Handle ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1988
- To
- 09.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205A
|
69205A
69206-01020-B1
Handle Sub-Assy, Front Door Inside, Rh
[09.1988 - 08.1989] AE92..DX DARK SMOKE GRAY,TRIM1# |
69206-01020-B1 |
— | ||
|
69205A
|
69205A
69206-01020-D0
Handle Sub-Assy, Front Door Inside, Rh
[09.1988 - 08.1989] AE92..DX MAROON,MAROON,TRIM3# |
69206-01020-D0 |
— | ||
|
69205A
|
69205A
69206-01020-E0
Handle Sub-Assy, Front Door Inside, Rh
[09.1988 - 08.1989] AE92..DX DARK BEIGE,DARK BEIGE,TRIM4# |
69206-01020-E0 |
— | ||
|
69205A
|
69205A
69206-01020-J0
Handle Sub-Assy, Front Door Inside, Rh
[09.1988 - 08.1989] AE92..DX DARK BLUE,TRIM8# |
69206-01020-J0 |
— | ||
|
69206C
|
69206C
69205-01020-B1
Handle Sub-Assy, Front Door Inside, Rh
[09.1988 - 08.1989] AE92..DX DARK SMOKE GRAY,TRIM1# |
69205-01020-B1 |
— | ||
|
69206C
|
69206C
69205-01020-D0
Handle Sub-Assy, Rear Door Inside, Rh
[09.1988 - 08.1989] AE92..DX MAROON,MAROON,TRIM3# |
69205-01020-D0 |
— | ||
|
69206C
|
69206C
69205-01020-E0
Handle Sub-Assy, Front Door Inside, Lh
[09.1988 - 08.1989] AE92..DX DARK BEIGE,DARK BEIGE,TRIM4# |
69205-01020-E0 |
— | ||
|
69206C
|
69206C
69205-01020-J0
Handle Sub-Assy, Rear Door Inside, Rh
[09.1988 - 08.1989] AE92..DX DARK BLUE,TRIM8# |
69205-01020-J0 |
— | ||
|
69230
|
69230
69230-12110 Handle Assy, Rear Door Outside, Rh[09.1988 - 09.1990] AE92 |
69230-12110 |
US $91.73 |
||
|
69230B
|
69230B
90541-04014 Cushion, Console Box[09.1988 - 09.1992] AE92 |
90541-04014 |
from US $0.80 |
||
|
69240
|
69240
69240-12110 Handle Assy, Rear Door Outside, Lh[09.1988 - 09.1990] AE92 |
69240-12110 |
US $91.73 |
||
|
69293B
|
69293B
69293-12030 Snap, Front Door Outside Handle[09.1988 - 08.1990] AE92 RH |
69293-12030 |
from US $1.97 |
||
|
69293B
|
69293B
69293-12040 Snap, Front Door Outside Handle[09.1988 - 08.1990] AE92 LH |
69293-12040 |
from US $1.93 |
||
|
69330
|
69330
69330-12180 Lock Assy, Rear Door, RhREAR DOOR, RH [09.1988 - 08.1989] AE92 |
69330-12180 |
US $117.94 |
||
|
69330
|
69330
69330-12181 Lock Assy, Rear Door, RhREAR DOOR, RH [08.1989 - 08.1990] AE92 |
69330-12181 |
US $90.27 |
||
|
69340
|
69340
69340-12180 Lock Assy, Rear Door, LhREAR DOOR, LH [09.1988 - 08.1989] AE92 |
69340-12180 |
US $117.94 |
||
|
69340
|
69340
69340-12181 Lock Assy, Rear Door, LhREAR DOOR, LH [08.1989 - 08.1990] AE92 |
69340-12181 |
US $90.27 |
||
|
69410B
|
69410B
69410-87001 Plate Assy, Front Door Lock Striker[09.1988 - 09.1992] AE92 |
69410-87001 |
from US $9.50 |
||
| replacement | |||||
|
69410B
|
69410B
69410-AA020 Plate Assy, Front Door Lock Striker[09.1988 - 09.1992] AE92 |
69410-AA020 |
US $50.37 |
||
|
69717B
|
69717B
69713-12040 Link, Rear Door Lock Remote Control, Rh[09.1988 - 09.1992] AE92..LE..EFI *86 & *87; AE92..CBR;AE92..(DX,STD)..EFI |
69713-12040 |
US $7.72 |
||
|
69718B
|
69718B
69714-12050 Link, Rear Door Lock Remote Control, Lh[09.1988 - 09.1992] AE92..LE..EFI *86 & *87; AE92..CBR;AE92..(DX,STD)..EFI |
69714-12050 |
US $7.72 |
||
|
69736D
|
69736D
69736-01010
Guide, Front Door Locking Link
[09.1988 - 09.1992] AE92 |
69736-01010 |
— | ||
|
69741C
|
69741C
69741-01020-B0
Knob, Front Door Lock Control
[09.1988 - 08.1989] AE92 DARK SMOKE GRAY,TRIM1#,*86 |
69741-01020-B0 |
— | ||
|
69741C
|
69741C
69741-01020-D0
Knob, Front Door Lock Control
[09.1988 - 08.1989] AE92 *86,MAROON,MAROON,TRIM3# |
69741-01020-D0 |
— | ||
|
69741C
|
69741C
69741-01020-E1
Knob, Front Door Lock Control
[09.1988 - 08.1989] AE92 *86,DARK BEIGE,DARK BEIGE,TRIM4# |
69741-01020-E1 |
— | ||
|
69741C
|
69741C
69741-01020-J0
Knob, Front Door Lock Control
[09.1988 - 08.1989] AE92 DARK BLUE,TRIM8#,*86 |
69741-01020-J0 |
— | ||
|
69741C
|
69741C
69741-90K00-B0 Knob, Rear Door Lock Control[09.1988 - 08.1989] AE92 DARK SMOKE GRAY,TRIM1#,*86 & *87 |
69741-90K00-B0 |
US $4.80 |
||
| replacement | |||||
|
69741C
|
69741C
69741-90K00-C0 Knob, Front Door Lock Control[09.1988 - 08.1989] AE92 DARK SMOKE GRAY,TRIM1#,*86 & *87 |
69741-90K00-C0 |
from US $3.94 |
||
|
69741C
|
69741C
69741-90K00-E0 Knob, Front Door Lock Control[09.1988 - 08.1989] AE92 DARK BEIGE,TRIM4#,*86 & *87 |
69741-90K00-E0 |
US $4.80 |
||
| replacement | |||||
|
69741C
|
69741C
69741-90K00-E3 Button, Door Locking(For Front Door)FRONT DOOR LOCK CONTROL [09.1988 - 08.1989] AE92 DARK BEIGE,TRIM4#,*86 & *87 |
69741-90K00-E3 |
US $4.80 |
||
|
69741C
|
69741C
69741-90K00-J0 Knob, Front Door Lock Control[09.1988 - 08.1989] AE92 DARK BLUE,TRIM8#,*86 & *87 |
69741-90K00-J0 |
US $4.80 |
||
| replacement | |||||
|
69741C
|
69741C
69741-90K00-C0 Knob, Front Door Lock Control[09.1988 - 08.1989] AE92 DARK BLUE,TRIM8#,*86 & *87 |
69741-90K00-C0 |
from US $3.94 |
||
|
69749B
|
69749B
69749-01010
Clamp, Front Door Lock Link, No.1
[09.1988 - 09.1992] AE92 FR,*86 |
69749-01010 |
— | ||
|
69749B
|
69749B
69749-01030
Clamp, Rear Door Lock Link
[09.1988 - 09.1992] AE92 RR,*86 |
69749-01030 |
— | ||
|
69749B
|
69749B
69749-12040 Clamp, Front Door Lock Link[09.1988 - 09.1992] AE92 RR,*86 & *87 |
69749-12040 |
US $5.38 |
||
|
69749B
|
69749B
69749-20010 Clamp, Front Door Lock Link[09.1988 - 09.1992] AE92 FR,*86 & *87 |
69749-20010 |
from US $3.23 |
||
|
69759F
|
69759F
69759-12070 Snap, Rear Door Lock Control Link[09.1988 - 09.1992] AE92 RH,CREAM |
69759-12070 |
US $2.48 |
||
|
69759F
|
69759F
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[09.1988 - 09.1992] AE92 LH,YELLOW |
69759-20040 |
from US $1.58 |
||
|
69759T
|
69759T
69759-01030
Snap, Front Door Inside Handle
[09.1988 - 09.1992] AE92 LH |
69759-01030 |
— | ||
|
69759T
|
69759T
69759-01040
Snap, Front Door Inside Handle
[09.1988 - 09.1992] AE92 RH |
69759-01040 |
— | ||
|
69770A
|
69770A
69770-12040 Link Assy, Rear Door Inside Locking, Rh[09.1988 - 09.1992] AE92..CBR; AE92..EFI *86 & *87 |
69770-12040 |
US $19.66 |
||
|
69780A
|
69780A
69780-12040 Link Assy, Rear Door Inside Locking, Lh[09.1988 - 09.1992] AE92..CBR; AE92..EFI *86 & *87 |
69780-12040 |
US $19.66 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.25 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015960399
|
9015960399
90159-60399 New Genuine Part |
90159-60399 |
US $1.60 |
||
|
9015980029
|
9015980029
90159-80029 New Genuine Part |
90159-80029 |
US $0.61 |
||
|
9016250008
|
9016250008
90162-50008 SCREW |
90162-50008 |
from US $0.86 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9018905071
|
9018905071
90189-05071 New Genuine Part |
90189-05071 |
US $1.75 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
