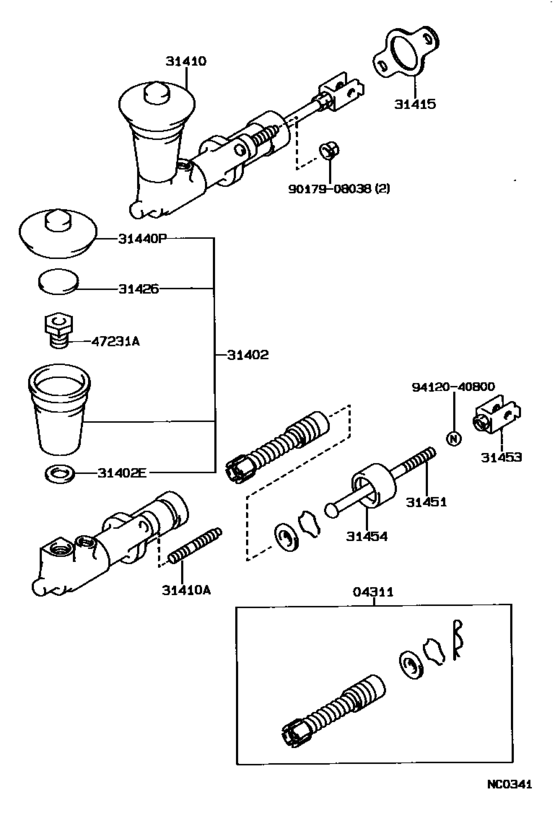

Clutch Master Cylinder ([08.1987 - 05.1989] C50,E55F5,E57F5 (8708-8905)5F) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12060
Cylinder Kit, Clutch Master
[08.1989 - 05.1992] AE92..5F |
04311-12060 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-12080 Cylinder Kit, Clutch Master[08.1989 - 05.1992] AE92..5F |
04311-12080 |
from US $31.36 |
||
|
04311
|
04311
04311-22040
Cylinder Kit, Clutch Master
[05.1989 - 08.1989] AE92..5F |
04311-22040 |
— | ||
| replacement | |||||
|
04311
|
04311
04311-12080 Cylinder Kit, Clutch Master[05.1989 - 08.1989] AE92..5F |
04311-12080 |
from US $31.36 |
||
|
04311
|
04311
04311-32030 Cylinder Kit, Clutch Master[09.1988 - 05.1989] AE92..5F |
04311-32030 |
from US $32.53 |
||
|
31402
|
31402
31402-12020 Reservoir Sub-Assy, Clutch Master Cylinder[09.1988 - 05.1989] AE92..5F |
31402-12020 |
US $19.36 |
||
|
31402
|
31402
31402-12040 Reservoir Sub-Assy, Clutch Master CylinderCLUTCH MASTER CYLINDER [05.1989 - 09.1992] AE92..5F |
31402-12040 |
US $26.06 |
||
| replacement | |||||
|
31402
|
31402
31402-12050 Reservoir Sub-Assy, Clutch Master CylinderCLUTCH MASTER CYLINDER [05.1989 - 09.1992] AE92..5F |
31402-12050 |
US $26.06 |
||
|
31402E
|
31402E
90562-18151
Ring(For Clutch Master Cylinder Reservoir)
[09.1988 - 05.1989] AE92..5F |
90562-18151 |
— | ||
|
31410
|
31410
31410-12201 Cylinder Assy, Clutch MasterCLUTCH MASTER [09.1988 - 05.1989] AE92..5F |
31410-12201 |
US $170.35 |
||
| replacement | |||||
|
31410
|
31410
31410-12221
Cylinder Assy, Clutch Master
[09.1988 - 05.1989] AE92..5F |
31410-12221 |
— | ||
|
31410
|
31410
31410-12330
Cylinder Assy, Clutch Master
[05.1989 - 09.1992] AE92..5F |
31410-12330 |
— | ||
| replacement | |||||
|
31410
|
31410
31410-12381 Cylinder Assy, Clutch MasterCLUTCH MASTER [05.1989 - 09.1992] AE92..5F |
31410-12381 |
from US $139.91 |
||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[09.1988 - 09.1992] AE92..5F |
90116-08146 |
US $1.40 |
||
|
31415
|
31415
31415-10010 Gasket, Clutch Master Cylinder[09.1988 - 09.1992] AE92..5F |
31415-10010 |
from US $1.62 |
||
|
31426
|
31426
31426-22020 Float, Clutch Master Cylinder Reservoir[05.1989 - 09.1992] AE92..5F |
31426-22020 |
US $2.45 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[09.1988 - 05.1989] AE92..5F |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[09.1988 - 09.1992] AE92..5F |
47230-20040 |
from US $9.36 |
||
|
31451
|
31451
31451-12050 Rod, Clutch Master Cylinder Push[09.1988 - 05.1989] AE92..5F |
31451-12050 |
US $15.29 |
||
|
31451
|
31451
31451-35070 Rod, Clutch Master Cylinder Push[05.1989 - 09.1992] AE92..5F |
31451-35070 |
US $7.28 |
||
|
31453
|
31453
31453-10020 Clevis, Clutch Master Cylinder Push Rod[09.1988 - 09.1992] AE92..5F |
31453-10020 |
US $6.12 |
||
|
31454
|
31454
31454-14010 Boot, Clutch Master Cylinder[09.1988 - 09.1992] AE92..5F |
31454-14010 |
US $4.19 |
||
|
47231A
|
47231A
47231-20010 Bolt, Clutch Master Cylinder Reservoir Set[09.1988 - 05.1989] AE92..5F |
47231-20010 |
US $4.08 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
