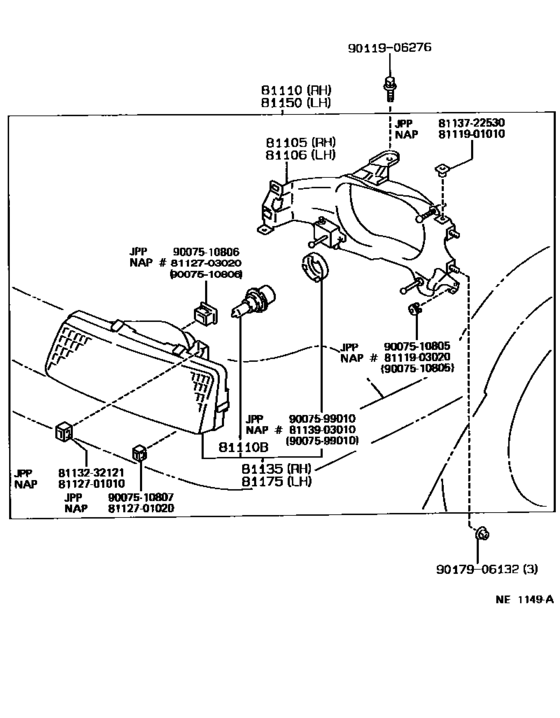

Headlamp ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81101-02020
Housing Sub-Assy, Headlamp, Rh
[09.1988 - 09.1992] AE92 |
81101-02020 |
— | ||
|
81106
|
81106
81102-02020
Housing Sub-Assy, Headlamp, Lh
[09.1988 - 09.1992] AE92 |
81102-02020 |
— | ||
|
81110
|
81110
81110-02020
Headlamp Assy, Rh
[09.1988 - 09.1990] AE92 |
81110-02020 |
— | ||
|
81110B
|
81110B
90081-81001
Bulb(For Headlamp, No.1)
[09.1988 - 09.1990] AE92 12V 65/45W,WHITE |
90081-81001 |
— | ||
|
81135
|
81135
81130-02020
Unit Assy, Headlamp, Rh
[09.1988 - 09.1990] AE92 |
81130-02020 |
— | ||
| replacement | |||||
|
81135
|
81135
81110-02020
Headlamp Assy, Rh
[09.1988 - 09.1990] AE92 |
81110-02020 |
— | ||
|
81150
|
81150
81150-02020
Headlamp Assy, Lh
[09.1988 - 09.1990] AE92 |
81150-02020 |
— | ||
|
81175
|
81175
81170-02020
Unit Assy, Headlamp, Lh
[09.1988 - 09.1990] AE92 |
81170-02020 |
— | ||
| replacement | |||||
|
81175
|
81175
81150-02020
Headlamp Assy, Lh
[09.1988 - 09.1990] AE92 |
81150-02020 |
— | ||
|
8111901010
|
8111901010
81119-01010
Screw, Headlamp
|
81119-01010 |
— | ||
|
8111903020
|
8111903020
81119-03020
Screw, Headlamp
|
81119-03020 |
— | ||
|
8112701010
|
8112701010
81127-01010
Bearing, Headlamp, No.1
|
81127-01010 |
— | ||
|
8112701020
|
8112701020
81127-01020
Bearing, Headlamp, No.1
|
81127-01020 |
— | ||
|
8112703020
|
8112703020
81127-03020
Bearing, Headlamp, No.2
|
81127-03020 |
— | ||
|
8113232121
|
8113232121
81132-32121
Bearing, Headlamp
|
81132-32121 |
— | ||
|
8113722530
|
8113722530
81137-22530
Nut, Headlamp Self Locking
|
81137-22530 |
— | ||
| replacement | |||||
|
8113722530
|
8113722530
90075-10004 Nut, Headlamp Self Locking |
90075-10004 |
from US $0.90 |
||
|
8113903010
|
8113903010
81139-03010
Cover, Headlamp, No.1
|
81139-03010 |
— | ||
|
9007510805
|
9007510805
90075-10805 New Genuine Part |
90075-10805 |
from US $1.65 |
||
|
9007510806
|
9007510806
90075-10806 Bearing, Headlamp |
90075-10806 |
US $2.33 |
||
|
9007510807
|
9007510807
90075-10807
New Genuine Part
|
90075-10807 |
— | ||
|
9007599010
|
9007599010
90075-99010 Cap, Headlamp LockingHEADLAMP LOCKING |
90075-99010 |
US $0.87 |
||
|
9011906276
|
9011906276
90119-06276 Bolt |
90119-06276 |
from US $1.65 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
