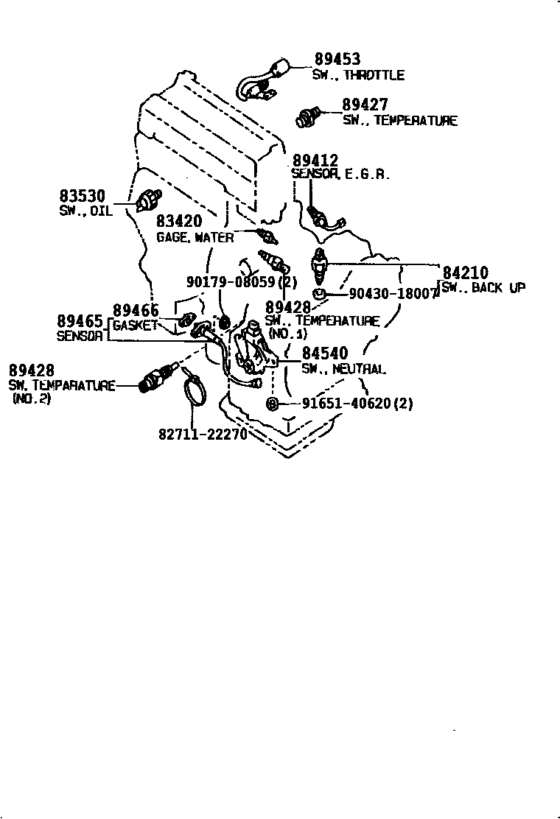

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[09.1988 - 09.1992] AE92 |
83420-16020 |
from US $36.93 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[09.1988 - 04.1990] AE92 |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[09.1988 - 04.1990] AE92 |
83530-60050 |
from US $29.06 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[09.1988 - 08.1989] AE92..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[09.1988 - 08.1989] AE92..5F |
84210-52050 |
from US $22.85 |
||
|
89412
|
89412
89412-12010 Sensor, E.g.r Gas TemperatureE.G.R GAS TEMPERATURE [09.1988 - 09.1992] AE92..USA CALIFORNIA SPEC |
89412-12010 |
US $168 |
||
|
89427
|
89427
89427-12090 Switch, Temperature Detect[09.1988 - 09.1989] AE92 |
89427-12090 |
US $68.49 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[09.1988 - 09.1992] AE92 NO.1 |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[09.1988 - 09.1992] AE92 NO.1 |
89428-32010 |
US $84.91 |
||
|
89453
|
89453
89453-12040
Switch, Throttle Position (For T.c.s.)
[09.1988 - 09.1989] AE92 |
89453-12040 |
— | ||
|
89465
|
89465
89465-19255 Sensor, OxygenOXYGEN [09.1988 - 08.1989] AE92 |
89465-19255 |
US $131.04 |
||
| replacement | |||||
|
89465
|
89465
89465-29166 Sensor, Oxygen[09.1988 - 08.1989] AE92 |
89465-29166 |
US $132.50 |
||
|
89465
|
89465
89465-29166 Sensor, Oxygen[08.1989 - 09.1989] AE92 |
89465-29166 |
US $132.50 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 09.1992] AE92 |
89466-20020 |
from US $12.77 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[09.1988 - 10.1988] AE92 |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[09.1988 - 10.1988] AE92 |
89466-20020 |
from US $12.77 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.80 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
