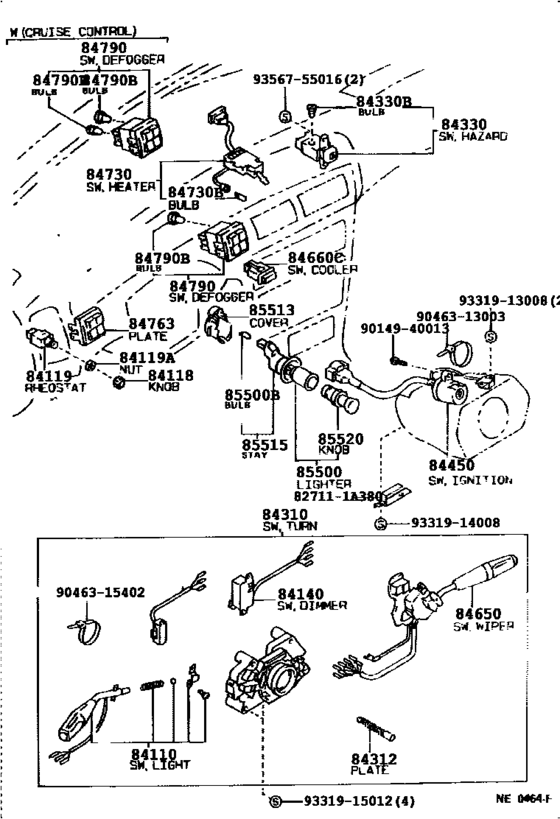

Switch & Relay & Computer ([09.1988 - 09.1989] (8809-8909)) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80001
Switch Assy, Light Control, No.1
[09.1988 - 08.1989] AE92 MATSUSHITA |
84112-80001 |
— | ||
|
84110
|
84110
84112-80002 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [09.1988 - 08.1989] AE92 TOKAIRIKA |
84112-80002 |
US $69.60 |
||
| replacement | |||||
|
84110
|
84110
84112-39585 Switch Assy, Light Control, No.1LIGHT CONTROL, NO.1 [09.1988 - 08.1989] AE92 TOKAIRIKA |
84112-39585 |
US $70.47 |
||
|
84118
|
84118
84118-12070 Knob, Light Control Rheostat[09.1988 - 08.1989] AE92 |
84118-12070 |
US $13.40 |
||
|
84119
|
84119
84119-32090
Rheostat, Light Control
[09.1988 - 08.1989] AE92 |
84119-32090 |
— | ||
| replacement | |||||
|
84119
|
84119
84119-03010 Rheostat, Light ControlLIGHT CONTROL [09.1988 - 08.1989] AE92 |
84119-03010 |
US $384.05 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[09.1988 - 08.1989] AE92 |
90170-09167 |
— | ||
|
84140
|
84140
84140-12260
Switch Assy, Headlamp Dimmer
[09.1988 - 08.1989] AE92 |
84140-12260 |
— | ||
| replacement | |||||
|
84140
|
84140
84140-26100
Switch Assy, Headlamp Dimmer
[09.1988 - 08.1989] AE92 |
84140-26100 |
— | ||
|
84310
|
84310
84310-1A151 Switch Assy, Turn SignalTURN SIGNAL [09.1988 - 08.1989] AE92..DX |
84310-1A151 |
US $247.52 |
||
|
84310
|
84310
84310-1A171 Switch Assy, Turn SignalTURN SIGNAL [09.1988 - 08.1989] AE92..LE; AE92..DX W(INTERMITTENT WIPER) |
84310-1A171 |
US $254.80 |
||
|
84310
|
84310
84310-1A200 Switch Assy, Turn SignalTURN SIGNAL [09.1988 - 08.1989] AE92 W(CRUISE CONTROL) |
84310-1A200 |
US $320.32 |
||
| replacement | |||||
|
84310
|
84310
84310-1A201 Switch Assy, Turn SignalTURN SIGNAL [09.1988 - 08.1989] AE92 W(CRUISE CONTROL) |
84310-1A201 |
US $327.60 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[09.1988 - 08.1989] AE92 |
84312-12040 |
from US $6.49 |
||
|
84330
|
84330
84332-12260 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [09.1988 - 08.1989] AE92 |
84332-12260 |
US $45.86 |
||
| replacement | |||||
|
84330
|
84330
84332-12270 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [09.1988 - 08.1989] AE92 |
84332-12270 |
US $45.86 |
||
|
84330B
|
84330B
84999-10210 Bulb, Hazard Warning Signal Switch[08.1989 - 09.1989] AE92 14V 0.84W |
84999-10210 |
US $5.53 |
||
|
84450
|
84450
84450-12160 Switch Assy, Ignition Or Starter[09.1988 - 08.1989] AE92 |
84450-12160 |
US $75.71 |
||
|
84650
|
84650
84652-12780 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.1988 - 08.1989] AE92..DX |
84652-12780 |
US $96.10 |
||
| replacement | |||||
|
84650
|
84650
84652-12800
Switch Assy, Windshield Wiper
[09.1988 - 08.1989] AE92..DX |
84652-12800 |
— | ||
|
84650
|
84650
84652-12800
Switch Assy, Windshield Wiper
[09.1988 - 08.1989] AE92..LE; AE92..DX W(INTERMITTENT WIPER) |
84652-12800 |
— | ||
|
84650
|
84650
84652-12820 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.1988 - 08.1989] AE92 W(CRUISE CONTROL) |
84652-12820 |
US $199.47 |
||
|
84660C
|
84660C
84660-12100 Switch, CoolerCOOLER [09.1988 - 09.1989] AE92 |
84660-12100 |
US $68.43 |
||
|
84730
|
84730
84732-12270
Switch Assy, Heater Blower
[09.1988 - 03.1990] AE92 |
84732-12270 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[09.1988 - 09.1992] AE92 14V 1.4W |
90981-11014 |
from US $2.15 |
||
|
84763
|
84763
84763-12070-B0 Plate, SwitchSWITCH [11.1988 - 08.1989] AE92 DARK SMOKE GRAY,TRIM1# |
84763-12070-B0 |
US $15 |
||
|
84763
|
84763
84763-12070-D0
Plate, Switch
[09.1988 - 08.1989] AE92 MAROON,TRIM3# |
84763-12070-D0 |
— | ||
|
84763
|
84763
84763-12070-E1
Plate, Switch
[09.1988 - 08.1989] AE92 DARK BEIGE,TRIM4# |
84763-12070-E1 |
— | ||
|
84763
|
84763
84763-12070-J0 Plate, SwitchSWITCH [11.1988 - 08.1989] AE92 DARK BLUE,TRIM8# |
84763-12070-J0 |
US $15 |
||
|
84790
|
84790
84630-12040-B0 Switch Assy, Rear Window Defogger[11.1988 - 08.1989] AE92 W(CRUISE CONTROL),DARK SMOKE GRAY,TRIM1# |
84630-12040-B0 |
US $101.92 |
||
|
84790
|
84790
84630-12040-D0
Switch Assy, Rear Window Defogger
[09.1988 - 08.1989] AE92 W(CRUISE CONTROL),MAROON,TRIM3# |
84630-12040-D0 |
— | ||
|
84790
|
84790
84630-12040-J0 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [11.1988 - 08.1989] AE92 W(CRUISE CONTROL),DARK BLUE,TRIM8# |
84630-12040-J0 |
US $101.92 |
||
| replacement | |||||
|
84790
|
84790
84630-12040-B0 Switch Assy, Rear Window Defogger[11.1988 - 08.1989] AE92 W(CRUISE CONTROL),DARK BLUE,TRIM8# |
84630-12040-B0 |
US $101.92 |
||
|
84790
|
84790
84790-12230-B0 Switch Assy, Rear Window Defogger[11.1988 - 08.1989] AE92 DARK SMOKE GRAY,TRIM1# |
84790-12230-B0 |
US $71.64 |
||
| replacement | |||||
|
84790
|
84790
84790-12230-01 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [11.1988 - 08.1989] AE92 DARK SMOKE GRAY,TRIM1# |
84790-12230-01 |
US $71.64 |
||
|
84790
|
84790
84790-12230-D0 Switch Assy, Rear Window Defogger[09.1988 - 08.1989] AE92 MAROON,TRIM3# |
84790-12230-D0 |
US $71.64 |
||
| replacement | |||||
|
84790
|
84790
84790-12230-01 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [09.1988 - 08.1989] AE92 MAROON,TRIM3# |
84790-12230-01 |
US $71.64 |
||
|
84790
|
84790
84790-12230-E1 Switch Assy, Rear Window Defogger[09.1988 - 08.1989] AE92 DARK BEIGE,TRIM4# |
84790-12230-E1 |
US $71.64 |
||
| replacement | |||||
|
84790
|
84790
84790-12230-01 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [09.1988 - 08.1989] AE92 DARK BEIGE,TRIM4# |
84790-12230-01 |
US $71.64 |
||
|
84790
|
84790
84790-12230-J0 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [11.1988 - 08.1989] AE92 DARK BLUE,TRIM8# |
84790-12230-J0 |
US $71.64 |
||
| replacement | |||||
|
84790
|
84790
84790-12230-01 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [11.1988 - 08.1989] AE92 DARK BLUE,TRIM8# |
84790-12230-01 |
US $71.64 |
||
|
84790B
|
84790B
84999-10170 Bulb, Indicator Lamp[09.1988 -] AE92 12V 1.12W |
84999-10170 |
US $7.88 |
||
|
84790B
|
84790B
84999-10200 Bulb(For Cruise Control Switch)[09.1988 -] AE92 14V 0.56W,W(CRUISE CONTROL) |
84999-10200 |
US $5.10 |
||
|
84790B
|
84790B
84999-10240
Bulb, Traction Control Switch
[09.1988 -] AE92 12V 1.3W,W(CRUISE CONTROL) |
84999-10240 |
— | ||
|
85500
|
85500
85500-12250
Lighter Assy, Cigarette
[09.1988 - 11.1989] AE92 |
85500-12250 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-10120 Lighter Assy, Cigarette[09.1988 - 11.1989] AE92 |
85500-10120 |
US $59.98 |
||
|
85500B
|
85500B
84999-10230
Bulb, Cigarette Lighter
[09.1988 - 09.1992] AE92 14V 1.4W |
84999-10230 |
— | ||
|
85513
|
85513
85513-12010 Cover, Cigarette Lighter[09.1988 - 08.1989] AE92 |
85513-12010 |
US $8.15 |
||
| replacement | |||||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[09.1988 - 08.1989] AE92 |
85513-12020 |
from US $4.97 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[08.1989 - 09.1992] AE92 |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-12060 Stay, Cigarette Lighter Bezel[09.1988 - 11.1989] AE92 |
85515-12060 |
US $14.71 |
||
| replacement | |||||
|
85515
|
85515
85515-14010 Stay, Cigarette Lighter Bezel[09.1988 - 11.1989] AE92 |
85515-14010 |
from US $10.08 |
||
|
85520
|
85520
85520-20080 Knob And Element Assy, Cigarette Lighter[09.1988 - 09.1992] AE92 |
85520-20080 |
US $31.45 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.25 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
