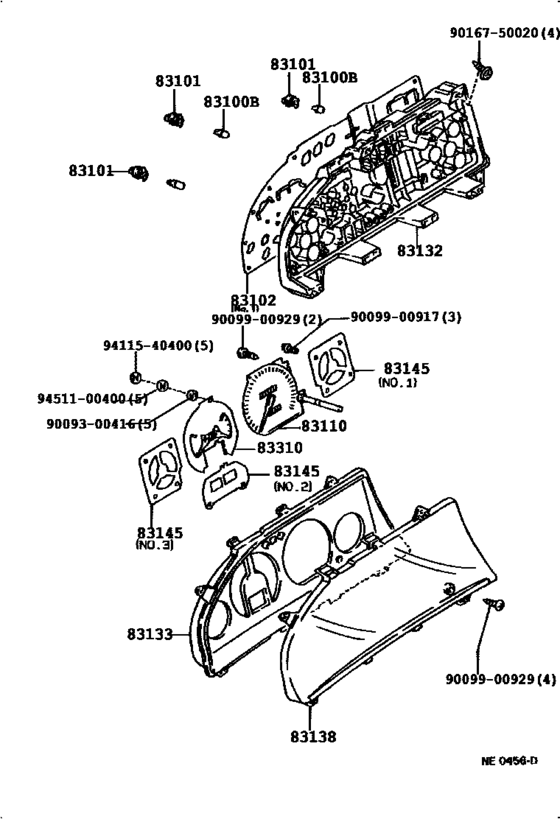

Meter ([08.1987 - ] (8708- )DX,STD) Diagram Toyota COROLLA
- Year
- 1988 - 1989
- Sales region
- U.S.A.
- Frame
- AE92
- grade
- DX
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.1988
- To
- 09.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[09.1988 - 01.1990] AE92..5F..DX 12V 1.4W,W(SOCKET) |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[09.1988 - 09.1992] AE92 12V 3.4W,BLUE CAP |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1988 - 09.1992] AE92 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[09.1988 - 09.1992] AE92 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[09.1988 - 09.1992] AE92 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1988 - 09.1992] AE92 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1988 - 09.1992] AE92 14V 1.4W BULB |
83101-14040 |
US $2.44 |
||
|
83102
|
83102
83247-1E320
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1988 - 09.1992] AE92..DX,STD NO.1 |
83247-1E320 |
— | ||
|
83102
|
83102
83247-1E600
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1988 - 01.1990] AE92..5F..DX W(TACHOMETER),NO.1 |
83247-1E600 |
— | ||
|
83110
|
83110
83110-1E020
Speedometer Assy
[11.1988 - 08.1990] AE92..DX..CND |
83110-1E020 |
— | ||
|
83110
|
83110
83110-1E040
Speedometer Assy
[11.1988 - 08.1990] AE92..LE..CND; AE92..5F..DX..CND W(TACHOMETER) |
83110-1E040 |
— | ||
|
83132
|
83132
83132-1A230
Case, Combination Meter
[09.1988 - 09.1992] AE92..DX,STD |
83132-1A230 |
— | ||
|
83132
|
83132
83132-1A270
Case, Combination Meter
[09.1988 - 01.1990] AE92..5F..DX W(TACHOMETER) |
83132-1A270 |
— | ||
|
83133
|
83133
83133-1A750
Plate, Combination Meter, No.1
[09.1988 - 09.1992] AE92..DX,STD |
83133-1A750 |
— | ||
|
83133
|
83133
83133-1E030
Plate, Combination Meter, No.1
[09.1988 - 01.1990] AE92..5F..DX W(TACHOMETER) |
83133-1E030 |
— | ||
|
83138
|
83138
83138-1A030
Glass, Speedometer
[09.1988 - 09.1992] AE92 |
83138-1A030 |
— | ||
|
83145
|
83145
83145-1E570
Lens, Meter, No.1
[09.1988 - 09.1992] AE92..DX,STD NO.3 |
83145-1E570 |
— | ||
|
83145
|
83145
83145-1E690
Lens, Meter, No.1
[09.1988 - 09.1992] AE92..DX,STD NO.2 |
83145-1E690 |
— | ||
|
83145
|
83145
83145-1E790
Lens, Meter, No.1
[09.1988 - 09.1992] AE92..DX,STD NO.1 |
83145-1E790 |
— | ||
|
83310
|
83310
83243-1A250
Gage Assy, Fuel Receiver
[09.1988 - 01.1990] AE92..5F..DX W(TACHOMETER) |
83243-1A250 |
— | ||
|
83310
|
83310
83243-1A490
Gage Assy, Fuel Receiver
[09.1988 - 09.1992] AE92..DX,STD |
83243-1A490 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
