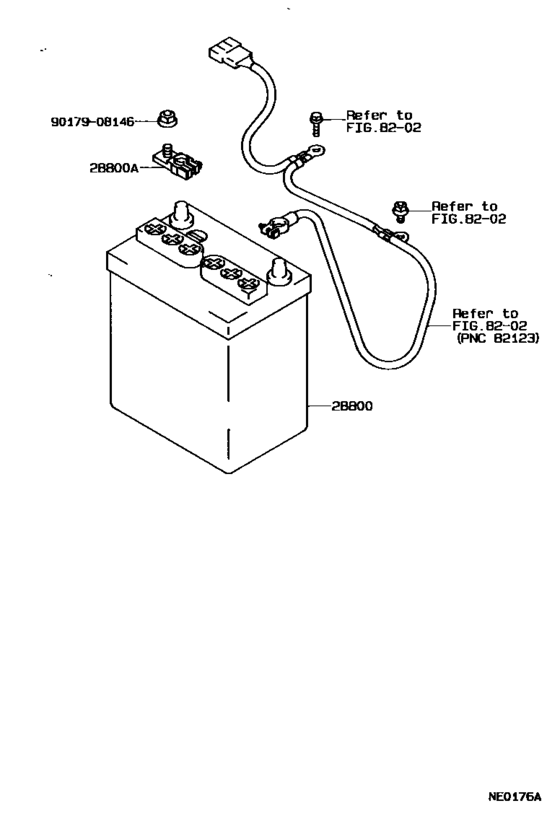

Battery & Battery Cable ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-11130
Battery
[08.1989 - 06.1990] 4A#,2E..AE92,EE90..GCC,GEN 34B19L |
28800-11130 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-72020
Battery
[08.1989 - 06.1990] 4A#,2E..AE92,EE90..GCC,GEN 34B19L |
28800-72020 |
— | ||
|
28800
|
28800
28800-31021
Battery
[05.1987 - 05.1988] 4AF..AE92..RHD;2E..EE90..5F..GL;2E..EE90..(STD,XL)..GEN 32C24L,32C24L |
28800-31021 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-20060
Battery (Cannot be supplied)
[05.1987 - 05.1988] 4AF..AE92..RHD;2E..EE90..5F..GL;2E..EE90..(STD,XL)..GEN 32C24L,32C24L |
28800-20060 |
— | ||
|
28800
|
28800
28800-31080
Battery
[08.1990 - 08.1991] 4A#,2E..AE92,EE90..GCC,GEN 34B19L(S) |
28800-31080 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-72020
Battery
[08.1990 - 08.1991] 4A#,2E..AE92,EE90..GCC,GEN 34B19L(S) |
28800-72020 |
— | ||
|
28800
|
28800
28800-70011
Battery
[05.1987 - 05.1989] 4A#..AE92 34B19L |
28800-70011 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-26050
Battery
[05.1987 - 05.1989] 4A#..AE92 34B19L |
28800-26050 |
— | ||
|
28800
|
28800
28800-74060
Battery
[05.1989 - 08.1989] 4A#..AE92..GEN 34B19L |
28800-74060 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-26050
Battery
[05.1989 - 08.1989] 4A#..AE92..GEN 34B19L |
28800-26050 |
— | ||
|
28800A
|
28800A
90982-05034 Terminal, Battery Positive[05.1987 - 07.1992] 4AF,2E..AE92,EE90..GCC,GEN |
90982-05034 |
from US $16.46 |
||
|
28800A
|
28800A
90982-05035 Terminal, Battery Positive[05.1987 - 07.1992] 4AF,2E..AE92,EE90..GCC,GEN BATTERY=34B19L OR 32C24L |
90982-05035 |
from US $12.71 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
