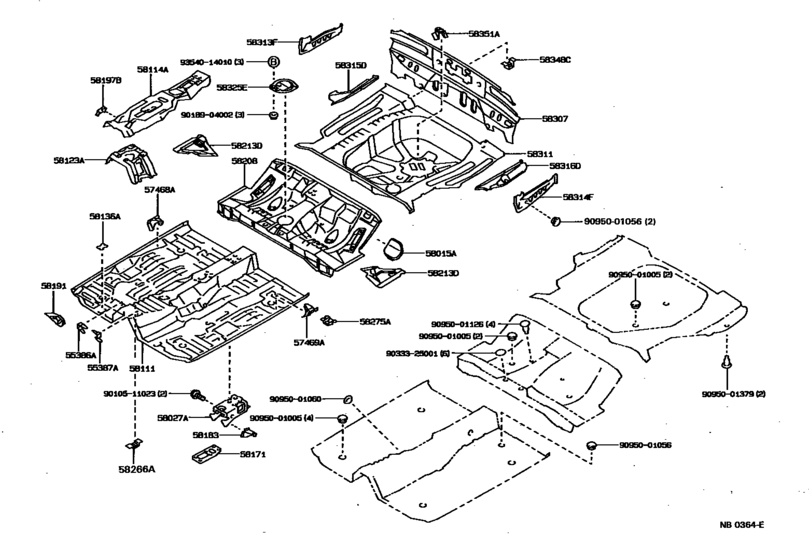

Floor Pan & Lower Back Panel ([05.1987 - ] (8705- )AE92..XL..GEN) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55386A
|
55386A
55386-12040 Bracket, Computer Mounting, No.1[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
55386-12040 |
US $10.48 |
||
|
55387A
|
55387A
55387-12020 Bracket, Computer Mounting, No.2[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
55387-12020 |
US $10.48 |
||
|
57468A
|
57468A
57468-12030 Bracket, Front Seat, Outside, Rear Rh[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
57468-12030 |
US $5.24 |
||
|
57469A
|
57469A
57469-12030 Bracket, Front Seat, Outside, Rear Lh[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
57469-12030 |
US $5.24 |
||
|
58015A
|
58015A
58015-12030 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[05.1987 - 06.1991] AE92..XL..GEN |
58015-12030 |
US $27.96 |
||
|
58027A
|
58027A
58027-12030 Reinforce Sub-Assy, Seat Belt Anchor[05.1987 - 05.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58027-12030 |
US $31.60 |
||
|
58027A
|
58027A
58027-12060 Reinforce Sub-Assy, Seat Belt Anchor[05.1989 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58027-12060 |
US $35.82 |
||
|
58027A
|
58027A
58027-12100 Reinforce Sub-Assy, Seat Belt Anchor[06.1990 - 07.1992] AE92,EE90..GCC,GEN |
58027-12100 |
US $34.51 |
||
|
58111
|
58111
58111-12200
Pan, Front Floor
[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58111-12200 |
— | ||
|
58114A
|
58114A
58114-12050 Reinforcement, Front Floor Panel[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58114-12050 |
US $62.61 |
||
|
58123A
|
58123A
58123-12040 Support, Shift & Select Lever[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58123-12040 |
US $57.51 |
||
|
58136A
|
58136A
58136-12020 Cover, Front Floor Service Hole[05.1987 - 05.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58136-12020 |
US $2.91 |
||
|
58171
|
58171
58171-12080 Reinforcement, Parking Brake Base[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58171-12080 |
US $12.23 |
||
|
58183
|
58183
58183-12090 Bracket, Front Seat Mounting, Inner[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA RH |
58183-12090 |
US $15.72 |
||
|
58183
|
58183
58184-12110 Bracket, Front Seat Mounting, Inner[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA LH |
58184-12110 |
US $15.72 |
||
|
58191
|
58191
58191-12100 Footrest, Front Floor[05.1987 - 08.1991] EE90..XL..SA;EE90..RHD..GEN;AE92..RHD..(GT,GTI,XL) |
58191-12100 |
US $20.24 |
||
|
58197B
|
58197B
58197-12010 Retainer, Instrument Panel Brace Mounting Bracket[05.1987 - 08.1989] EE90..3FC..GCC;AE92,EE90..GEN,SA |
58197-12010 |
US $3.79 |
||
|
58208
|
58208
58211-12200 Pan, Center Floor[05.1987 - 06.1991] AE92..XL..GEN |
58211-12200 |
US $384.38 |
||
|
58208
|
58208
58211-12220
Pan, Center Floor
[05.1987 - 08.1988] AE92..XL W(SEAT BELT HOLE) |
58211-12220 |
— | ||
|
58213D
|
58213D
58213-12030 Reinforcement, Center Floor Panel[05.1987 - 06.1991] AE92..XL..GEN RH |
58213-12030 |
US $57.66 |
||
|
58213D
|
58213D
58214-12020 Reinforcement, Center Floor Panel[05.1987 - 06.1991] AE92..XL..GEN LH |
58214-12020 |
US $57.66 |
||
|
58266A
|
58266A
58266-22040 Bracket, Fuel Tube Clamp[05.1987 - 08.1993] AE92,EE90 |
58266-22040 |
US $4.08 |
||
|
58275A
|
58275A
58275-12030 Retainer, Rear Seat Back To Center Floor[05.1987 - 06.1991] AE92..XL..GEN |
58275-12030 |
US $8.01 |
||
|
58307
|
58307
58307-1A081 Panel Sub-Assy, Body Lower Back[10.1989 - 06.1991] AE92..XL..GEN |
58307-1A081 |
US $285.38 |
||
| replacement | |||||
|
58307
|
58307
58307-1A101 Panel Sub-Assy, Body Lower Back[10.1989 - 06.1991] AE92..XL..GEN |
58307-1A101 |
US $285.38 |
||
|
58307
|
58307
58307-1A101 Panel Sub-Assy, Body Lower Back[05.1987 - 10.1989] AE92..XL..GEN |
58307-1A101 |
US $285.38 |
||
|
58311
|
58311
58311-12120
Pan, Rear Floor
[05.1987 - 06.1991] AE92..XL..GEN |
58311-12120 |
— | ||
|
58313F
|
58313F
58313-12210 Extension, Rear Floor Pan To Quarter Panel, Rh[05.1987 - 06.1991] AE92..XL..GEN |
58313-12210 |
US $15.43 |
||
|
58314F
|
58314F
58314-12210 Extension, Rear Floor Pan To Quarter Panel, Lh[05.1987 - 06.1991] AE92..XL..GEN |
58314-12210 |
US $15.58 |
||
|
58315D
|
58315D
58315-12030 Extension, Rear Floor Pan, Rh[05.1987 - 06.1991] AE92..XL..GEN |
58315-12030 |
US $17.33 |
||
|
58316D
|
58316D
58316-12030 Extension, Rear Floor Pan, Lh[05.1987 - 06.1991] AE92..XL..GEN |
58316-12030 |
US $17.33 |
||
|
58325E
|
58325E
58325-12040 Cover, Rear Floor Service Hole[05.1987 - 06.1991] AE92..XL..GEN |
58325-12040 |
US $10.77 |
||
|
58348C
|
58348C
58348-12010 Bracket, Rear Floor Heat Insulator, No.3[05.1987 - 06.1991] AE92..XL..GEN |
58348-12010 |
US $3.64 |
||
|
58351A
|
58351A
58351-12020 Bracket, Spare Wheel Carrier[05.1987 - 06.1991] AE92..XL..GEN |
58351-12020 |
US $11.21 |
||
|
9010511023
|
9010511023
90105-11023 New Genuine Part |
90105-11023 |
US $2.48 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $2.15 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.42 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.99 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9095001379
|
9095001379
90950-01379 New Genuine Part |
90950-01379 |
US $4.48 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
