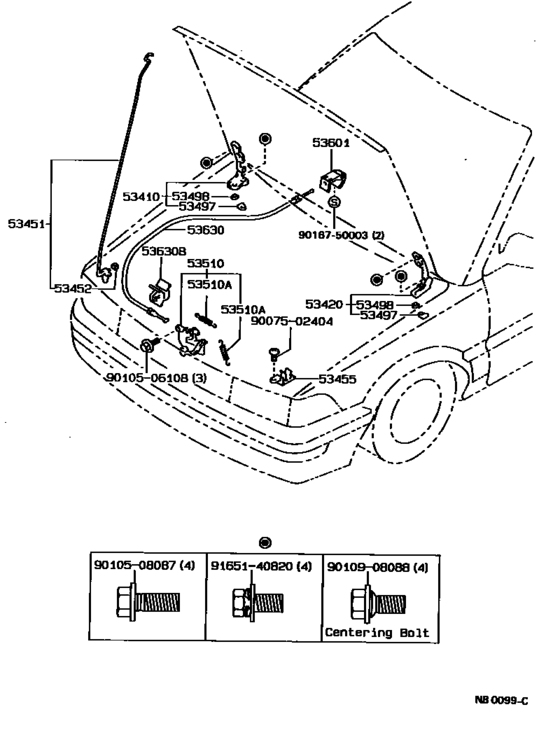

Hood Lock & Hinge ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-12140
Hinge Assy, Hood, Rh
[05.1987 - 08.1988] AE92..XL |
53410-12140 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-12141 Hinge Assy, Hood, Rh[05.1987 - 08.1988] AE92..XL |
53410-12141 |
US $30.87 |
||
|
53410
|
53410
53410-12141 Hinge Assy, Hood, Rh[08.1988 - 06.1991] AE92..XL..GEN |
53410-12141 |
US $30.87 |
||
|
53420
|
53420
53420-12120
Hinge Assy, Hood, Lh
[05.1987 - 08.1988] AE92..XL |
53420-12120 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-12121 Hinge Assy, Hood, Lh[05.1987 - 08.1988] AE92..XL |
53420-12121 |
US $30.87 |
||
|
53420
|
53420
53420-12121 Hinge Assy, Hood, Lh[08.1988 - 06.1991] AE92..XL..GEN |
53420-12121 |
US $30.87 |
||
|
53451
|
53451
53451-12140 Rod, Hood Support[05.1987 - 06.1991] AE92..XL..GEN |
53451-12140 |
US $26.94 |
||
| replacement | |||||
|
53451
|
53451
53451-12150
Rod, Hood Support
[05.1987 - 06.1991] AE92..XL..GEN |
53451-12150 |
— | ||
|
53452
|
53452
53452-12020 Holder, Hood Stay[02.1988 - 08.1993] AE92,EE90 |
53452-12020 |
from US $2.27 |
||
|
53455
|
53455
53455-12050
Clamp, Hood Support Rod
[05.1987 - 06.1991] AE92..XL..GEN |
53455-12050 |
— | ||
|
53497
|
53497
53497-12010
Pad, Hood Hinge, No.1
[05.1987 - 08.1988] AE92,EE90 |
53497-12010 |
— | ||
| replacement | |||||
|
53497
|
53497
53497-12011 Pad, Hood Hinge, No.1[05.1987 - 08.1988] AE92,EE90 |
53497-12011 |
US $1.92 |
||
|
53497
|
53497
53497-12011 Pad, Hood Hinge, No.1[08.1988 - 08.1993] AE92,EE90 T=0.5 |
53497-12011 |
US $1.92 |
||
|
53498
|
53498
53498-12010
Pad, Hood Hinge, No.2
[05.1987 - 08.1988] AE92,EE90 |
53498-12010 |
— | ||
| replacement | |||||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[05.1987 - 08.1988] AE92,EE90 |
53498-12011 |
US $1.92 |
||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[08.1988 - 08.1993] AE92,EE90 |
53498-12011 |
US $1.92 |
||
|
53510
|
53510
53510-12430 Lock Assy, Hood[05.1987 - 06.1991] AE92..RHD..XL..GEN |
53510-12430 |
US $43.53 |
||
|
53510A
|
53510A
90506-09008 Spring, Tension(For Spring Bracket)[08.1987 - 08.1989] AE92..XL..GEN WD=0.9,CW=21.25 |
90506-09008 |
US $3.32 |
||
|
53510A
|
53510A
90506-09029
Spring, Tension(For Hood Lock)
[02.1990 - 10.1990] AE92..RHD..XL..GEN WD=0.9,WD=0.9,CW=26.5 |
90506-09029 |
— | ||
|
53510A
|
53510A
90506-09031
Spring, Tension(For Hood Lock)
[05.1987 - 02.1990] AE92..XL..GEN WD=0.9,CW=26.5 |
90506-09031 |
— | ||
|
53510A
|
53510A
90506-20054 Spring, Tension(For Hood Lock)[05.1987 - 06.1991] AE92..XL..GEN WD=2.0,CW=17 |
90506-20054 |
US $3.49 |
||
|
53601
|
53601
53601-10020-03 Lever Sub-Assy, Hood Lock Control[05.1987 - 07.1987] AE92,EE90 GRAY,TRIM1# |
53601-10020-03 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[05.1987 - 07.1987] AE92,EE90 GRAY,TRIM1# |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-05 Lever Sub-Assy, Hood Lock Control[05.1987 - 08.1987] AE92..XL;EE90..RHD;EE90..LHD..3D;EE90..LHD..5D..(GL,STD) DARK BEIGE,TRIM4# |
53601-10020-05 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[05.1987 - 08.1987] AE92..XL;EE90..RHD;EE90..LHD..3D;EE90..LHD..5D..(GL,STD) DARK BEIGE,TRIM4# |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-23 Lever Sub-Assy, Hood Lock Control[07.1987 - 08.1989] AE92,EE90 GRAY,TRIM1# |
53601-10020-23 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[07.1987 - 08.1989] AE92,EE90 GRAY,TRIM1# |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-24 Lever Sub-Assy, Hood Lock Control[05.1987 - 08.1987] AE92..XL;EE90..LHD..GL;EE90..LHD..3D..XL DARK BLUE,TRIM8# |
53601-10020-24 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[05.1987 - 08.1987] AE92..XL;EE90..LHD..GL;EE90..LHD..3D..XL DARK BLUE,TRIM8# |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-B1 Lever Sub-Assy, Hood Lock Control[08.1990 - 07.1992] AE92,EE90..GCC,GEN SHADOW GRAY,TRIM1# |
53601-10020-B1 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[08.1990 - 07.1992] AE92,EE90..GCC,GEN SHADOW GRAY,TRIM1# |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-E0 Lever Sub-Assy, Hood Lock Control[09.1988 - 08.1989] AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
53601-10020-E0 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[09.1988 - 08.1989] AE92,EE90..GL,STD,XL DARK BEIGE,TRIM4# |
53601-10020-C0 |
US $35.47 |
||
|
53601
|
53601
53601-10020-J0 Lever Sub-Assy, Hood Lock Control[09.1988 - 08.1989] AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
53601-10020-J0 |
US $36.40 |
||
| replacement | |||||
|
53601
|
53601
53601-10020-C0 Lever Sub-Assy, Hood Lock Control[09.1988 - 08.1989] AE92..XL..GEN;EE90..LHD..(GL,XL) DARK BLUE,TRIM8# |
53601-10020-C0 |
US $35.47 |
||
|
53630
|
53630
53630-12260
Cable Assy, Hood Lock Control
[08.1989 - 06.1991] AE92..RHD..XL..GEN |
53630-12260 |
— | ||
|
53630
|
53630
53630-12280 Cable Assy, Hood Lock Control[05.1987 - 08.1989] AE92..RHD..XL..GEN |
53630-12280 |
US $24.32 |
||
|
53630B
|
53630B
90467-09043 Clamp, Hood Lock Control Cable[05.1987 - 08.1993] AE92,EE90 |
90467-09043 |
from US $1.42 |
||
|
9007502404
|
9007502404
90075-02404 New Genuine Part |
90075-02404 |
US $1.75 |
||
|
9010506108
|
9010506108
90105-06108
New Genuine Part
|
90105-06108 |
— | ||
| replacement | |||||
|
9010506108
|
9010506108
90105-06192 New Genuine Part |
90105-06192 |
US $2.15 |
||
|
9010508087
|
9010508087
90105-08087 New Genuine Part |
90105-08087 |
US $2.15 |
||
|
9010908088
|
9010908088
90109-08088
New Genuine Part
|
90109-08088 |
— | ||
| replacement | |||||
|
9010908088
|
9010908088
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.76 |
||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
