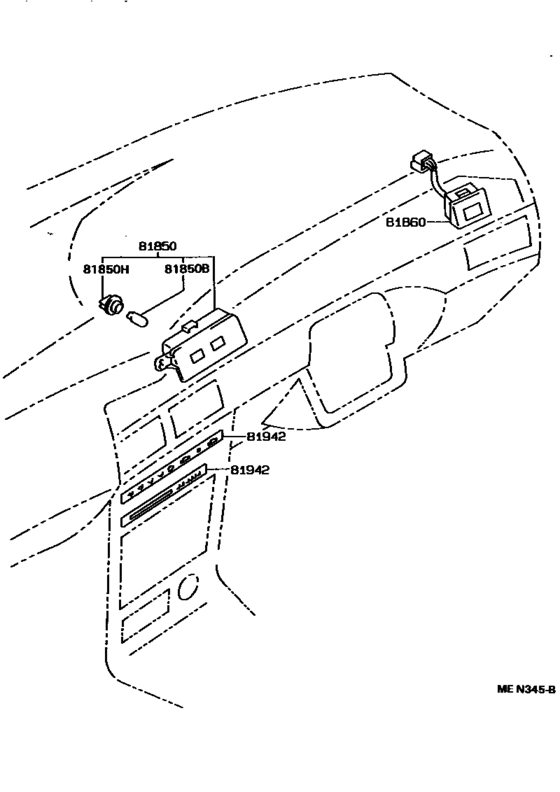

Indicator ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81850
|
81850
81850-12190 Lamp Assy, Indicator[05.1987 - 06.1991] AE92..RHD..XL..GEN |
81850-12190 |
US $77.17 |
||
|
81850B
|
81850B
84999-50010 Bulb, Indicator Lamp[05.1987 - 06.1991] AE92..XL..GEN 12V 3.4W |
84999-50010 |
US $3.14 |
||
|
81850H
|
81850H
84999-50110 Socket, Indicator Lamp[05.1987 - 06.1991] AE92..XL..GEN |
84999-50110 |
US $7.57 |
||
|
81942
|
81942
81942-12240 Sheet, Heater Control Name[05.1987 - 08.1993] EE90..SA;AE92..RHD..(2D,5D) UPR |
81942-12240 |
US $9.61 |
||
|
81942
|
81942
81942-12250 Sheet, Heater Control Name[05.1987 - 08.1993] EE90..SA;AE92..RHD..(2D,5D) LWR |
81942-12250 |
US $7.34 |
