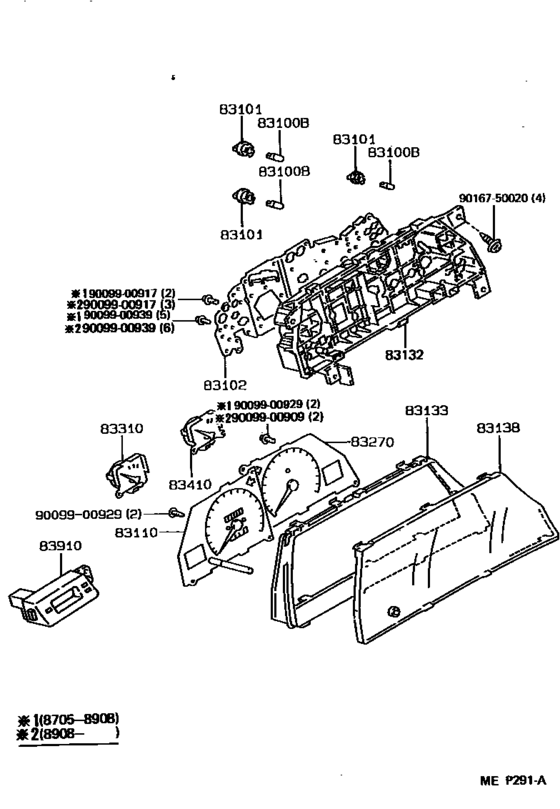

Meter ([05.1987 - ] (8705- )AE92..RHD..XL..GEN) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 2D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1987 - 08.1993] EE90;AE92..GCC;AE92..RHD..(STD,XL) 12V 3.4W,BLUE CAP |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1987 - 08.1993] AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL) 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE92..RHD..XL..GEN 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE92..RHD..XL..GEN 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1987 - 06.1991] AE92..RHD..XL..GEN 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1987 - 08.1993] AE92..STD;AE92..RHD..XL..GEN;EE90..RHD..(STD,XL) 14V 1.4W BULB |
83101-14040 |
US $2.44 |
||
|
83102
|
83102
83247-13390
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1989 - 06.1991] AE92..RHD..XL..GEN |
83247-13390 |
— | ||
|
83102
|
83102
83247-1E040
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 08.1989] AE92..RHD..XL..GEN |
83247-1E040 |
— | ||
|
83110
|
83110
83110-1E180 Speedometer Assy[05.1987 - 08.1989] AE92..RHD..XL..GEN |
83110-1E180 |
US $355.26 |
||
|
83110
|
83110
83110-1E181 Speedometer Assy[08.1989 - 06.1991] AE92..RHD..XL..GEN |
83110-1E181 |
US $419.33 |
||
|
83132
|
83132
83132-1A050
Case, Combination Meter
[05.1987 - 08.1989] AE92..RHD..XL..GEN |
83132-1A050 |
— | ||
|
83132
|
83132
83132-1A370
Case, Combination Meter
[08.1989 - 06.1991] AE92..RHD..XL..GEN |
83132-1A370 |
— | ||
|
83133
|
83133
83133-1A190
Plate, Combination Meter, No.1
[05.1987 - 06.1991] AE92..RHD..XL..GEN |
83133-1A190 |
— | ||
|
83138
|
83138
83138-12830
Glass, Speedometer
[05.1987 - 06.1991] AE92..RHD..XL..GEN |
83138-12830 |
— | ||
|
83270
|
83270
83242-1A690
Tachometer Assy, Engine
[05.1987 - 08.1989] AE92..RHD..XL..GEN |
83242-1A690 |
— | ||
|
83270
|
83270
83242-1E270 Tachometer Assy, EngineENGINE [08.1989 - 06.1991] AE92..RHD..XL..GEN |
83242-1E270 |
US $486.30 |
||
|
83310
|
83310
83243-1A110 Gage Assy, Fuel Receiver[05.1987 - 08.1989] AE92..RHD..XL..GEN |
83243-1A110 |
US $122.30 |
||
|
83310
|
83310
83243-1A550
Gage Assy, Fuel Receiver
[08.1989 - 06.1991] AE92..RHD..XL..GEN |
83243-1A550 |
— | ||
|
83410
|
83410
83244-1A530 Gage Assy, Water Temperature Receiver[05.1987 - 08.1989] AE92..RHD..XL..GEN |
83244-1A530 |
US $58.68 |
||
|
83410
|
83410
83244-1A750
Gage Assy, Water Temperature Receiver
[08.1989 - 06.1991] AE92..RHD..XL..GEN |
83244-1A750 |
— | ||
|
83910
|
83910
83910-12420 Clock Assy[05.1987 - 06.1991] AE92..RHD..XL..GEN |
83910-12420 |
US $413.50 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
