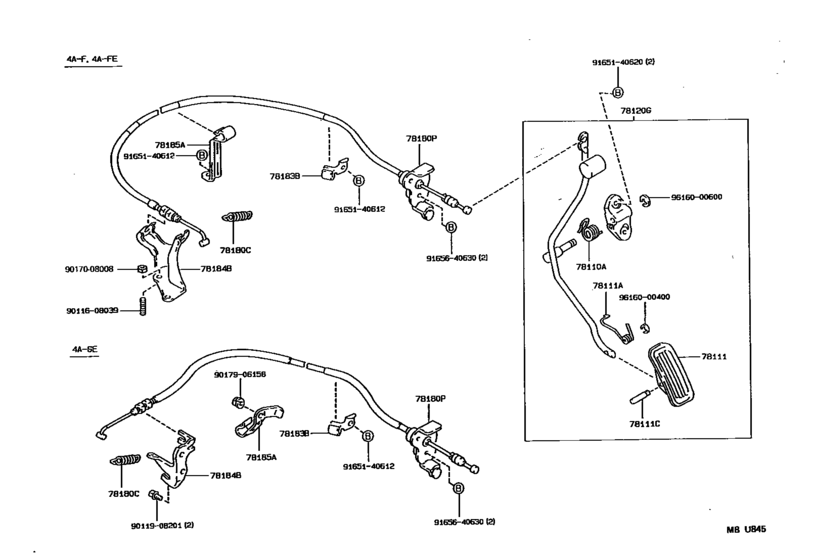

Accelerator Link ([05.1987 - ] (8705- )AE9#..RHD) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-18025 Spring (For Accelerator Pedal Rod)[05.1987 - 08.1993] AE9#,EE9#..GL,SE,SR5,STD,XL |
90508-18025 |
US $7.43 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[05.1987 - 08.1993] AE9#,CE90,EE9# |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-20056 Spring (For Accelerator Pedal)[05.1987 - 08.1993] AE9#,CE90,EE9# |
90508-20056 |
US $7.28 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[05.1987 - 08.1993] AE9#,CE90,EE9# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-12080
Rod Assy, Accelerator Pedal
[05.1987 - 08.1993] AE9#,EE9#..RHD..(GL,SE,SR5,STD,XL) |
78120-12080 |
— | ||
|
78180P
|
78180P
78180-12780
Cable Assy, Accelerator Control
[05.1987 - 08.1989] AE9#..RHD..(GL,SE,XL)..(GEN,SA) |
78180-12780 |
— | ||
| replacement | |||||
|
78180P
|
78180P
78180-12781 Cable Assy, Accelerator ControlACCELERATOR CONTROL [05.1987 - 08.1989] AE9#..RHD..(GL,SE,XL)..(GEN,SA) |
78180-12781 |
US $46.74 |
||
|
78183B
|
78183B
78183-12100 Clamp, Accelerator Control Cable[05.1987 - 08.1989] AE9#,EE9#..RHD TYPE A |
78183-12100 |
US $11.79 |
||
|
78184B
|
78184B
78184-12230
Bracket, Accelerator Control Cable
[05.1987 - 08.1990] AE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) |
78184-12230 |
— | ||
|
78185A
|
78185A
78183-12140 Clamp, Accelerator Control Cable[05.1987 - 08.1993] AE9#..RHD..(GL,SE,XL)..(GEN,SA) |
78183-12140 |
US $11.65 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $2.18 |
||
|
9011908201
|
9011908201
90119-08201 Bolt (for Transmission Control Cable Bracket) |
90119-08201 |
US $2.62 |
||
| replacement | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.86 |
||
|
9165640630
|
9165640630
91656-40630 New Genuine Part |
91656-40630 |
US $1.89 |
||
| replacement | |||||
|
9165640630
|
9165640630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
