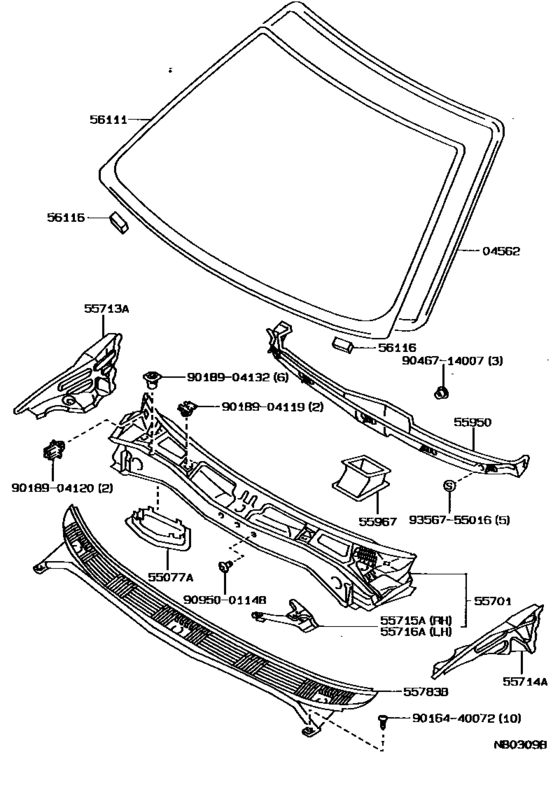

Cowl Panel & Windshield Glass ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[05.1987 - 08.1989] AE9#,CE90,EE9# |
04562-12010 |
from US $35.28 |
||
|
55077A
|
55077A
55077-12080 Cover Sub-Assy, Heater Air Duct HoleHEATER AIR DUCT HOLE [05.1987 - 05.1992] AE9#,EE9#..RHD..GEN |
55077-12080 |
US $28.25 |
||
|
55701
|
55701
55700-12450 Panel Sub-Assy, Cowl[05.1987 - 01.1988] AE92..RHD..(GL,XL) |
55700-12450 |
US $500.86 |
||
| replacement | |||||
|
55701
|
55701
55700-12460 Panel Sub-Assy, Cowl[05.1987 - 01.1988] AE92..RHD..(GL,XL) |
55700-12460 |
US $499.41 |
||
|
55701
|
55701
55700-12460 Panel Sub-Assy, Cowl[01.1988 - 08.1993] AE95..RHD;AE92..RHD..(LB,SED)..(GL,SE,XL) |
55700-12460 |
US $499.41 |
||
|
55713A
|
55713A
55713-12070 Panel, Cowl Top Side, Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
55713-12070 |
US $44.84 |
||
|
55714A
|
55714A
55714-12070 Panel, Cowl Top Side, Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
55714-12070 |
US $44.84 |
||
|
55715A
|
55715A
55715-12090 Brace, Cowl Top To Apron, Rh[05.1987 - 08.1993] AE9#,CE90,EE9# |
55715-12090 |
US $14.27 |
||
|
55716A
|
55716A
55716-12090 Brace, Cowl Top To Apron, Lh[05.1987 - 08.1993] AE9#,CE90,EE9# |
55716-12090 |
US $14.27 |
||
|
55783B
|
55783B
55708-12020 Louver, Cowl Top Ventilator, Center No.1[05.1987 - 08.1993] AE9#,EE9#..RHD |
55708-12020 |
US $216.94 |
||
|
55950
|
55950
55950-12100 Nozzle Assy, Defroster[05.1987 - 08.1993] AE9#,EE9#..RHD |
55950-12100 |
US $67.70 |
||
|
55967
|
55967
55967-12010 Nozzle, Defroster, Lower[05.1987 - 08.1993] AE9#,EE9#..RHD |
55967-12010 |
US $18.78 |
||
|
56111
|
56111
56111-12880
Glass, Windshield
[05.1987 - 08.1989] AE92,CE90,EE90..SED..GEN *ZT,T=5.0 |
56111-12880 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-1A220 Glass, Windshield[05.1987 - 08.1989] AE92,CE90,EE90..SED..GEN *ZT,T=5.0 |
56111-1A220 |
US $1,236.14 |
||
|
56111
|
56111
56111-12890 Glass, Windshield[05.1987 - 08.1987] AE92,EE90..RHD..SED..GL *LAM,T=5.3; AE92,EE90..RHD..SED..(STD,XL) *LAM,T=5.3; AE92,CE90,EE90..LHD..SED..(STD,XL) *LAM,T=5.3 |
56111-12890 |
US $1,236.14 |
||
| replacement | |||||
|
56111
|
56111
56111-1A220 Glass, Windshield[05.1987 - 08.1987] AE92,EE90..RHD..SED..GL *LAM,T=5.3; AE92,EE90..RHD..SED..(STD,XL) *LAM,T=5.3; AE92,CE90,EE90..LHD..SED..(STD,XL) *LAM,T=5.3 |
56111-1A220 |
US $1,236.14 |
||
|
56111
|
56111
56111-1A010
Glass, Windshield
[05.1987 - 08.1987] AE92,EE90..SED..(GL,STD) *TZT,T=5.0; AE92,CE90,EE90..SED..XL *TZT,T=5.0 |
56111-1A010 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-1A270
Glass, Windshield
[05.1987 - 08.1987] AE92,EE90..SED..(GL,STD) *TZT,T=5.0; AE92,CE90,EE90..SED..XL *TZT,T=5.0 |
56111-1A270 |
— | ||
|
56111
|
56111
56111-1A020 Glass, Windshield[05.1987 - 08.1987] CE90,EE90..SED;AE92..SED..(GL,XL) *TL,T=5.3 |
56111-1A020 |
US $1,336.61 |
||
| replacement | |||||
|
56111
|
56111
56111-1A270
Glass, Windshield
[05.1987 - 08.1987] CE90,EE90..SED;AE92..SED..(GL,XL) *TL,T=5.3 |
56111-1A270 |
— | ||
|
56111
|
56111
56111-1A220 Glass, Windshield[08.1987 - 08.1989] AE92,EE90..RHD..SED..GL..GEN *LAM,T=4.7; AE92,EE90..RHD..SED..(STD,XL)..GEN *LAM,T=4.7; EE97;AE95,CE90..SED;AE92,EE90..LHD..SED..(STD,XL)..GEN *LAM,T=4.7 |
56111-1A220 |
US $1,236.14 |
||
|
56111
|
56111
56111-1A230 Glass, Windshield[08.1987 - 07.1992] EE90..XL..GCC;EE90..5F..STD;AE95,CE90..SED;EE9#..(SED,WG)..GEN;AE92..(SED,WG)..(GL ,GT,SE,XL)..(GCC,GEN) *TL,T=4.7 |
56111-1A230 |
US $1,336.61 |
||
| replacement | |||||
|
56111
|
56111
56111-1A270
Glass, Windshield
[08.1987 - 07.1992] EE90..XL..GCC;EE90..5F..STD;AE95,CE90..SED;EE9#..(SED,WG)..GEN;AE92..(SED,WG)..(GL ,GT,SE,XL)..(GCC,GEN) *TL,T=4.7 |
56111-1A270 |
— | ||
|
56116
|
56116
56116-24010 Spacer, Windshield Glass[05.1987 - 08.1993] AE9#,CE90,EE9# |
56116-24010 |
US $4.12 |
||
|
9016440072
|
9016440072
90164-40072 Screw |
90164-40072 |
US $1.75 |
||
|
9018904119
|
9018904119
90189-04119 New Genuine Part |
90189-04119 |
US $1.05 |
||
|
9018904120
|
9018904120
90189-04120 GROMMET SCREW |
90189-04120 |
US $1.75 |
||
|
9018904132
|
9018904132
90189-04132 New Genuine Part |
90189-04132 |
US $2.33 |
||
|
9046714007
|
9046714007
90467-14007 Clip Or Clamp(For Ventilation Hose) |
90467-14007 |
US $2.04 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
