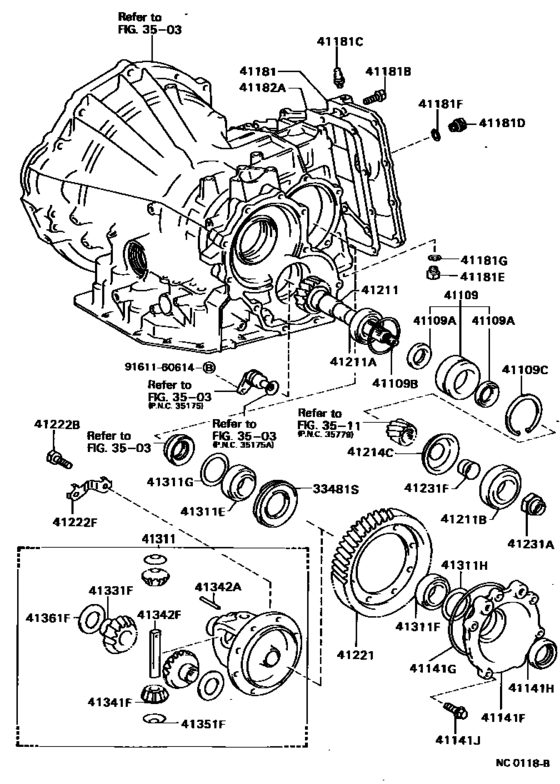

Front Axle Housing & Differential ([05.1987 - ] A131L,A132L (8705- )3FC) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-12050
Gear, Speedometer Drive (Atm)
[05.1987 - 08.1993] AE92,EE90..3FC N=25,NO MARK |
33481-12050 |
— | ||
|
41109
|
41109
41109-32010 Cage Sub-Assy, Differential Drive Pinion Bearing[05.1987 - 08.1993] AE92..3FC |
41109-32010 |
US $43.10 |
||
|
41109A
|
41109A
90310-34005 Seal, Oil (For Differential Drive Pinion Bearing Cage)[05.1987 - 08.1993] AE92,EE90..3FC |
90310-34005 |
US $3.58 |
||
|
41109B
|
41109B
90301-65003 Ring, O (For Differential Drive Pinion Bearing Cage)[05.1987 - 08.1993] AE92,EE90..3FC |
90301-65003 |
US $9.26 |
||
|
41109C
|
41109C
90521-76002
Ring, Hole Snap (For Diff. Drive Pinion Bearing Cage)
[05.1987 - 08.1993] AE92,EE90..3FC |
90521-76002 |
— | ||
|
41141F
|
41141F
41141-12010 Retainer, Front Differential Side Bearing[05.1987 - 09.1987] AE92,EE90..3FC |
41141-12010 |
US $80.08 |
||
| replacements | |||||
|
41141F
|
41141F
41141-12021 Retainer, Front Differential Side Bearing[05.1987 - 09.1987] AE92,EE90..3FC |
41141-12021 |
US $84.45 |
||
|
41141F
|
41141F
90311-34022 Seal, Type T Oil, No.1(For Cvt)[05.1987 - 09.1987] AE92,EE90..3FC |
90311-34022 |
from US $4.30 |
||
|
41141F
|
41141F
41141-12020 Retainer, Rear Differential Side Bearing[09.1987 - 08.1993] AE92,EE90..3FC |
41141-12020 |
US $84.45 |
||
| replacements | |||||
|
41141F
|
41141F
41141-12021 Retainer, Front Differential Side Bearing[09.1987 - 08.1993] AE92,EE90..3FC |
41141-12021 |
US $84.45 |
||
|
41141F
|
41141F
90311-34022 Seal, Type T Oil, No.1(For Cvt)[09.1987 - 08.1993] AE92,EE90..3FC |
90311-34022 |
from US $4.30 |
||
|
41141G
|
41141G
90301-99026 Ring, O(For Rear Differential Side Bearing Retainer)[05.1987 - 08.1993] AE92,EE90..3FC |
90301-99026 |
US $4.66 |
||
| replacement | |||||
|
41141G
|
41141G
90301-99142 Ring, O (For Brake Piston No.4)[05.1987 - 08.1993] AE92,EE90..3FC |
90301-99142 |
US $4.40 |
||
|
41141H
|
41141H
90311-34005 Seal, Oil (For Transaxle Case)[05.1987 - 09.1987] AE92,EE90..3FC |
90311-34005 |
US $3.93 |
||
| replacement | |||||
|
41141H
|
41141H
90311-34012 Oil Seal[05.1987 - 09.1987] AE92,EE90..3FC |
90311-34012 |
from US $6.27 |
||
|
41141H
|
41141H
90311-34012 Oil Seal[09.1987 - 08.1993] AE92,EE90..3FC |
90311-34012 |
from US $6.27 |
||
|
41141J
|
41141J
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
[05.1987 - 08.1993] AE92,EE90..3FC *8-1.25PX25-25 |
91611-60825 |
— | ||
| replacement | |||||
|
41141J
|
41141J
91611-B0825 Bolt(For Clutch Release Cylinder Setting)[05.1987 - 08.1993] AE92,EE90..3FC *8-1.25PX25-25 |
91611-B0825 |
from US $1.11 |
||
|
41181
|
41181
41181-12020 Cover, Front Differential Carrier[05.1987 - 08.1993] AE92,EE90..3FC |
41181-12020 |
US $47.90 |
||
|
41181B
|
41181B
90119-08369
Bolt (For Front Differential Carrier Cover Setting)
[05.1987 - 08.1993] AE92,EE90..3FC |
90119-08369 |
— | ||
|
41181C
|
41181C
90930-03031 Plug, Breather(For Parking Cover)[05.1987 - 08.1993] AE92,EE90..3FC |
90930-03031 |
from US $6.34 |
||
|
41181D
|
41181D
90341-18002 Plug, No.1[05.1987 - 08.1989] AE92,EE90..3FC |
90341-18002 |
from US $3.59 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[05.1987 - 08.1993] AE92,EE90..3FC |
90341-18021 |
from US $2.32 |
||
|
41181F
|
41181F
90430-18008 Gasket[05.1987 - 08.1993] AE92,EE90..3FC |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
41181F
|
41181F
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.1987 - 08.1993] AE92,EE90..3FC |
90430-T0021 |
US $1.01 |
||
|
41181G
|
41181G
90430-18008 Gasket[05.1987 - 08.1987] AE92..3FC |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[05.1987 - 08.1987] AE92..3FC |
90430-T0021 |
US $1.01 |
||
|
41182A
|
41182A
41182-12010 Gasket, Differential Carrier Cover[05.1987 - 08.1993] AE92,EE90..3FC |
41182-12010 |
US $3.64 |
||
|
41211
|
41211
41211-12160 Pinion, Differential Drive[05.1987 - 08.1993] AE92..3FC..(GEN,SA) |
41211-12160 |
US $253.34 |
||
|
41211
|
41211
41211-20200
Pinion, Differential Drive
[11.1987 - 04.1988] AE92..3FC *AXC=-602 |
41211-20200 |
— | ||
|
41211A
|
41211A
90366-35013 Bearing (For Rear Drive Pinion Rear)[05.1987 - 08.1993] AE92..3FC |
90366-35013 |
US $37.13 |
||
| replacement | |||||
|
41211A
|
41211A
90366-35090 Bearing (For Rear Drive Pinion Rear)TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) [05.1987 - 08.1993] AE92..3FC |
90366-35090 |
US $37.13 |
||
|
41211B
|
41211B
90366-40010 Bearing (For Rear Drive Pinion Front)[05.1987 - 08.1993] AE92,EE90..3FC |
90366-40010 |
from US $31.01 |
||
|
41214C
|
41214C
41214-32010 Slinger, Rear Differential Drive Pinion Oil[05.1987 - 08.1993] AE92,EE90..3FC |
41214-32010 |
US $3.20 |
||
|
41221
|
41221
41221-12160 Gear, Front Differential Ring[01.1989 - 02.1991] AE92..3FC..GEN *AXC=-602 |
41221-12160 |
US $186.37 |
||
| replacements | |||||
|
41221
|
41221
90105-11040 Bolt (For Rear Differential Ring Gear Set)[01.1989 - 02.1991] AE92..3FC..GEN *AXC=-602 |
90105-11040 |
US $2.33 |
||
|
41221
|
41221
41221-52281 Gear, Front Differential Ring[01.1989 - 02.1991] AE92..3FC..GEN *AXC=-602 |
41221-52281 |
US $102.14 |
||
|
41221
|
41221
41221-12210 Gear, Front Differential Ring[05.1987 - 08.1989] AE92..3FC |
41221-12210 |
US $186.37 |
||
| replacement | |||||
|
41221
|
41221
41221-12360 Gear, Front Differential Ring[05.1987 - 08.1989] AE92..3FC |
41221-12360 |
US $160.16 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[05.1987 - 08.1993] EE90..WG;AE92,EE97;EE90..3FC |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[05.1987 - 08.1993] AE92,EE90..ATM |
41222-12050 |
US $3.49 |
||
|
41231A
|
41231A
90179-20004 Nut(For Counter Driven Gear)[05.1987 - 08.1993] AE92,EE90..3FC |
90179-20004 |
US $4.69 |
||
|
41231F
|
41231F
41231-32010
Spacer, Rear Differential Drive Pinion Bearing
[05.1987 - 08.1993] AE92,EE90..3FC |
41231-32010 |
— | ||
|
41311
|
41311
41301-12100 Case, Front Differential[05.1987 - 02.1989] AE92..3FC |
41301-12100 |
US $464.46 |
||
| replacement | |||||
|
41311
|
41311
41301-12051 Case, Front Differential[05.1987 - 02.1989] AE92..3FC |
41301-12051 |
US $464.46 |
||
|
41311
|
41311
41301-12101 Case, Front Differential[02.1989 - 08.1993] AE92..3FC |
41301-12101 |
US $463.01 |
||
| replacement | |||||
|
41311
|
41311
41301-12051 Case, Front Differential[02.1989 - 08.1993] AE92..3FC |
41301-12051 |
US $464.46 |
||
|
41311E
|
41311E
90368-38006
Bearing(For Rear Differential Case)
[05.1987 - 08.1993] AE92,EE90..ATM |
90368-38006 |
— | ||
| replacement | |||||
|
41311E
|
41311E
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..ATM |
90368-38002 |
US $15.72 |
||
|
41311F
|
41311F
90368-38006
Bearing(For Rear Differential Case)
[05.1987 - 08.1993] AE92,EE90..3FC |
90368-38006 |
— | ||
| replacement | |||||
|
41311F
|
41311F
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC |
90368-38002 |
US $15.72 |
||
|
41311G
|
41311G
90201-41002 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.60 |
90201-41002 |
US $5.39 |
||
|
41311G
|
41311G
90201-41003 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.65 |
90201-41003 |
US $5.39 |
||
|
41311G
|
41311G
90201-41004 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.70 |
90201-41004 |
US $5.39 |
||
|
41311G
|
41311G
90201-41005 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.75 |
90201-41005 |
US $5.39 |
||
|
41311G
|
41311G
90201-41006 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.80 |
90201-41006 |
US $5.39 |
||
|
41311G
|
41311G
90201-41007 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.85 |
90201-41007 |
US $5.39 |
||
|
41311G
|
41311G
90201-41008
Washer, Plate (For Front Differential Case Front)
[05.1987 - 08.1993] AE92,EE90..3FC T=1.90 |
90201-41008 |
— | ||
|
41311G
|
41311G
90201-41009 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=1.95 |
90201-41009 |
US $5.39 |
||
|
41311G
|
41311G
90201-41010 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..ATM T=2.00 |
90201-41010 |
US $5.39 |
||
|
41311G
|
41311G
90201-41011 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.05 |
90201-41011 |
US $5.39 |
||
|
41311G
|
41311G
90201-41012 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.10 |
90201-41012 |
US $5.39 |
||
|
41311G
|
41311G
90201-41013 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.15 |
90201-41013 |
US $5.39 |
||
|
41311G
|
41311G
90201-41014 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.20 |
90201-41014 |
US $5.39 |
||
|
41311G
|
41311G
90201-41015
Washer, Plate (For Front Differential Case Front)
[05.1987 - 08.1993] AE92,EE90..3FC T=2.25 |
90201-41015 |
— | ||
|
41311G
|
41311G
90201-41016 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.30 |
90201-41016 |
US $5.39 |
||
|
41311G
|
41311G
90201-41017 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.35 |
90201-41017 |
US $5.39 |
||
|
41311G
|
41311G
90201-41018 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.40 |
90201-41018 |
US $5.39 |
||
|
41311G
|
41311G
90201-41019 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.45 |
90201-41019 |
US $5.39 |
||
|
41311G
|
41311G
90201-41020
Washer, Plate (For Front Differential Case Front)
[05.1987 - 08.1993] AE92,EE90..3FC T=2.50 |
90201-41020 |
— | ||
|
41311G
|
41311G
90201-41021
Washer, Plate (For Front Differential Case Front)
[05.1987 - 08.1993] AE92,EE90..3FC T=2.55 |
90201-41021 |
— | ||
|
41311G
|
41311G
90201-41022 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.60 |
90201-41022 |
US $5.39 |
||
|
41311G
|
41311G
90201-41023 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.65 |
90201-41023 |
US $5.39 |
||
|
41311H
|
41311H
90201-41012 Washer, Plate (For Front Differential Case Front)[05.1987 - 08.1993] AE92,EE90..3FC T=2.10 |
90201-41012 |
US $5.39 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[05.1987 - 08.1993] EE90..WG;AE92,EE97;EE90..3FC |
41331-12011 |
from US $32.15 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[05.1987 - 08.1993] EE90..WG;AE92,EE97;EE90..3FC |
41341-12030 |
US $23.06 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[05.1987 - 06.1991] EE90..WG;EE90..3FC;AE92,CE90,EE97 |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-12020 Shaft, Rear Differential Pinion[05.1987 - 02.1989] EE90..WG;EE90..3FC;AE92,EE97 |
41342-12020 |
US $24.61 |
||
| replacement | |||||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[05.1987 - 02.1989] EE90..WG;EE90..3FC;AE92,EE97 |
41342-12140 |
US $15.24 |
||
|
41342F
|
41342F
41342-12110 Shaft, Rear Differential Pinion[02.1989 - 03.1989] AE92,EE90..ATM |
41342-12110 |
US $26.35 |
||
| replacement | |||||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[02.1989 - 03.1989] AE92,EE90..ATM |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[05.1987 - 08.1993] EE90..WG;AE92,EE97;EE90..3FC |
41351-12020 |
from US $1.41 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 08.1993] AE92..ATM T=0.95 |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 08.1993] AE92..ATM T=1.00 |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 08.1993] AE92..ATM T=1.05 |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 08.1993] AE92..ATM T=1.10 |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 08.1993] AE92..ATM T=1.15 |
41361-17050 |
US $2.62 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[05.1987 - 08.1993] AE92..ATM T=1.20 |
41361-17060 |
US $2.62 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
