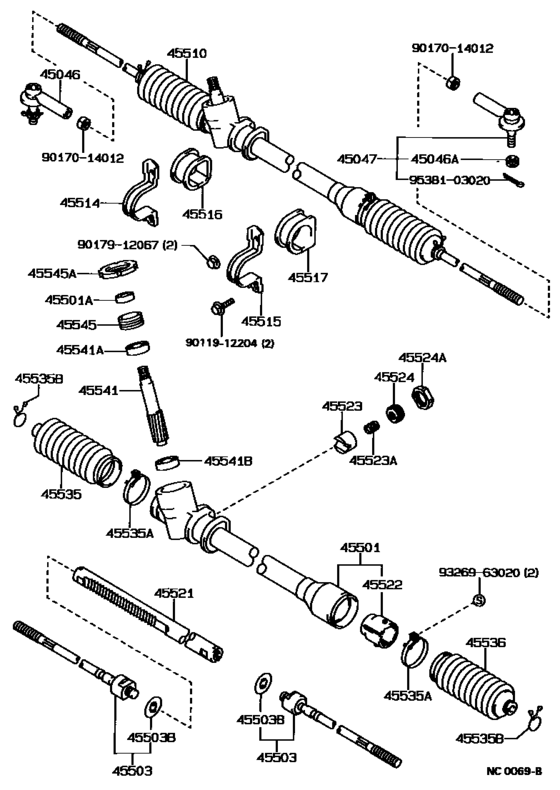

Front Steering Gear & Link ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-19175 End Sub-Assy, Tie Rod[05.1987 - 08.1989] AE9#,CE90,EE9# |
45046-19175 |
from US $50.13 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[05.1987 - 08.1993] AE9#,CE90,EE9# |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45046-19175 End Sub-Assy, Tie Rod[05.1987 - 08.1989] AE9#,CE90,EE9# |
45046-19175 |
from US $50.13 |
||
|
45501
|
45501
45501-12110 Housing Sub-Assy, Steering Rack[05.1987 - 08.1993] AE9#,EE9#..RHD |
45501-12110 |
US $180.54 |
||
|
45501A
|
45501A
90311-15001
Seal, Oil(For Steering Bevel Gear Housing)
[05.1987 - 08.1988] AE9#,CE90,EE9# |
90311-15001 |
— | ||
| replacement | |||||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[05.1987 - 08.1988] AE9#,CE90,EE9# |
90311-15002 |
from US $2.06 |
||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[05.1989 - 08.1989] AE9#,CE90,EE9# |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-19125 End Sub-Assy, Steering Rack[05.1987 - 08.1989] AE9#,CE90,EE9# |
45503-19125 |
from US $91.44 |
||
|
45503
|
45503
45503-19135 End Sub-Assy, Steering Rack[05.1987 - 02.1988] AE9#,CE90,EE9# W(POWER STEERING) |
45503-19135 |
US $109.88 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[05.1987 - 08.1989] AE9#,CE90,EE9# OD=35.2 |
90214-14009 |
from US $1.68 |
||
|
45510
|
45510
45510-12210 Gear Assy, Steering[05.1987 - 08.1989] AE92,EE9#..RHD..(GL,STD,XL)..GEN |
45510-12210 |
US $640.64 |
||
|
45514
|
45514
45514-12070 Bracket, Steering Rack Housing, No.1[05.1987 - 09.1990] EE90..GCC,GEN;AE9#,CE90,EE97 W(POWER STEERING) |
45514-12070 |
US $12.52 |
||
|
45514
|
45514
45514-12080 Bracket, Steering Rack Housing, No.1[05.1987 - 05.1989] AE9#,CE90,EE9# |
45514-12080 |
US $12.52 |
||
|
45514
|
45514
45514-12081
Bracket, Steering Rack Housing, No.1
[05.1989 - 08.1993] AE9#,CE90,EE9# |
45514-12081 |
— | ||
|
45515
|
45515
45515-12140 Bracket, Steering Rack Housing, No.2[05.1987 - 08.1991] EE9#..RHD..GEN W(POWER STEERING); AE9#..RHD W(POWER STEERING) |
45515-12140 |
US $11.36 |
||
|
45515
|
45515
45515-12160 Bracket, Steering Rack Housing, No.2[05.1987 - 05.1989] AE9#,CE90,EE9# |
45515-12160 |
US $12.52 |
||
| replacement | |||||
|
45515
|
45515
45515-12161
Bracket, Steering Rack Housing, No.2
[05.1987 - 05.1989] AE9#,CE90,EE9# |
45515-12161 |
— | ||
|
45515
|
45515
45515-12161
Bracket, Steering Rack Housing, No.2
[05.1989 - 08.1993] AE9#,CE90,EE9# |
45515-12161 |
— | ||
|
45516
|
45516
45516-12050
Grommet, Steering Rack Housing, No.1
[05.1989 - 08.1993] AE9#,CE90,EE9# |
45516-12050 |
— | ||
|
45516
|
45516
45516-20010 Grommet, Steering Rack Housing, No.1[05.1987 - 05.1989] AE9#,CE90,EE9# |
45516-20010 |
from US $13.62 |
||
|
45517
|
45517
45517-12110 Grommet, Steering Rack Housing, No.2[05.1987 - 08.1988] AE9#,CE90,EE9# W(POWER STEERING) |
45517-12110 |
US $16.77 |
||
|
45517
|
45517
45517-12120
Grommet, Steering Rack Housing, No.2
[05.1987 - 08.1993] AE9#,CE90,EE9# |
45517-12120 |
— | ||
|
45521
|
45521
45521-12190 Rack, Steering[05.1987 - 08.1989] AE92,EE9#..RHD..(GL,STD,XL)..GEN |
45521-12190 |
US $126.67 |
||
|
45522
|
45522
45522-17010
Bush, Steering Rack
[05.1987 - 08.1989] AE9#,CE90,EE9#..ARL,GCC,GEN |
45522-17010 |
— | ||
| replacement | |||||
|
45522
|
45522
45522-17020 Bush, Steering Rack[05.1987 - 08.1989] AE9#,CE90,EE9#..ARL,GCC,GEN |
45522-17020 |
from US $6.08 |
||
|
45523
|
45523
45523-12040 Guide, Rack(For Steering Gear)[05.1987 - 08.1987] AE92,EE90 |
45523-12040 |
US $6.29 |
||
|
45523
|
45523
45523-16040
Guide, Rack(For Power Steering)
[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
45523-16040 |
— | ||
|
45523A
|
45523A
90501-26038 Spring(For Power Steering Rack Guide)[05.1987 - 08.1990] AE92..GT..SA;AE92,EE9#..GL,SE,STD,XL |
90501-26038 |
US $2.62 |
||
|
45523A
|
45523A
90501-26042 Spring(For Power Steering Rack Guide)[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
90501-26042 |
US $2.04 |
||
|
45524
|
45524
45524-12030 Cap, Steering Rack Guide Spring[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
45524-12030 |
US $7.13 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[05.1987 - 08.1987] AE92,EE90 |
45524-16010 |
US $7.98 |
||
|
45524A
|
45524A
90179-32001 Nut(For Steering Rack Guide Spring Cap)[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
90179-32001 |
US $3.20 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[05.1987 - 08.1987] AE92,EE90 |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-12011 Boot, Steering Rack, No.1[05.1987 - 08.1989] AE9#,CE90,EE9# |
45535-12011 |
from US $30.58 |
||
|
45535
|
45535
45535-12050 Boot, Steering Rack, No.1[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
45535-12050 |
US $22.42 |
||
| replacement | |||||
|
45535
|
45535
45535-12051 Boot, Steering Rack, No.1[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
45535-12051 |
US $28.22 |
||
|
45535A
|
45535A
90460-55009 Clamp(For Steering Rack Boot)[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
90460-55009 |
US $7.17 |
||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[05.1987 - 08.1989] AE9#,CE90,EE9# NO.1 BOOT |
90461-10273 |
from US $5.56 |
||
|
45535A
|
45535A
90949-01082 Clamp(For Power Steering Rack Boot)[05.1987 - 08.1989] AE9#,CE90,EE9# NO.2 BOOT |
90949-01082 |
US $5.56 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[05.1987 - 08.1989] AE9#,CE90,EE9# |
90467-18003 |
from US $2.15 |
||
|
45536
|
45536
45535-12050 Boot, Steering Rack, No.1[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
45535-12050 |
US $22.42 |
||
| replacement | |||||
|
45536
|
45536
45535-12051 Boot, Steering Rack, No.1[05.1987 - 02.1988] AE9#,EE9#..RHD W(POWER STEERING) |
45535-12051 |
US $28.22 |
||
|
45536
|
45536
45536-12030 Boot, Steering Rack, No.2[05.1987 - 08.1989] AE9#,CE90,EE9# |
45536-12030 |
US $26.94 |
||
|
45541
|
45541
45541-12050 Pinion, Steering[05.1987 - 08.1989] AE92..GT; EE9#..RHD; AE92..RHD..LB..GL; AE92..RHD..SED..5F..(GL,XL); AE92..RHD..SED..ATM |
45541-12050 |
US $47.47 |
||
|
45541A
|
45541A
90363-15003 Bearing, Radial Ball(For Steering Rack Housing)[05.1987 - 08.1987] AE92,EE90 |
90363-15003 |
US $35.95 |
||
|
45541B
|
45541B
90363-13001
Bearing, Radial Ball(For Steering Rack Housing)
[05.1987 - 08.1987] AE92,EE90 |
90363-13001 |
— | ||
|
45545
|
45545
45545-10010 Screw, Pinion Bearing Adjusting[05.1987 - 08.1987] AE92,EE90 |
45545-10010 |
US $13.80 |
||
|
45545A
|
45545A
90179-38001 Nut(For Pinion Bearing Adjusting Screw)[05.1987 - 08.1987] AE92,EE90 |
90179-38001 |
US $8.21 |
||
|
9011912204
|
9011912204
90119-12204
New Genuine Part
|
90119-12204 |
— | ||
| replacement | |||||
|
9011912204
|
9011912204
90119-12137
New Genuine Part
|
90119-12137 |
— | ||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9017912067
|
9017912067
90179-12067
New Genuine Part
|
90179-12067 |
— | ||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.97 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
