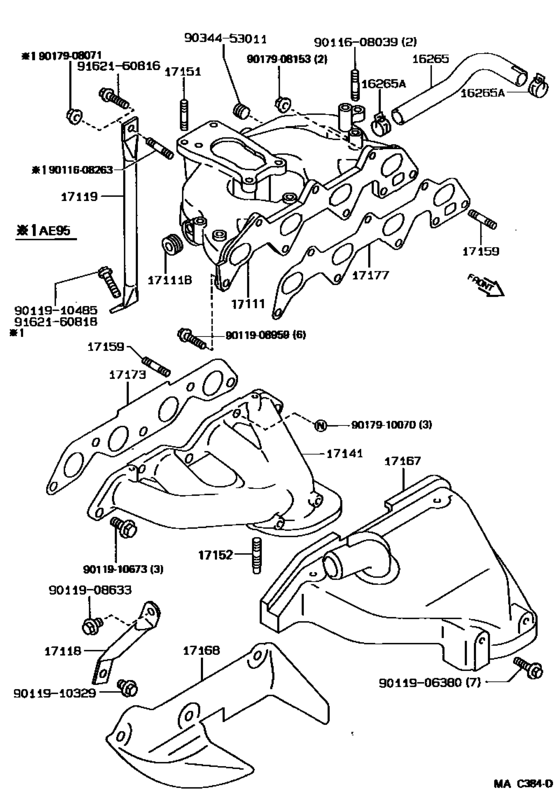

Manifold ([05.1987 - ] (8705- )4AF) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
16265-15020
Hose, Intake Manifold Water
[05.1987 - 08.1990] 4AF..AE9# |
16265-15020 |
— | ||
|
16265A
|
16265A
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.1987 - 11.1987] 4AF..AE9#; 2E..EE9# |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
16265A
|
16265A
90467-21006 Clip(For Ventilation Hose No.2)[05.1987 - 11.1987] 4AF..AE9#; 2E..EE9# |
90467-21006 |
US $2.87 |
||
|
16265A
|
16265A
90467-21006 Clip(For Ventilation Hose No.2)[11.1987 - 08.1990] 4AF..AE9# |
90467-21006 |
US $2.87 |
||
|
17111
|
17111
17101-16080 Manifold, IntakeINTAKE [05.1987 - 08.1990] 4AF..AE9# |
17101-16080 |
US $327.60 |
||
|
17111B
|
17111B
90344-54003 Plug, Tight, No.2(For Cylinder Block)[05.1987 - 08.1990] 4AF..AE9# |
90344-54003 |
from US $3.32 |
||
|
17118
|
17118
17118-16050 Stay, Manifold[05.1987 - 08.1990] 4AF..AE9#..3FC,5F;4AF..AE92..SE..SA |
17118-16050 |
US $17.76 |
||
|
17119
|
17119
17139-15020 Stay, Manifold, No.2[05.1987 - 08.1993] 4AF..AE92 |
17139-15020 |
US $34.80 |
||
|
17141
|
17141
17141-16200
Manifold, Exhaust
[05.1987 - 08.1989] 4AF..AE9# |
17141-16200 |
— | ||
|
17151
|
17151
92112-40832 Bolt, Stud(For Manifold To Carburetor)[05.1987 - 08.1988] 4AF..AE9# |
92112-40832 |
US $2.48 |
||
|
17151
|
17151
92112-60832 Bolt, Stud(For Water Outlet Housing)[08.1988 - 08.1990] 4AF..AE9# |
92112-60832 |
US $3.76 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[05.1987 - 05.1988] 4AF..AE9# |
90116-10058 |
from US $2.32 |
||
|
17152
|
17152
90116-10146 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 04.1989] 4AF..AE9# |
90116-10146 |
from US $1.81 |
||
|
17159
|
17159
92112-60825 Bolt, Stud(For Oil Filter)[05.1987 - 08.1990] 4AF#..AE9# INTAKE MANIFOLD |
92112-60825 |
US $2.87 |
||
|
17159
|
17159
92112-61028 Bolt, Stud(For Manifold To Cylinder Head)[07.1989 - 08.1990] 4AF#..AE9# EXHAUST MANIFOLD |
92112-61028 |
US $4.30 |
||
|
17159
|
17159
92112-61032 Bolt, Stud(For Manifold To Cylinder Head)[05.1987 - 07.1989] 4AF#..AE9# EXHAUST MANIFOLD |
92112-61032 |
US $3.06 |
||
|
17167
|
17167
17107-16070
Insulator, Exhaust Manifold Heat, No.1
[05.1987 - 08.1990] 4AF..AE9#..GEN W(HOT AIR INTAKE) |
17107-16070 |
— | ||
| replacement | |||||
|
17167
|
17167
17107-16071
Insulator, Exhaust Manifold Heat, No.1
[05.1987 - 08.1990] 4AF..AE9#..GEN W(HOT AIR INTAKE) |
17107-16071 |
— | ||
|
17167
|
17167
17167-16090 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [05.1987 - 08.1989] 4AF..AE9# |
17167-16090 |
US $67.70 |
||
| replacement | |||||
|
17167
|
17167
17167-16150
Insulator, Exhaust Manifold Heat, No.1
[05.1987 - 08.1989] 4AF..AE9# |
17167-16150 |
— | ||
|
17168
|
17168
17168-16050
Insulator, Exhaust Manifold Heat, No.2
[05.1987 - 08.1989] 4AF..AE9# |
17168-16050 |
— | ||
| replacement | |||||
|
17168
|
17168
17168-16100
Insulator, Exhaust Manifold Heat, No.2
[05.1987 - 08.1989] 4AF..AE9# |
17168-16100 |
— | ||
|
17173
|
17173
17173-15010 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 4AF#..AE9# |
17173-15010 |
US $28.25 |
||
| replacement | |||||
|
17173
|
17173
17173-15011 Gasket, Exhaust Manifold To Head[05.1987 - 12.1989] 4AF#..AE9# |
17173-15011 |
from US $18.84 |
||
|
17177
|
17177
17171-16030
Gasket, Intake Manifold To Head, No.1
[05.1987 - 12.1989] 4AF..AE9# |
17171-16030 |
— | ||
| replacement | |||||
|
17177
|
17177
17171-16031 Gasket, Intake Manifold To Head, No.1[05.1987 - 12.1989] 4AF..AE9# |
17171-16031 |
US $17.14 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $2.18 |
||
|
9011608263
|
9011608263
90116-08263 New Genuine Part |
90116-08263 |
US $1.89 |
||
| replacement | |||||
|
9011608263
|
9011608263
90126-08002 New Genuine Part |
90126-08002 |
US $4.08 |
||
|
9011906380
|
9011906380
90119-06380
New Genuine Part
|
90119-06380 |
— | ||
| replacement | |||||
|
9011906380
|
9011906380
90119-06817 BOLT WWASHER |
90119-06817 |
from US $0.86 |
||
|
9011908633
|
9011908633
90119-08633 New Genuine Part |
90119-08633 |
from US $1.60 |
||
|
9011908959
|
9011908959
90119-08959 New Genuine Part |
90119-08959 |
US $1.22 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9011910485
|
9011910485
90119-10485 New Genuine Part |
90119-10485 |
US $2.48 |
||
|
9011910673
|
9011910673
90119-10673 New Genuine Part |
90119-10673 |
US $3.58 |
||
|
9017908071
|
9017908071
90179-08071 New Genuine Part |
90179-08071 |
US $3.05 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9034453011
|
9034453011
90344-53011 Plug, W/head Taper Screw, No.1 |
90344-53011 |
US $4.30 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
