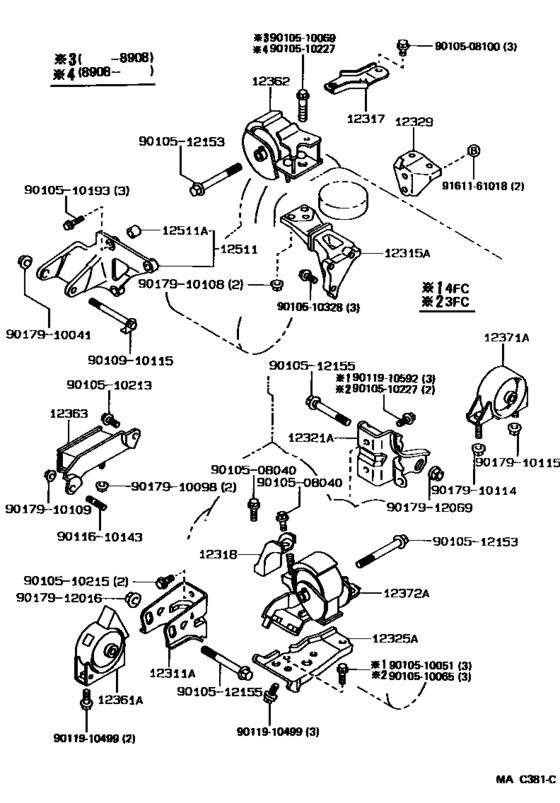

Mounting ([05.1987 - ] (8705- )4AF#..ATM) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311A
|
12311A
12311-16040 Bracket, Engine Mounting, Front(For Transverse Engine)[05.1987 - 08.1993] 4AF,4AGE..AE92 |
12311-16040 |
US $20.82 |
||
|
12315A
|
12315A
12315-15070
Bracket, Engine Mounting, Rh(For Transverse Engine)
[05.1987 - 08.1990] 4AF#..AE9# |
12315-15070 |
— | ||
|
12317
|
12317
12317-15010 Stay, Engine Mounting, Rh[05.1987 - 08.1989] 4AF#..AE9# |
12317-15010 |
US $31.01 |
||
|
12318
|
12318
12318-15010 Stay, Engine Mounting, Lh[05.1987 - 08.1993] 4AF..AE92..3FC |
12318-15010 |
US $38.88 |
||
|
12321A
|
12321A
12321-15060
Bracket, Engine Mounting, Rear(For Transverse Engine)
[05.1987 - 08.1993] 2E..EE90..3FC; 4AF..AE92..3FC |
12321-15060 |
— | ||
|
12325A
|
12325A
12325-15050 Bracket, Engine Mounting, Lh(For Transverse Engine)[05.1987 - 08.1993] 2E..EE90..3FC; 4AF..AE92..3FC |
12325-15050 |
US $33.49 |
||
|
12329
|
12329
12329-15010 Support, Engine Mounting Stay[05.1987 - 08.1993] 4AF#..AE9# |
12329-15010 |
US $18.93 |
||
|
12361A
|
12361A
12361-16090 Insulator, Engine Mounting, Front(For Transverse Engine)[05.1987 - 08.1993] 2E..EE90..3FC; 4AF..AE92..ATM |
12361-16090 |
US $113.57 |
||
|
12362
|
12362
12362-15130 Insulator, Engine Mounting, Rh(For Transverse Engine)[05.1987 - 08.1989] 4AF..AE92 |
12362-15130 |
US $189.28 |
||
|
12363
|
12363
12363-15010 Insulator, Engine Mounting, Center[05.1987 - 08.1993] 4AF..AE92..ATM |
12363-15010 |
US $94.64 |
||
|
12371A
|
12371A
12371-15230 Insulator, Engine Mounting, Rear[05.1987 - 08.1993] 2E..EE90..3FC; 4AF..AE92..3FC |
12371-15230 |
US $94.64 |
||
|
12372A
|
12372A
12372-15110 Insulator, Engine Mounting, Lh(For Transverse Engine)[05.1987 - 06.1990] 2E..EE9#; 4AF..AE92..3FC,5F |
12372-15110 |
US $213.16 |
||
|
12511
|
12511
12511-15040 Bracket, Alternator, No.1[05.1987 - 08.1990] 4AF#..AE9# |
12511-15040 |
US $80.08 |
||
|
12511A
|
12511A
90387-10013 Bush, Alternator Bracket[12.1987 - 08.1990] 4AF#..AE9# |
90387-10013 |
US $4.22 |
||
|
9010508040
|
9010508040
90105-08040
Bolt(For Plate Bolt Lock)
|
90105-08040 |
— | ||
| replacement | |||||
|
9010508040
|
9010508040
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010510051
|
9010510051
90105-10051
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
|
90105-10051 |
— | ||
| replacement | |||||
|
9010510051
|
9010510051
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.87 |
||
|
9010510065
|
9010510065
90105-10065 Bolt(For Transaxle Case & Engine Setting) |
90105-10065 |
US $4.08 |
||
| replacement | |||||
|
9010510065
|
9010510065
91512-81022 Bolt (For Drive Shaft Bearing Bracket Setting No.1) |
91512-81022 |
US $2.87 |
||
|
9010510069
|
9010510069
90105-10069 Bolt (For Front Lower Ball Joint) |
90105-10069 |
US $2.77 |
||
|
9010510193
|
9010510193
90105-10193
Bolt(For Torque Arm Setting)
|
90105-10193 |
— | ||
| replacement | |||||
|
9010510193
|
9010510193
91512-81025 Bolt(For Torque Arm Setting) |
91512-81025 |
from US $1.13 |
||
|
9010510213
|
9010510213
90105-10213 New Genuine Part |
90105-10213 |
US $2.62 |
||
|
9010510215
|
9010510215
90105-10215 New Genuine Part |
90105-10215 |
US $2.48 |
||
|
9010510227
|
9010510227
90105-10227 New Genuine Part |
90105-10227 |
US $3.20 |
||
| replacement | |||||
|
9010510227
|
9010510227
91552-G1040 BOLT FLANGE |
91552-G1040 |
US $2.15 |
||
|
9010510328
|
9010510328
90105-10328 Bolt (For Rear Differential Carrier Cover Setting) |
90105-10328 |
US $2.04 |
||
|
9010512153
|
9010512153
90105-12153 BOLT |
90105-12153 |
US $5.91 |
||
|
9010512155
|
9010512155
90105-12155 BOLT WASHER BASED |
90105-12155 |
US $5.91 |
||
|
9010910115
|
9010910115
90109-10115 New Genuine Part |
90109-10115 |
US $5.39 |
||
|
9011610143
|
9011610143
90116-10143 New Genuine Part |
90116-10143 |
US $2.62 |
||
|
9011910499
|
9011910499
90119-10499 BOLT WWASHER |
90119-10499 |
US $3.58 |
||
|
9011910592
|
9011910592
90119-10592 New Genuine Part |
90119-10592 |
US $3.20 |
||
|
9017910041
|
9017910041
90179-10041 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10041 |
US $2.33 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.69 |
||
|
9017910109
|
9017910109
90179-10109 New Genuine Part |
90179-10109 |
US $1.16 |
||
|
9017910114
|
9017910114
90179-10114 New Genuine Part |
90179-10114 |
US $2.62 |
||
|
9017910115
|
9017910115
90179-10115 New Genuine Part |
90179-10115 |
US $3.49 |
||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.51 |
||
|
9017912069
|
9017912069
90179-12069 New Genuine Part |
90179-12069 |
US $3.32 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
