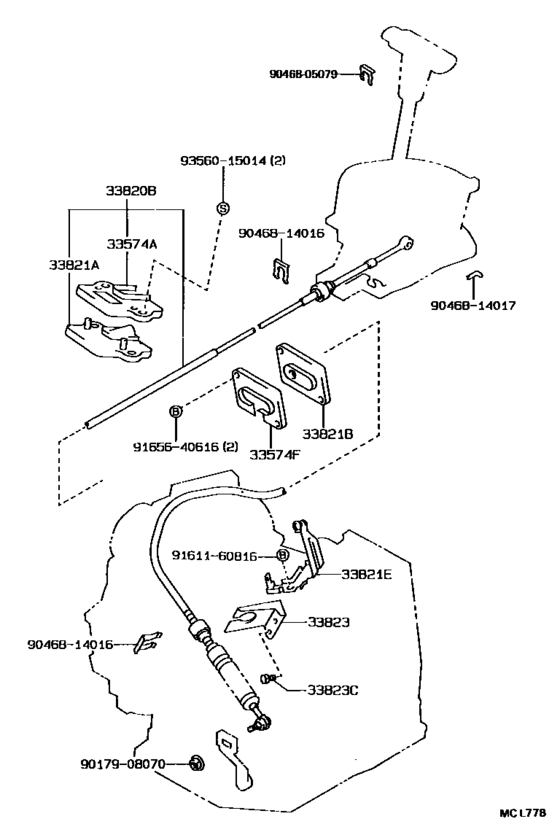

Shift Lever & Retainer ([05.1987 - ] (8705- )ATM) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 08.1989
- Gear Shift Type
- 3FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33574A
|
33574A
33574-12040
Retainer, Shift Cable Grommet, No.1
[05.1987 - 08.1993] AE9#,EE90..ATM |
33574-12040 |
— | ||
|
33574F
|
33574F
33574-12030 Retainer, Dust Seal (For Floor Shift)[05.1987 - 08.1993] AE9#,EE90..ATM |
33574-12030 |
US $7.43 |
||
|
33820B
|
33820B
33820-12020
Cable Assy, Transmission Control
[05.1987 - 04.1989] AE92..3FC |
33820-12020 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-12100
Cable Assy, Transmission Control
[05.1987 - 04.1989] AE92..3FC |
33820-12100 |
— | ||
|
33820B
|
33820B
33820-12100
Cable Assy, Transmission Control
[04.1989 - 08.1993] AE92..3FC |
33820-12100 |
— | ||
|
33821A
|
33821A
90480-01395 Grommet, No.1 (For Transmission Control Cable)[05.1987 - 08.1993] AE9#,EE90..ATM |
90480-01395 |
US $6.84 |
||
|
33821B
|
33821B
90480-01391
Grommet, No.2 (For Transmission Control Cable)
[05.1987 - 08.1993] AE9#,EE90..ATM |
90480-01391 |
— | ||
|
33821E
|
33821E
90949-01397 Clamp, No.1 (For Transmission Control Cable)[05.1987 - 08.1989] AE92..ATM |
90949-01397 |
US $9.17 |
||
| replacement | |||||
|
33821E
|
33821E
90949-01508 Clamp, No.1 (For Transmission Control Cable)[05.1987 - 08.1989] AE92..ATM |
90949-01508 |
US $8.88 |
||
|
33823
|
33823
33823-12050 Bracket, Transmission Control Cable, No.1[05.1987 - 08.1993] AE92..3FC |
33823-12050 |
US $16.02 |
||
|
33823C
|
33823C
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
[05.1987 - 08.1993] AE92,EE90..3FC |
91611-60816 |
— | ||
| replacement | |||||
|
33823C
|
33823C
91611-B0816 Bolt[05.1987 - 08.1993] AE92,EE90..3FC |
91611-B0816 |
from US $1.01 |
||
|
9017908070
|
9017908070
90179-08070 Nut (For Connecting Rod Swivel) |
90179-08070 |
US $2.04 |
||
|
9046805079
|
9046805079
90468-05079 New Genuine Part |
90468-05079 |
US $1.46 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.82 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.25 |
||
