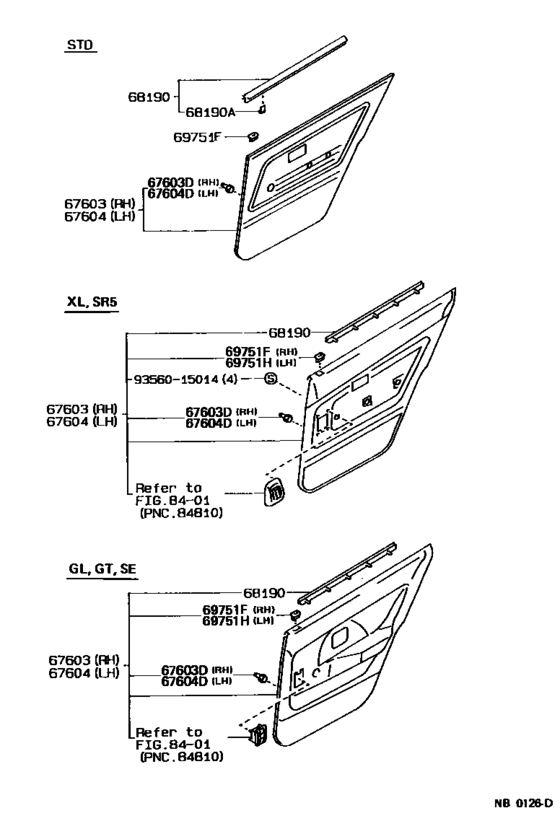

Rear Door Panel & Glass ([05.1987 - 08.1989] (8705-8908)) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603D
|
67603D
67771-12040 Clip (For Quarter Inside Trim Board)[05.1987 - 01.1989] AE9#,CE90,EE9#..XL |
67771-12040 |
from US $2.38 |
||
|
67604D
|
67604D
67771-12040 Clip (For Quarter Inside Trim Board)[05.1987 - 01.1989] AE9#,CE90,EE9#..XL |
67771-12040 |
from US $2.38 |
||
|
68190
|
68190
68173-12160
Weatherstrip Assy, Rear Door Glass, Inner
[05.1987 - 01.1989] AE9#,CE90,EE9#..(SED,WG)..XL |
68173-12160 |
— | ||
|
69751F
|
69751F
69751-12030-03 Holder, Front Door Lock Control Knob[10.1988 - 11.1988] AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL SHADOW GRAY,TRIM1# |
69751-12030-03 |
US $4.66 |
||
|
69751F
|
69751F
69751-12030-05 Holder, Front Door Lock Control Knob[10.1988 - 11.1988] AE95..LHD..WG;AE9#,CE90,EE90..(LB,SED)..XL DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
69751F
|
69751F
69751-12030-06 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-06 |
US $4.66 |
||
| replacement | |||||
|
69751F
|
69751F
69751-12030-03 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751F
|
69751F
69751-12030-E0 Holder, Front Door Lock Control Knob[07.1991 - 08.1993] AE92,EE90..XL..(GCC,SA);AE92,CE90,EE90..LHD..SED..XL..GEN BROWN,TRIM4#; EE90..STD..SA W(FULL TRIM(VINYL)),BROWN,TRIM4# |
69751-12030-E0 |
US $4.66 |
||
| replacement | |||||
|
69751F
|
69751F
69751-12030-03 Holder, Front Door Lock Control Knob[07.1991 - 08.1993] AE92,EE90..XL..(GCC,SA);AE92,CE90,EE90..LHD..SED..XL..GEN BROWN,TRIM4#; EE90..STD..SA W(FULL TRIM(VINYL)),BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751F
|
69751F
69751-20060-03 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-03 |
US $4.95 |
||
| replacement | |||||
|
69751F
|
69751F
69751-20060-01 Holder, Front Door Locking Button Collar[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-01 |
US $4.95 |
||
|
69751F
|
69751F
69751-20060-25 Holder, Door Locking Button Collar(For Front Door)[10.1987 - 10.1988] AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
69751-20060-25 |
US $5.24 |
||
| replacement | |||||
|
69751F
|
69751F
69751-12030-05 Holder, Front Door Lock Control Knob[10.1987 - 10.1988] AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
69751H
|
69751H
69751-12030-03 Holder, Front Door Lock Control Knob[01.1989 - 08.1989] AE92,EE90..XL..SA SHADOW GRAY,TRIM1#; EE90..RHD..SED..XL..GEN NEW ZEALAND,SHADOW GRAY,TRIM1# |
69751-12030-03 |
US $4.66 |
||
|
69751H
|
69751H
69751-12030-05 Holder, Front Door Lock Control Knob[01.1989 - 08.1989] AE92,EE90..XL..SA DARK BEIGE,TRIM4#; EE90..RHD..SED..XL..GEN NEW ZEALAND,DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
69751H
|
69751H
69751-12030-06 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-06 |
US $4.66 |
||
| replacement | |||||
|
69751H
|
69751H
69751-12030-03 Holder, Front Door Lock Control Knob[08.1989 - 10.1989] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751H
|
69751H
69751-12030-E0 Holder, Front Door Lock Control Knob[10.1989 - 08.1990] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-E0 |
US $4.66 |
||
| replacement | |||||
|
69751H
|
69751H
69751-12030-03 Holder, Front Door Lock Control Knob[10.1989 - 08.1990] AE92,EE90..XL..(GCC,SA);AE9#,CE90,EE90..LHD..XL..GEN BROWN,TRIM4#; AE92..LHD..LB VENEZUELA SPEC,BROWN,TRIM4# |
69751-12030-03 |
US $4.66 |
||
|
69751H
|
69751H
69751-20060-03 Holder, Door Locking Button Collar(For Front Door)[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-03 |
US $4.95 |
||
| replacement | |||||
|
69751H
|
69751H
69751-20060-01 Holder, Front Door Locking Button Collar[05.1987 - 10.1988] AE9#,CE90,EE9#..XL SHADOW GRAY,TRIM1#; AE92..LHD..LB..5F;AE92..LHD..3FC..GL VENEZUELA SPEC,SHADOW GRAY,TRIM1# |
69751-20060-01 |
US $4.95 |
||
|
69751H
|
69751H
69751-20060-25 Holder, Door Locking Button Collar(For Front Door)[10.1987 - 10.1988] AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
69751-20060-25 |
US $5.24 |
||
| replacement | |||||
|
69751H
|
69751H
69751-12030-05 Holder, Front Door Lock Control Knob[10.1987 - 10.1988] AE9#,CE90,EE9#..XL DARK BEIGE,TRIM4# |
69751-12030-05 |
US $4.66 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.25 |
||
