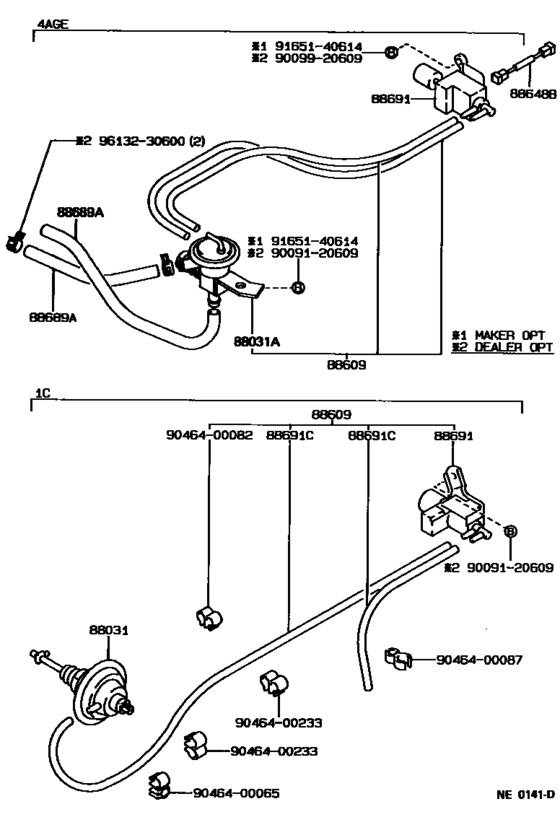

Heating & Air Conditioning - Vacuum Piping ([05.1987 - 08.1989] (8705-8908)CE90 ; (8705-8908)GT,GTI) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- GT
- body
- SED
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031A
|
88031A
88606-12020
Diaphragm Sub-Assy, Idle-Up Actuator
[05.1987 - 08.1993] AE92..GT,GTI |
88606-12020 |
— | ||
|
88609
|
88609
88609-12470
Device Sub-Assy, Idle Up
[05.1987 - 08.1993] AE92..GT,GTI |
88609-12470 |
— | ||
|
88689A
|
88689A
88689-12210
Hose, Vacuum (For Idle Up Device), No.1
[05.1987 - 08.1993] AE92..GT,GTI L=490 |
88689-12210 |
— | ||
|
88689A
|
88689A
88689-12220
Hose, Cooler Vacuum No.1
[05.1987 - 08.1993] AE92..GT,GTI L=260,NO.2 |
88689-12220 |
— | ||
| replacement | |||||
|
88689A
|
88689A
88689-20390
Hose, Cooler Vacuum No.1
[05.1987 - 08.1993] AE92..GT,GTI L=260,NO.2 |
88689-20390 |
— | ||
|
88691
|
88691
88690-12530
Valve, Magnet (For Idle Up Device)
[08.1988 - 08.1993] AE92..GT..SA |
88690-12530 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009920609
|
9009920609
90099-20609
New Genuine Part
|
90099-20609 |
— | ||
|
9046400065
|
9046400065
90464-00065 Clamp, Throttle Cable |
90464-00065 |
US $3.14 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400087
|
9046400087
90464-00087 New Genuine Part |
90464-00087 |
US $6.99 |
||
|
9046400233
|
9046400233
90464-00233
Clamp (For Idle Up Divice), No.1
|
90464-00233 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
