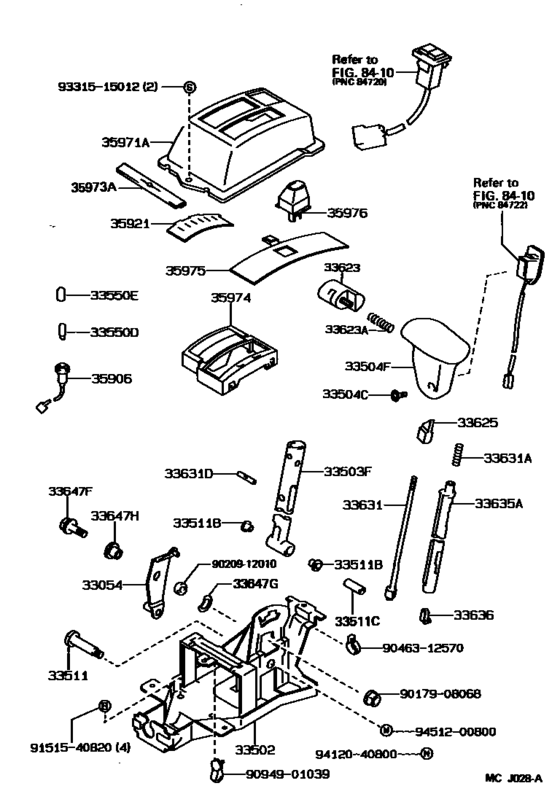

Shift Lever & Retainer ([08.1989 - ] (8908- )4FC) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33054
|
33054
33054-12040 Lever Sub-Assy, Shift, No.2(For Floor Shift)[02.1988 - 08.1993] AE9#..4FC |
33054-12040 |
US $10.48 |
||
|
33502
|
33502
33502-12450
Plate Sub-Assy, Shift Lever
[08.1989 - 08.1993] AE92..4FC |
33502-12450 |
— | ||
|
33503F
|
33503F
33503-12470 Lever Sub-Assy, Shift(For Floor Shift)[08.1989 - 08.1993] AE9#..4FC |
33503-12470 |
US $38.44 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90159-40109 |
US $1.43 |
||
|
33504F
|
33504F
33542-20080-02 Knob Sub-Assy, Shift Lever[08.1989 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
33542-20080-02 |
US $65.96 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[08.1989 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
33542-20081-B1 |
US $69.54 |
||
|
33504F
|
33504F
33542-20080-03
Knob Sub-Assy, Shift Lever
[08.1989 - 08.1993] AE9#..4FC GRAY,TRIM1# |
33542-20080-03 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[08.1989 - 08.1993] AE9#..4FC GRAY,TRIM1# |
33542-20081-B1 |
US $69.54 |
||
|
33504F
|
33504F
33542-20080-04 Knob Sub-Assy, Shift Lever[08.1989 - 05.1992] AE9#..4FC..(ARL,GEN) BLUE,TRIM8# |
33542-20080-04 |
US $65.96 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[08.1989 - 05.1992] AE9#..4FC..(ARL,GEN) BLUE,TRIM8# |
33542-20081-B1 |
US $69.54 |
||
|
33511
|
33511
90101-08108 Bolt(For Shift Lever Sub-Assy)[08.1989 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90101-08108 |
US $2.62 |
||
|
33511B
|
33511B
90386-11012 Bush(For Shift Lever)[08.1989 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90386-11012 |
US $2.62 |
||
|
33511C
|
33511C
90387-08114 Collar (For Shift Lever Plate)[08.1989 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90387-08114 |
US $3.32 |
||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33550E
|
33550E
90339-09004 Cap, Position Indicator Lamp[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90339-09004 |
US $2.33 |
||
| replacement | |||||
|
33550E
|
33550E
90339-09002 Cap, Position Indicator Lamp[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90339-09002 |
US $2.62 |
||
|
33623
|
33623
33623-20020-02 Button, Shift Lever Knob[08.1989 - 06.1991] AE92..SED..4FC..GEN MAROON,TRIM3# |
33623-20020-02 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[08.1989 - 06.1991] AE92..SED..4FC..GEN MAROON,TRIM3# |
33623-20020-C0 |
US $31.60 |
||
|
33623
|
33623
33623-20020-03 Button, Shift Lever Knob[08.1989 - 06.1991] AE9#..4FC GRAY,TRIM1# |
33623-20020-03 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[08.1989 - 06.1991] AE9#..4FC GRAY,TRIM1# |
33623-20020-C0 |
US $31.60 |
||
|
33623
|
33623
33623-20020-04 Button, Shift Lever Knob[08.1989 - 06.1991] AE9#..4FC..(ARL,GEN) BLUE,TRIM8# |
33623-20020-04 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[08.1989 - 06.1991] AE9#..4FC..(ARL,GEN) BLUE,TRIM8# |
33623-20020-C0 |
US $31.60 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[08.1989 - 08.1993] AE9#..4FC |
33625-24010 |
US $5.78 |
||
|
33631
|
33631
33631-16050 Rod, Detent[02.1988 - 08.1993] AE9#..4FC |
33631-16050 |
US $14.41 |
||
|
33631A
|
33631A
90501-08128
Spring, Compression (For Detent Rod)
[08.1989 - 08.1993] AE9#..4FC |
90501-08128 |
— | ||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-12040 Guide, Wire, No.1 (For Shift Lever)[08.1989 - 08.1993] AE9#..4FC |
33635-12040 |
US $9.17 |
||
|
33636
|
33636
33636-35010 Protector, Wire[02.1988 - 08.1993] AE9#..4FC |
33636-35010 |
US $2.87 |
||
|
33647F
|
33647F
90119-08606 Bolt(For Shift Lever No.2)[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90119-08606 |
US $1.89 |
||
|
33647G
|
33647G
90206-12002 Washer, Wave (For Control Link Shaft)[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
90206-12002 |
US $1.75 |
||
|
33647H
|
33647H
90386-12040 Bush (For Control Link Shaft)[08.1989 - 07.1992] EE90..LHD..3FC;AE9#..ATM..(ARL,GCC,GEN) |
90386-12040 |
US $2.62 |
||
|
35906
|
35906
35906-12100 Wire Sub-Assy, Indicator Lamp[08.1989 - 05.1992] AE9#..4FC..(ARL,GEN) |
35906-12100 |
US $13.40 |
||
| replacement | |||||
|
35906
|
35906
35906-26030 Wire Sub-Assy, Indicator Lamp[08.1989 - 05.1992] AE9#..4FC..(ARL,GEN) |
35906-26030 |
US $18.78 |
||
|
35921
|
35921
35921-12280
Plate, Control Position Indicator
[02.1988 - 08.1993] AE9#..4FC |
35921-12280 |
— | ||
|
35971A
|
35971A
35971-12140-02
Housing, Position Indicator, Upper
[08.1989 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
35971-12140-02 |
— | ||
| replacement | |||||
|
35971A
|
35971A
35971-12140-01
Housing, Position Indicator, Upper
[08.1989 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
35971-12140-01 |
— | ||
|
35971A
|
35971A
35971-12140-03
Housing, Position Indicator, Upper
[02.1988 - 08.1993] AE9#..4FC SHADOW GRAY,TRIM1# |
35971-12140-03 |
— | ||
| replacement | |||||
|
35971A
|
35971A
35971-12140-01
Housing, Position Indicator, Upper
[02.1988 - 08.1993] AE9#..4FC SHADOW GRAY,TRIM1# |
35971-12140-01 |
— | ||
|
35971A
|
35971A
35971-12140-04 Housing, Position Indicator, Upper[02.1988 - 05.1992] AE9#..4FC..(ARL,GEN) DARK BLUE,TRIM8# |
35971-12140-04 |
US $33.63 |
||
| replacement | |||||
|
35971A
|
35971A
35971-12140-01
Housing, Position Indicator, Upper
[02.1988 - 05.1992] AE9#..4FC..(ARL,GEN) DARK BLUE,TRIM8# |
35971-12140-01 |
— | ||
|
35973A
|
35973A
35973-12030
Attachment, Position Indicator Housing Cover
[10.1988 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
35973-12030 |
— | ||
|
35974
|
35974
35974-12120
Housing, Position Indicator, Lower
[05.1987 - 08.1993] AE9#..4FC;AE92,EE90..LHD..3FC |
35974-12120 |
— | ||
|
35975
|
35975
35975-12180-02
Cover, Slide (For Position Indicator)
[08.1990 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
35975-12180-02 |
— | ||
| replacement | |||||
|
35975
|
35975
35975-12181-C0 Cover, Slide (For Position Indicator)[08.1990 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
35975-12181-C0 |
US $58.40 |
||
|
35975
|
35975
35975-12180-03 Cover, Slide (For Position Indicator)[08.1989 - 08.1990] EE90..LHD..3FC;AE92..ATM..(GCC,GEN) SHADOW GRAY,TRIM1# |
35975-12180-03 |
US $15.58 |
||
| replacement | |||||
|
35975
|
35975
35975-12181-C0 Cover, Slide (For Position Indicator)[08.1989 - 08.1990] EE90..LHD..3FC;AE92..ATM..(GCC,GEN) SHADOW GRAY,TRIM1# |
35975-12181-C0 |
US $58.40 |
||
|
35975
|
35975
35975-12180-04 Cover, Slide (For Position Indicator)[08.1989 - 09.1990] EE90..LHD..3FC;AE9#..ATM..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
35975-12180-04 |
US $15.58 |
||
| replacement | |||||
|
35975
|
35975
35975-12181-C0 Cover, Slide (For Position Indicator)[08.1989 - 09.1990] EE90..LHD..3FC;AE9#..ATM..(ARL,GCC,GEN) DARK BLUE,TRIM8# |
35975-12181-C0 |
US $58.40 |
||
|
35975
|
35975
35975-12180-B0
Cover, Slide (For Position Indicator)
[09.1990 - 07.1992] EE90..LHD..3FC;AE92..ATM..(GCC,GEN) SHADOW GRAY,TRIM1# |
35975-12180-B0 |
— | ||
| replacement | |||||
|
35975
|
35975
35975-12181-C0 Cover, Slide (For Position Indicator)[09.1990 - 07.1992] EE90..LHD..3FC;AE92..ATM..(GCC,GEN) SHADOW GRAY,TRIM1# |
35975-12181-C0 |
US $58.40 |
||
|
35975
|
35975
35975-12180-J0
Cover, Slide (For Position Indicator)
[09.1990 - 07.1992] EE90..LHD..3FC;AE92..ATM..(GCC,GEN) DARK BLUE,TRIM8# |
35975-12180-J0 |
— | ||
| replacement | |||||
|
35975
|
35975
35975-12181-C0 Cover, Slide (For Position Indicator)[09.1990 - 07.1992] EE90..LHD..3FC;AE92..ATM..(GCC,GEN) DARK BLUE,TRIM8# |
35975-12181-C0 |
US $58.40 |
||
|
35976
|
35976
35976-12050-02 Cover, Slide, No.2 (For Position Indicator)[08.1989 - 09.1990] AE92..SED..4FC..GEN MAROON,TRIM3# |
35976-12050-02 |
US $28.25 |
||
| replacement | |||||
|
35976
|
35976
35976-12050-01
Cover, Slide, No.2 (For Position Indicator)
[08.1989 - 09.1990] AE92..SED..4FC..GEN MAROON,TRIM3# |
35976-12050-01 |
— | ||
|
35976
|
35976
35976-12050-03 Cover, Slide, No.2 (For Position Indicator)[08.1989 - 09.1990] AE9#..4FC..(ARL,GEN) SHADOW GRAY,TRIM1# |
35976-12050-03 |
US $28.25 |
||
| replacement | |||||
|
35976
|
35976
35976-12050-01
Cover, Slide, No.2 (For Position Indicator)
[08.1989 - 09.1990] AE9#..4FC..(ARL,GEN) SHADOW GRAY,TRIM1# |
35976-12050-01 |
— | ||
|
35976
|
35976
35976-12050-04 Cover, Slide, No.2 (For Position Indicator)[08.1990 - 09.1990] AE9#..4FC..(ARL,GEN) DARK BLUE,TRIM8# |
35976-12050-04 |
US $28.25 |
||
| replacement | |||||
|
35976
|
35976
35976-12050-01
Cover, Slide, No.2 (For Position Indicator)
[08.1990 - 09.1990] AE9#..4FC..(ARL,GEN) DARK BLUE,TRIM8# |
35976-12050-01 |
— | ||
|
35976
|
35976
35976-12050-B0
Cover, Slide, No.2 (For Position Indicator)
[09.1990 - 08.1993] AE92..4FC SHADOW GRAY,TRIM1# |
35976-12050-B0 |
— | ||
| replacement | |||||
|
35976
|
35976
35976-12050-01
Cover, Slide, No.2 (For Position Indicator)
[09.1990 - 08.1993] AE92..4FC SHADOW GRAY,TRIM1# |
35976-12050-01 |
— | ||
|
35976
|
35976
35976-12050-D0 Cover, Slide, No.2 (For Position Indicator)[09.1990 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
35976-12050-D0 |
US $28.25 |
||
| replacement | |||||
|
35976
|
35976
35976-12050-01
Cover, Slide, No.2 (For Position Indicator)
[09.1990 - 05.1992] AE92..SED..4FC..GEN MAROON,TRIM3# |
35976-12050-01 |
— | ||
|
35976
|
35976
35976-12050-J0 Cover, Slide, No.2 (For Position Indicator)[09.1990 - 05.1992] AE92..4FC..GEN DARK BLUE,TRIM8# |
35976-12050-J0 |
US $28.25 |
||
| replacement | |||||
|
35976
|
35976
35976-12050-01
Cover, Slide, No.2 (For Position Indicator)
[09.1990 - 05.1992] AE92..4FC..GEN DARK BLUE,TRIM8# |
35976-12050-01 |
— | ||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9020912010
|
9020912010
90209-12010 New Genuine Part |
90209-12010 |
US $1.75 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9094901039
|
9094901039
90949-01039 CLAMP |
90949-01039 |
US $1.60 |
||
|
9151540820
|
9151540820
91515-40820 New Genuine Part |
91515-40820 |
US $2.18 |
||
| replacement | |||||
|
9151540820
|
9151540820
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
