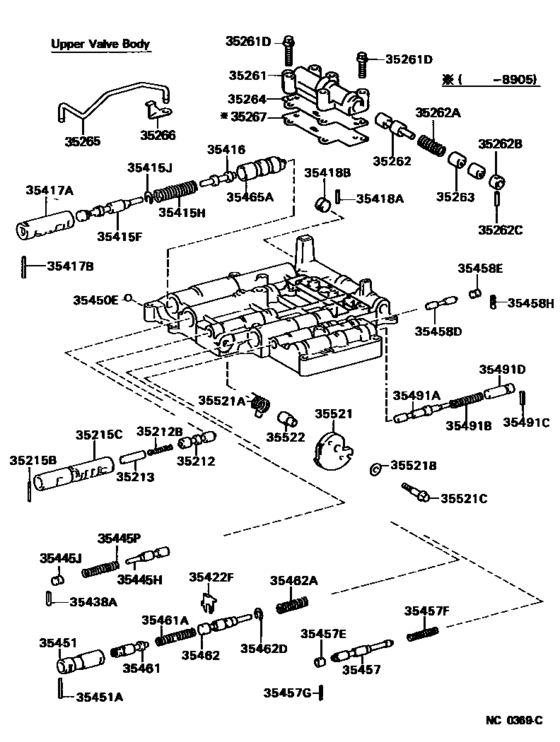

Valve Body & Oil Strainer (Atm) ([02.1988 - ] A240L,A241H (8802- )4FC) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35212
|
35212
35212-12010 Valve, Lock Up Relay[02.1988 - 08.1993] AE9#..4FC |
35212-12010 |
US $20.09 |
||
|
35212B
|
35212B
90501-05010 Spring, Compression (For Lock Up Relay Valve)[02.1988 - 08.1993] AE9#..4FC |
90501-05010 |
US $1.89 |
||
|
35213
|
35213
35213-12010 Valve, Lock Up Relay Control[02.1988 - 08.1993] AE9#..4FC |
35213-12010 |
US $10.34 |
||
|
35215B
|
35215B
90250-03038 Pin, Straight (For Lock Up Relay Valve Sleeve)[02.1988 - 08.1993] AE9#..4FC |
90250-03038 |
US $1.02 |
||
|
35215C
|
35215C
35215-12021 Sleeve, Lock Up Relay Valve[04.1988 - 08.1993] AE9#..4FC |
35215-12021 |
US $57.95 |
||
|
35415F
|
35415F
35415-12020 Valve, Primary Regulator[02.1988 - 08.1993] AE9#..4FC |
35415-12020 |
US $29.41 |
||
|
35415H
|
35415H
90501-16077
Spring, Compression (For Lock Up Relay Valve)
[08.1989 - 07.1992] AE92..ATM..(GCC,GEN) |
90501-16077 |
— | ||
|
35415J
|
35415J
90201-08021 Washer, Plate (For Pressure Regulator Valve)[02.1988 - 08.1993] AE9#..4FC |
90201-08021 |
US $1.16 |
||
|
35416
|
35416
35416-12010 Plunger, Primary Regulator Valve, No.1[02.1988 - 08.1993] AE9#..4FC |
35416-12010 |
US $11.94 |
||
|
35417A
|
35417A
35417-12020 Sleeve, Primary Regulator Valve[02.1988 - 08.1993] AE9#..4FC |
35417-12020 |
US $33.63 |
||
|
35417B
|
35417B
90250-03038 Pin, Straight (For Lock Up Relay Valve Sleeve)[02.1988 - 08.1993] AE9#..4FC |
90250-03038 |
US $1.02 |
||
|
35418A
|
35418A
90250-02007 Pin, Straight (For Lock Up Signal Valve)[02.1988 - 08.1993] AE9#..4FC |
90250-02007 |
US $1.75 |
||
|
35418B
|
35418B
90339-04007 Plug (For Manual Valve)[02.1988 - 08.1993] AE9#..4FC |
90339-04007 |
US $3.20 |
||
|
35422F
|
35422F
35422-22010 Stopper, Valve Vibrating[02.1988 - 08.1993] AE9#..4FC |
35422-22010 |
US $3.49 |
||
|
35438A
|
35438A
35438-22020 Seat (For Direct Clutch Modulator Valve Plug)[02.1988 - 08.1993] AE9#..4FC |
35438-22020 |
US $2.48 |
||
|
35445H
|
35445H
35445-12010 Valve, 2Nd Coast Modulator[02.1988 - 08.1993] AE9#..4FC |
35445-12010 |
US $11.94 |
||
|
35445J
|
35445J
90339-04002 Plug(For Low-High Shift Valve)[08.1989 - 05.1992] AE92..4FC..GEN |
90339-04002 |
US $4.02 |
||
|
35445P
|
35445P
90501-10081 Spring, Compression (For Low Modulator Valve)[08.1989 - 08.1993] AE9#..4FC |
90501-10081 |
US $2.04 |
||
|
35450E
|
35450E
35495-22020 Ball (For Transfer Upper Valve Body)[08.1988 - 08.1993] AE9#..4FC OD=5.535,RUBBER |
35495-22020 |
US $4.66 |
||
|
35450E
|
35450E
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1989 - 03.1990] AE9#..ATM..(ARL,GCC,GEN) OD=6.35 |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
35450E
|
35450E
90080-36191
Ball, Check Valve
[08.1989 - 03.1990] AE9#..ATM..(ARL,GCC,GEN) OD=6.35 |
90080-36191 |
— | ||
|
35451
|
35451
35451-32010
Sleeve, Throttle Valve
[05.1987 - 08.1993] AE9#,EE90..ATM |
35451-32010 |
— | ||
|
35451A
|
35451A
90250-03045 Pin, Straight (For Line Pressure Contorol Solenoid)[05.1987 - 08.1993] AE92..3FC..SE;AE92..ATM..(GL,XL) |
90250-03045 |
US $1.61 |
||
|
35457
|
35457
35457-12010 Valve, Throttle Modulator[02.1988 - 08.1993] AE9#..4FC |
35457-12010 |
US $11.94 |
||
|
35457E
|
35457E
90339-05006 Plug (For Pressure Regulator Valve No.2)[02.1988 - 08.1993] AE9#..4FC |
90339-05006 |
US $3.20 |
||
|
35457F
|
35457F
90501-09040
Spring, Compression (For Throttle Modulator Valve)
[02.1988 - 08.1993] AE9#..4FC |
90501-09040 |
— | ||
|
35457G
|
35457G
90250-02007 Pin, Straight (For Lock Up Signal Valve)[02.1988 - 08.1993] AE9#..4FC |
90250-02007 |
US $1.75 |
||
|
35458D
|
35458D
35458-32020 Valve, Cut Back[05.1987 - 08.1993] AE9#,EE90..ATM |
35458-32020 |
US $9.32 |
||
|
35458E
|
35458E
90339-04002 Plug(For Low-High Shift Valve)[05.1989 - 08.1993] AE9#..ATM |
90339-04002 |
US $4.02 |
||
|
35458H
|
35458H
90282-03010 Key, Straight (For Lock Up Signal Valve)[08.1989 - 05.1992] AE92..4FC..GEN |
90282-03010 |
US $0.87 |
||
|
35461
|
35461
35408-32010
Plug, Down Shift
[05.1987 - 08.1993] AE9#,EE90..ATM |
35408-32010 |
— | ||
|
35461A
|
35461A
90501-10054
Spring, Compression (For Down Shift Plug)
[08.1989 - 03.1992] AE9#,EE90..ATM |
90501-10054 |
— | ||
|
35462
|
35462
35462-12020 Valve, Throttle[08.1989 - 08.1993] AE9#..4FC |
35462-12020 |
US $19.66 |
||
|
35462A
|
35462A
90501-07027
Spring, Compression (For Throttle Valve)
[02.1988 - 08.1993] AE9#..4FC L=29.18 |
90501-07027 |
— | ||
|
35462D
|
35462D
90523-06023 Ring, E (For Throttle Valve)[08.1989 - 08.1993] AE92..4FC;AE95,EE90..ATM;AE92..LHD..3FC |
90523-06023 |
US $1.46 |
||
|
35465A
|
35465A
35465-12010 Sleeve, Primary Regulator Valve Plunger[02.1988 - 08.1993] AE9#..4FC |
35465-12010 |
US $13.69 |
||
|
35491A
|
35491A
35491-12010 Valve, Accumulator Control, No.1[02.1988 - 04.1991] AE9#..4FC |
35491-12010 |
US $15.29 |
||
|
35491A
|
35491A
35491-20010 Valve, Accumulator Control, No.1[04.1991 - 05.1992] AE92..4FC..GEN |
35491-20010 |
US $13.54 |
||
|
35491B
|
35491B
90501-09045 Spring, Compression (For Accumulator Control Valve No.1)[08.1989 - 04.1991] AE9#..4FC |
90501-09045 |
US $2.18 |
||
|
35491B
|
35491B
90501-09111 Spring, Compression (For Accumulator Control Valve No.1)[04.1991 - 05.1992] AE92..4FC..GEN |
90501-09111 |
US $1.89 |
||
|
35491C
|
35491C
90282-03003 Key, Straight (For Lock Up Signal Valve)[02.1988 - 08.1993] AE9#..4FC |
90282-03003 |
US $1.46 |
||
|
35491D
|
35491D
90339-04042 Plug (For Accumulator Control Valve No.1)[04.1991 - 05.1992] AE92..4FC..GEN |
90339-04042 |
US $2.18 |
||
|
35491D
|
35491D
90339-05007 Plug (For Accumulator Control Valve No.1)[02.1988 - 04.1991] AE9#..4FC |
90339-05007 |
US $2.33 |
||
|
35521
|
35521
35521-32010 Cam, Throttle Valve[05.1987 - 05.1992] AE9#,EE90..ATM |
35521-32010 |
US $24.17 |
||
|
35521A
|
35521A
90508-11003 Spring (For Throttle Valve Cam Return)[05.1987 - 08.1993] AE9#,EE90..ATM |
90508-11003 |
US $2.91 |
||
|
35521B
|
35521B
90201-06472 Washer (For Throttle Valve Cam Set)[05.1987 - 08.1993] AE9#,EE90..ATM |
90201-06472 |
US $1.46 |
||
|
35521C
|
35521C
90105-06018 Bolt (For Throttle Valve Cam Set)[08.1989 - 08.1993] AE9#..ATM |
90105-06018 |
US $0.96 |
||
|
35522
|
35522
35522-22010 Pin, Throttle Valve Cam[05.1987 - 08.1993] AE9#,EE90..ATM |
35522-22010 |
US $10.34 |
||
