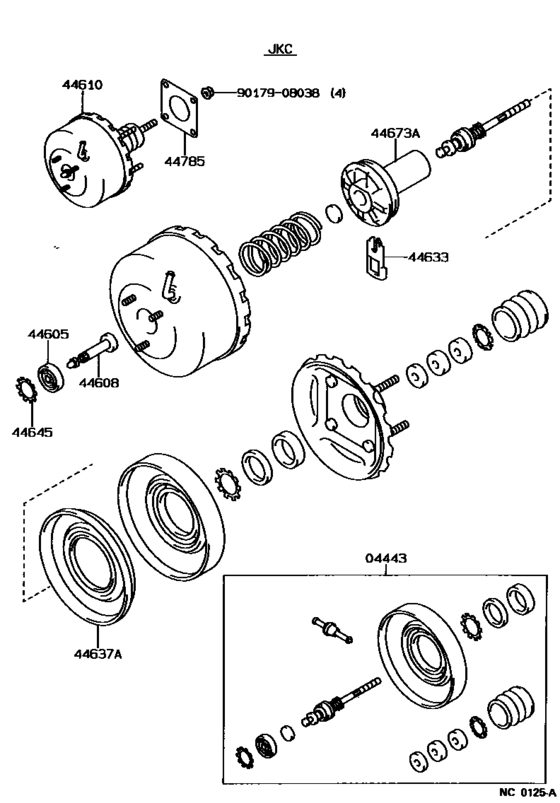

Brake Booster & Vacuum Tube ([05.1987 - ] (8705- )GCC,GEN) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- 3D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04443
|
04443
04443-12500 Booster Kit, Brake[05.1987 - 05.1992] AE92..RHD..GTI |
04443-12500 |
US $96.10 |
||
|
44605
|
44605
44605-10080 Plate & Seal Sub-Assy, Booster[05.1987 - 11.1989] AE92,EE90..GCC,GEN |
44605-10080 |
US $5.07 |
||
|
44608
|
44608
44608-32020 Rod Sub-Assy, Brake Booster Piston[05.1987 - 11.1989] AE92,EE90..GCC,GEN |
44608-32020 |
US $22.01 |
||
|
44610
|
44610
44610-12680 Booster Assy, Brake[05.1987 - 05.1992] AE92..RHD..GTI |
44610-12680 |
US $607.15 |
||
|
44633
|
44633
44633-28130 Key, Booster Valve Plunger[05.1987 - 11.1989] AE92,EE90..GCC,GEN |
44633-28130 |
US $5.39 |
||
|
44637A
|
44637A
44637-32040 Plate, Booster Diaphragm[05.1987 - 05.1992] AE92..GTI |
44637-32040 |
US $63.92 |
||
|
44645
|
44645
44645-10080 Retainer, Booster Push Rod Seal[05.1987 - 11.1989] AE92,EE90..GCC,GEN |
44645-10080 |
US $4.22 |
||
|
44673A
|
44673A
44673-32040 Body, Booster Valve[05.1987 - 05.1992] AE92..GTI |
44673-32040 |
US $78.62 |
||
|
44785
|
44785
44785-32010 Gasket, Brake Booster[05.1987 - 08.1993] AE92,EE90 |
44785-32010 |
US $3.94 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
