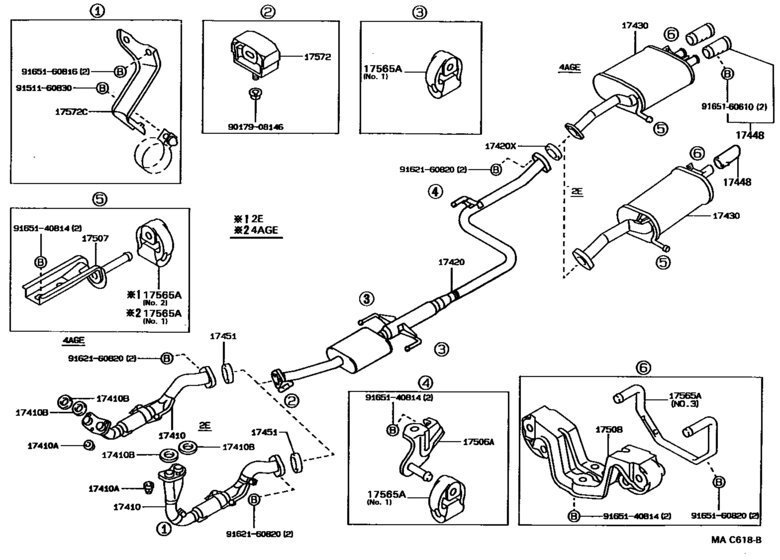

Exhaust Pipe ([05.1987 - ] (8705- )4AGE,2E) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- 3D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-16410
Pipe Assy, Exhaust, Front
[05.1987 - 08.1989] 4AGE..AE92 |
17410-16410 |
— | ||
| replacement | |||||
|
17410
|
17410
17410-16700 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [05.1987 - 08.1989] 4AGE..AE92 |
17410-16700 |
US $291.20 |
||
|
17410
|
17410
17410-16700 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1989 - 08.1993] 4AGE..AE92 |
17410-16700 |
US $291.20 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.1987 - 08.1993] 4A#,2E..AE92,EE90 |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.1987 - 08.1993] 4A#,2E..AE92,EE90 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[05.1987 - 03.1989] 4AGE..AE92 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AGE..AE92 |
90917-06039 |
from US $2.26 |
||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[03.1989 - 08.1993] 4AGE..AE92 |
90917-06039 |
from US $2.26 |
||
|
17420
|
17420
17420-16140 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1987 - 08.1989] 4AGE..AE92 |
17420-16140 |
US $430.98 |
||
|
17420
|
17420
17420-16430 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [08.1989 - 08.1993] 4AGE..AE92 |
17420-16430 |
US $473.20 |
||
|
17420X
|
17420X
90917-06012
Gasket, Exhaust Pipe
[05.1987 - 03.1989] 4AGE..AE92 |
90917-06012 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
|
17420X
|
17420X
90917-06047
Gasket, Exhaust Pipe
[03.1989 - 08.1989] 4AGE..AE92 |
90917-06047 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06045 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
|
17430
|
17430
17430-16400 Pipe Assy, Exhaust, TailEXHAUST, TAIL [05.1987 - 08.1989] 4AGE..AE92 |
17430-16400 |
US $368.37 |
||
| replacement | |||||
|
17430
|
17430
17430-16690
Pipe Assy, Exhaust, Tail
[05.1987 - 08.1989] 4AGE..AE92 |
17430-16690 |
— | ||
|
17430
|
17430
17430-16820
Pipe Assy, Exhaust, Tail
[08.1989 - 08.1993] 4AGE..AE92 |
17430-16820 |
— | ||
|
17448
|
17448
17448-16010
Baffle, Tail Pipe
[05.1987 - 05.1988] 4AGE..AE92 |
17448-16010 |
— | ||
| replacement | |||||
|
17448
|
17448
17448-19015
Baffle, Tail Pipe
[05.1987 - 05.1988] 4AGE..AE92 |
17448-19015 |
— | ||
|
17448
|
17448
17448-19015
Baffle, Tail Pipe
[05.1988 - 08.1989] 4AGE..AE92 |
17448-19015 |
— | ||
|
17448
|
17448
17448-19025
Baffle, Tail Pipe
[08.1989 - 05.1992] 4AGE..AE92..GEN W(PP BUMPER) |
17448-19025 |
— | ||
| replacement | |||||
|
17448
|
17448
17448-19015
Baffle, Tail Pipe
[08.1989 - 05.1992] 4AGE..AE92..GEN W(PP BUMPER) |
17448-19015 |
— | ||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[05.1987 - 03.1989] 4AGE..AE92 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[05.1987 - 03.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
|
17451
|
17451
90917-06047
Gasket, Exhaust Pipe
[03.1989 - 08.1989] 4AGE..AE92 |
90917-06047 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[03.1989 - 08.1989] 4AGE..AE92 |
90917-06045 |
from US $1.60 |
||
|
17506A
|
17506A
17506-15050
Bracket Sub-Assy, Exhaust Pipe No.1 Support
[05.1987 - 08.1993] 4A#,2E..AE92,EE90..3D,5D |
17506-15050 |
— | ||
|
17507
|
17507
17507-15030
Bracket Sub-Assy, Exhaust Pipe No.2 Support
[05.1987 - 08.1993] 4A#,2E..AE92,EE90 |
17507-15030 |
— | ||
|
17508
|
17508
17508-15040
Support Sub-Assy, Exhaust Pipe, No.3
[05.1987 - 08.1993] 4A#,2E..AE92,EE90..3D,5D |
17508-15040 |
— | ||
|
17565A
|
17565A
17565-15040 Support, Exhaust Pipe, No.4[05.1987 - 08.1993] 4A#,2E..AE92,EE90..3D,5D NO.3 |
17565-15040 |
US $20.68 |
||
|
17565A
|
17565A
17565-15070 Support, Exhaust Pipe, No.3[05.1987 - 08.1993] 4AGE..AE92 NO.1 |
17565-15070 |
from US $7.14 |
||
|
17572
|
17572
17572-15050 Bracket, Exhaust Pipe No.1 Support[05.1987 - 08.1993] 4A#,2E..AE92,EE90 |
17572-15050 |
US $22.01 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.82 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
