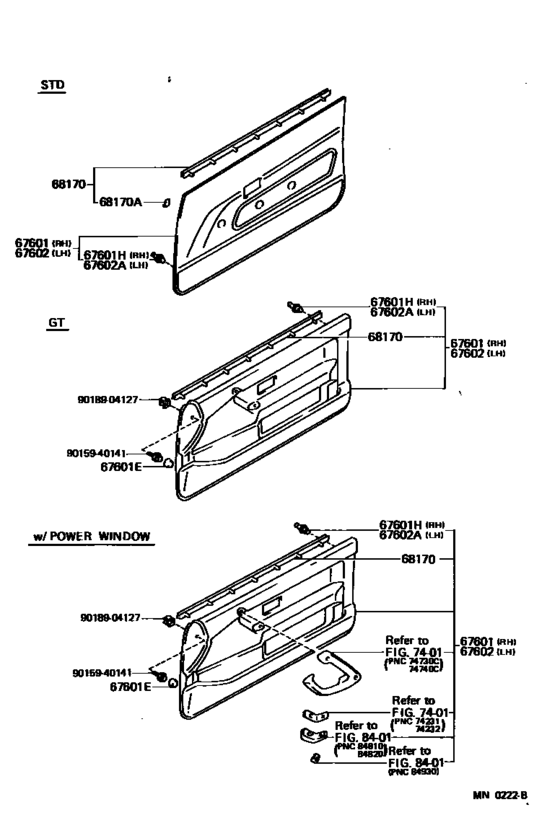

Front Door Panel & Glass ([08.1989 - ] (8908- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- 3D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-1E680-03 Board Sub-Assy, Front Door Trim, Rh[08.1989 - 05.1992] AE92..GTI SHADOW GRAY,TRIM1# |
67610-1E680-03 |
US $451.36 |
||
|
67601
|
67601
67610-1E690-03 Board Sub-Assy, Front Door Trim, Rh[08.1989 - 05.1992] AE92..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67610-1E690-03 |
US $653.74 |
||
|
67601
|
67601
67650-1A400-03 Board Sub-Assy, Front Door Trim, Rh[06.1988 - 08.1989] AE92..GTI SHADOW GRAY,TRIM1# |
67650-1A400-03 |
US $426.61 |
||
| replacement | |||||
|
67601
|
67601
67610-1E680-03 Board Sub-Assy, Front Door Trim, Rh[06.1988 - 08.1989] AE92..GTI SHADOW GRAY,TRIM1# |
67610-1E680-03 |
US $451.36 |
||
|
67601
|
67601
67650-1A410-03 Board Sub-Assy, Front Door Trim, Rh[06.1988 - 08.1989] AE92..RHD..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67650-1A410-03 |
US $550.37 |
||
|
67601
|
67601
67650-1A650-03 Board Sub-Assy, Front Door Trim, Rh[05.1987 - 06.1988] AE92..GTI SHADOW GRAY,TRIM1# |
67650-1A650-03 |
US $428.06 |
||
| replacement | |||||
|
67601
|
67601
67610-1E680-03 Board Sub-Assy, Front Door Trim, Rh[05.1987 - 06.1988] AE92..GTI SHADOW GRAY,TRIM1# |
67610-1E680-03 |
US $451.36 |
||
|
67601
|
67601
67650-1A660-03 Board Sub-Assy, Front Door Trim, Rh[05.1987 - 06.1988] AE92..RHD..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67650-1A660-03 |
US $550.37 |
||
| replacement | |||||
|
67601
|
67601
67650-1A410-03 Board Sub-Assy, Front Door Trim, Rh[05.1987 - 06.1988] AE92..RHD..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67650-1A410-03 |
US $550.37 |
||
|
67601E
|
67601E
90339-10002-13
Cap(For Front Door Trim Board)
[05.1987 - 08.1989] AE92,EE90..GL,GT,GTI SHADOW GRAY,TRIM1# |
90339-10002-13 |
— | ||
| replacement | |||||
|
67601E
|
67601E
90339-10002-B3 Cap(For Front Door Trim Board)[05.1987 - 08.1989] AE92,EE90..GL,GT,GTI SHADOW GRAY,TRIM1# |
90339-10002-B3 |
US $2.33 |
||
|
67601H
|
67601H
67771-12040 Clip (For Quarter Inside Trim Board)[05.1987 - 05.1992] AE92..GTI |
67771-12040 |
from US $2.38 |
||
|
67602
|
67602
67620-1E730-03 Board Sub-Assy, Front Door Trim, Lh[06.1988 - 08.1989] AE92..GTI SHADOW GRAY,TRIM1# |
67620-1E730-03 |
US $426.61 |
||
| replacement | |||||
|
67602
|
67602
67620-1H810-03 Board Sub-Assy, Front Door Trim, Lh[06.1988 - 08.1989] AE92..GTI SHADOW GRAY,TRIM1# |
67620-1H810-03 |
US $451.36 |
||
|
67602
|
67602
67620-1E740-03
Board Sub-Assy, Front Door Trim, Lh
[06.1988 - 08.1989] AE92..RHD..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1E740-03 |
— | ||
|
67602
|
67602
67620-1E820-03 Board Sub-Assy, Front Door Trim, Lh[05.1987 - 06.1988] AE92..GTI SHADOW GRAY,TRIM1# |
67620-1E820-03 |
US $428.06 |
||
| replacement | |||||
|
67602
|
67602
67620-1H810-03 Board Sub-Assy, Front Door Trim, Lh[05.1987 - 06.1988] AE92..GTI SHADOW GRAY,TRIM1# |
67620-1H810-03 |
US $451.36 |
||
|
67602
|
67602
67620-1E830-03
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 06.1988] AE92..RHD..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1E830-03 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-1E740-03
Board Sub-Assy, Front Door Trim, Lh
[05.1987 - 06.1988] AE92..RHD..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1E740-03 |
— | ||
|
67602
|
67602
67620-1H800-03 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 05.1992] AE92..GTI W(*PW & *EL),SHADOW GRAY,TRIM1# |
67620-1H800-03 |
US $527.07 |
||
|
67602
|
67602
67620-1H810-03 Board Sub-Assy, Front Door Trim, Lh[08.1989 - 05.1992] AE92..GTI SHADOW GRAY,TRIM1# |
67620-1H810-03 |
US $451.36 |
||
|
67602A
|
67602A
67771-12040 Clip (For Quarter Inside Trim Board)[05.1987 - 05.1992] AE92..GTI |
67771-12040 |
from US $2.38 |
||
|
68170
|
68170
68171-12190
Weatherstrip Assy, Front Door Glass, Inner
[05.1987 - 05.1992] AE92..GTI RH |
68171-12190 |
— | ||
|
68170
|
68170
68172-12120 Weatherstrip Assy, Front Door Glass, Inner[05.1987 - 05.1992] AE92..GTI LH |
68172-12120 |
US $42.08 |
||
|
9015940141
|
9015940141
90159-40141 SCREW |
90159-40141 |
from US $1.54 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
