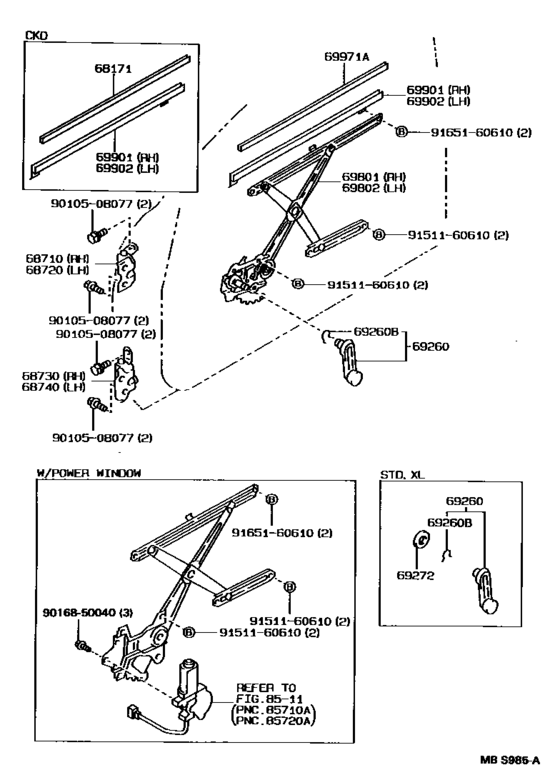

Front Door Window Regulator & Hinge ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- 3D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68171
|
68171
68171-20030
Weatherstrip, Front Door Glass Channel
[05.1987 - 06.1992] AE92,EE90..(3D,5D)..GEN |
68171-20030 |
— | ||
|
68710
|
68710
68710-12110 Hinge Assy, Front Door, Upper Rh[05.1987 - 07.1992] EE90..3D;EE90..GCC;AE92..GTI,SR5 |
68710-12110 |
US $40.70 |
||
|
68720
|
68720
68720-12110
Hinge Assy, Front Door, Upper Lh
[05.1987 - 07.1992] EE90..3D;EE90..GCC;AE92..GTI,SR5 |
68720-12110 |
— | ||
|
68730
|
68730
68730-12070
Hinge Assy, Front Door, Lower Rh
[05.1987 - 07.1992] EE90..3D;EE90..GCC;AE92..GTI,SR5 |
68730-12070 |
— | ||
|
68740
|
68740
68740-12070
Hinge Assy, Front Door, Lower Lh
[05.1987 - 07.1992] EE90..3D;EE90..GCC;AE92..GTI,SR5 |
68740-12070 |
— | ||
|
69260
|
69260
69260-12080-03 Handle Assy, Front Door Window Regulator[05.1987 - 06.1992] AE92,EE90..GL,GTI SHADOW GRAY,TRIM1# |
69260-12080-03 |
US $13.54 |
||
|
69260B
|
69260B
90520-01005 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1987 - 08.1993] AE92,EE90..GL,GT,GTI |
90520-01005 |
from US $1.07 |
||
|
69801
|
69801
69801-12110 Regulator Sub-Assy, Front Door Window, Rh[05.1987 - 05.1992] AE92..GTI W(*PW) |
69801-12110 |
US $97.55 |
||
|
69801
|
69801
69810-12320 Regulator Sub-Assy, Front Door Window, Rh[05.1987 - 05.1992] AE92,EE90..3D |
69810-12320 |
US $97.55 |
||
|
69802
|
69802
69802-12110 Regulator Sub-Assy, Front Door Window, Lh[05.1987 - 05.1992] AE92..GTI W(*PW) |
69802-12110 |
US $97.55 |
||
|
69802
|
69802
69820-12320 Regulator Sub-Assy, Front Door Window, Lh[05.1987 - 05.1992] AE92,EE90..3D |
69820-12320 |
US $97.55 |
||
|
69901
|
69901
69901-12200 Channel Sub-Assy, Front Door Glass, Rh[05.1987 - 05.1992] AE92,EE90..3D |
69901-12200 |
US $11.07 |
||
|
69901
|
69901
69901-12210 Channel Sub-Assy, Front Door Glass, RhFRONT DOOR GLASS, RH [05.1987 - 05.1992] AE92,EE90..3D W(FRONT GLASS T=4.0) |
69901-12210 |
US $11.07 |
||
|
69902
|
69902
69902-12140 Channel Sub-Assy, Front Door Glass, Lh[05.1987 - 05.1992] AE92,EE90..3D |
69902-12140 |
US $11.07 |
||
|
69902
|
69902
69902-12150 Channel Sub-Assy, Front Door Glass, LhFRONT DOOR GLASS, LH [05.1987 - 05.1992] AE92,EE90..3D W(FRONT GLASS T=4.0) |
69902-12150 |
US $11.07 |
||
|
69971A
|
69971A
69971-12090 Filler, Front Door Glass Channel[05.1987 - 08.1989] AE92,EE90..3D |
69971-12090 |
US $7.17 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.97 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
US $2.15 |
||
