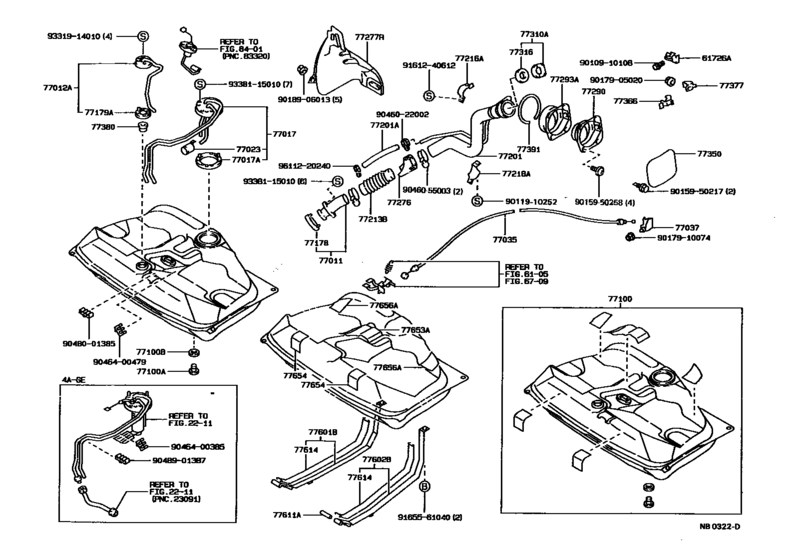

Fuel Tank & Tube ([05.1987 - ] (8705- )3D,5D) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- AE92
- grade
- GTI
- body
- 3D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77011
|
77011
77011-12040
Pipe Sub-Assy, Fuel Tank Filler, Lower
[08.1987 - 08.1993] AE92,EE90 |
77011-12040 |
— | ||
|
77011
|
77011
77011-12060 Pipe Sub-Assy, Fuel Tank Filler, Lower[05.1987 - 08.1987] AE92,EE90..3D,5D |
77011-12060 |
US $46.45 |
||
| replacement | |||||
|
77011
|
77011
77011-12040
Pipe Sub-Assy, Fuel Tank Filler, Lower
[05.1987 - 08.1987] AE92,EE90..3D,5D |
77011-12040 |
— | ||
|
77012A
|
77012A
77012-12010 Tube Sub-Assy, Fuel Tank Breather, No.1[05.1987 - 08.1987] AE92,EE90..3D,5D |
77012-12010 |
US $39.17 |
||
| replacement | |||||
|
77012A
|
77012A
77012-12030 Tube Sub-Assy, Fuel Tank Breather, No.1[05.1987 - 08.1987] AE92,EE90..3D,5D |
77012-12030 |
US $45.14 |
||
|
77012A
|
77012A
77012-12030 Tube Sub-Assy, Fuel Tank Breather, No.1[08.1987 - 08.1993] AE92,EE90..3D,5D |
77012-12030 |
US $45.14 |
||
|
77035
|
77035
77035-12230
Cable Sub-Assy, Fuel Lid Lock Control
[05.1987 - 08.1993] AE92,EE90..RHD..(3D,5D)..(GL,GT,GTI,XL) |
77035-12230 |
— | ||
|
77037
|
77037
77037-12050 Lock Sub-Assy, Fuel Filler Opening Lid[05.1987 - 08.1993] AE92,EE90..GL,GT,GTI,SR5,XL |
77037-12050 |
from US $14.02 |
||
|
77100
|
77100
77001-19555
Tank Assy, Fuel
[08.1988 - 08.1989] AE92..GTI |
77001-19555 |
— | ||
| replacements | |||||
|
77100
|
77100
77001-19595
Tank Assy, Fuel
[08.1988 - 08.1989] AE92..GTI |
77001-19595 |
— | ||
|
77100
|
77100
77001-19605
Tank Assy, Fuel
[08.1988 - 08.1989] AE92..GTI |
77001-19605 |
— | ||
|
77100A
|
77100A
90341-20004 Plug(For Fuel Tank)[05.1987 - 08.1993] AE92,EE90 |
90341-20004 |
US $6.45 |
||
|
77100B
|
77100B
90430-20007 Gasket(For Fuel Tank)[05.1987 - 08.1993] AE92,EE90 |
90430-20007 |
US $3.94 |
||
|
77178
|
77178
77178-12010
Gasket, Fuel Tank Filler Pipe, Lower
[05.1987 - 05.1988] AE92,EE90 |
77178-12010 |
— | ||
|
77178
|
77178
77178-20010 Gasket, Fuel Tank Filler Pipe, Lower[05.1988 - 08.1993] AE92,EE90 |
77178-20010 |
US $7.71 |
||
|
77179A
|
77179A
77179-16010 Gasket, Fuel Tank Evap/vent Tube[05.1987 - 08.1993] AE92,EE90 |
77179-16010 |
US $8.60 |
||
|
77201
|
77201
77201-12330 Pipe Sub-Assy, Fuel Tank Inlet[05.1987 - 08.1993] AE92,EE90 |
77201-12330 |
US $158.70 |
||
| replacement | |||||
|
77201
|
77201
77201-12350
Pipe Sub-Assy, Fuel Tank Inlet
[05.1987 - 08.1993] AE92,EE90 |
77201-12350 |
— | ||
|
77201A
|
77201A
90445-22024 Hose, Fuel, No.1(For Fuel Tank)[05.1987 - 08.1993] AE92,EE90 L=385 |
90445-22024 |
from US $11.37 |
||
|
77213B
|
77213B
77213-12140
Hose, Fuel Tank To Filler Pipe
[05.1987 - 08.1993] AE92,EE90 |
77213-12140 |
— | ||
|
77216A
|
77216A
77216-12040 Support, Fuel Tank Filler Pipe, No.1[05.1987 - 08.1993] AE92,EE90 |
77216-12040 |
US $6.26 |
||
|
77218A
|
77218A
77218-12010
Support, Fuel Tank Filler Pipe, No.3
[05.1987 - 08.1993] AE92,EE90 |
77218-12010 |
— | ||
|
77276
|
77276
77276-12040
Protector, Fuel Hose
[05.1987 - 08.1993] AE92,EE90 |
77276-12040 |
— | ||
|
77277R
|
77277R
77277-12090
Protector, Fuel Tank Filler Pipe
[05.1987 - 02.1991] AE92,EE90..3D,5D |
77277-12090 |
— | ||
|
77290
|
77290
77291-12060 Shield Assy, Fuel Tank Filler Pipe[05.1987 - 02.1991] AE92,EE90 |
77291-12060 |
from US $12.75 |
||
|
77293A
|
77293A
77293-12030 Shield, Fuel Tank Filler Pipe, No.3[05.1987 - 02.1991] AE92,EE90 |
77293-12030 |
from US $9.96 |
||
|
77310A
|
77310A
77310-12100 Cap Assy, Fuel Tank[05.1987 - 08.1993] AE92,EE90 |
77310-12100 |
from US $30.71 |
||
|
77316
|
77316
77316-12050 Gasket (For Fuel Tank Cap)[05.1987 - 08.1993] AE92,EE90 |
77316-12050 |
from US $4.17 |
||
|
77350
|
77350
77350-12220 Lid Assy, Fuel Filler Opening[05.1987 - 11.1988] AE92..GT,GTI;EE90..(GL,XL)..(GCC,GEN) |
77350-12220 |
US $48.34 |
||
|
77366
|
77366
77360-12010 Spring, Fuel Filler Opening Lid Hinge[05.1987 - 02.1991] AE92,EE90..3D,5D |
77360-12010 |
US $6.12 |
||
|
77377
|
77377
77377-12040 Retainer, Fuel Filler Opening Lid Lock[05.1987 - 11.1988] AE92..GT;AE92,EE90..(GL,GTI,XL)..(GCC,GEN) |
77377-12040 |
US $10.83 |
||
|
77380
|
77380
77380-14020 Valve Assy, Fuel Cut Off[05.1987 - 08.1993] AE92,EE90 |
77380-14020 |
US $20.83 |
||
|
77391
|
77391
77391-14020 Ring, Fuel Inlet Box[05.1987 - 02.1991] AE92,EE90 |
77391-14020 |
US $1.93 |
||
|
77601B
|
77601B
77601-12110 Band Sub-Assy, Fuel Tank, No.1 Rh[05.1987 - 07.1992] AE92,EE90..(3D,5D)..(GCC,GEN) |
77601-12110 |
US $33.49 |
||
|
77602B
|
77602B
77602-12060
Band Sub-Assy, Fuel Tank, No.1 Lh
[05.1987 - 07.1992] AE92,EE90..(3D,5D)..(GCC,GEN) |
77602-12060 |
— | ||
|
77611A
|
77611A
90250-08019 Pin (For Fuel Tank Band)[05.1987 - 08.1993] AE92,EE90 |
90250-08019 |
US $2.62 |
||
|
77614
|
77614
77681-12010
Seat, Fuel Tank Band
[05.1987 - 08.1993] AE92,EE90 |
77681-12010 |
— | ||
|
77653A
|
77653A
77653-12070 Cushion, Fuel Tank, No.3[05.1987 - 08.1987] AE92,EE90..3D,5D |
77653-12070 |
US $15.29 |
||
| replacement | |||||
|
77653A
|
77653A
77653-12090 Cushion, Fuel Tank, No.3[05.1987 - 08.1987] AE92,EE90..3D,5D |
77653-12090 |
US $15.29 |
||
|
77653A
|
77653A
77653-12090 Cushion, Fuel Tank, No.3[08.1987 - 05.1992] AE92,EE90..3D,5D |
77653-12090 |
US $15.29 |
||
|
77654
|
77654
77652-16050 Cushion, Fuel Tank, No.1[05.1987 - 08.1987] AE92,EE90..3D,5D |
77652-16050 |
US $3.93 |
||
| replacement | |||||
|
77654
|
77654
77652-16060 Cushion, Fuel Tank, No.2[05.1987 - 08.1987] AE92,EE90..3D,5D |
77652-16060 |
US $3.79 |
||
|
77654
|
77654
77652-16060 Cushion, Fuel Tank, No.2[08.1987 - 05.1992] AE92,EE90..3D,5D |
77652-16060 |
US $3.79 |
||
|
77656A
|
77656A
77654-12030 Cushion, Fuel Tank, No.4[05.1987 - 08.1987] AE92,EE90..3D,5D |
77654-12030 |
US $8.88 |
||
| replacement | |||||
|
77656A
|
77656A
77654-12060 Cushion, Fuel Tank, No.4[05.1987 - 08.1987] AE92,EE90..3D,5D |
77654-12060 |
US $8.44 |
||
|
77656A
|
77656A
77654-12060 Cushion, Fuel Tank, No.4[08.1987 - 05.1992] AE92,EE90..3D,5D |
77654-12060 |
US $8.44 |
||
|
9010910108
|
9010910108
90109-10108
New Genuine Part
|
90109-10108 |
— | ||
|
9011910252
|
9011910252
90119-10252 BOLT |
90119-10252 |
US $4.84 |
||
|
9015950217
|
9015950217
90159-50217 SCREW WWASHER |
90159-50217 |
US $1.25 |
||
|
9015950258
|
9015950258
90159-50258 New Genuine Part |
90159-50258 |
US $1.60 |
||
|
9017905020
|
9017905020
90179-05020
NUT
|
90179-05020 |
— | ||
| replacement | |||||
|
9017905020
|
9017905020
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
|
9017910074
|
9017910074
90179-10074 New Genuine Part |
90179-10074 |
US $1.97 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046055003
|
9046055003
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.84 |
||
|
9046400385
|
9046400385
90464-00385 New Genuine Part |
90464-00385 |
US $4.22 |
||
|
9046400479
|
9046400479
90464-00479 New Genuine Part |
90464-00479 |
US $2.77 |
||
|
9048001385
|
9048001385
90480-01385
New Genuine Part
|
90480-01385 |
— | ||
|
9048901387
|
9048901387
90489-01387
New Genuine Part
|
90489-01387 |
— | ||
|
9161240612
|
9161240612
91612-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91612-40612 |
US $2.18 |
||
| replacement | |||||
|
9161240612
|
9161240612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165561040
|
9165561040
91655-61040
New Genuine Part
|
91655-61040 |
— | ||
| replacement | |||||
|
9165561040
|
9165561040
91651-61035 BOLT |
91651-61035 |
US $3.58 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $1.08 |
||
|
9611220240
|
9611220240
96112-20240 New Genuine Part |
96112-20240 |
US $3.20 |
||
