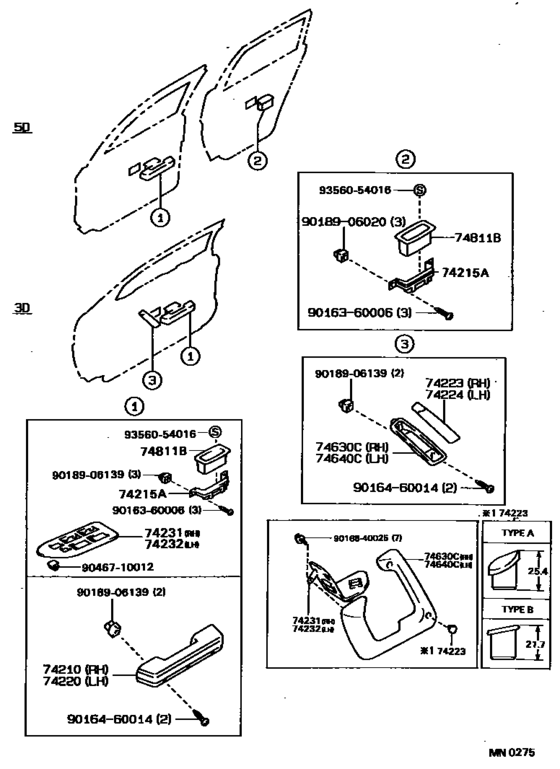

Armrest & Visor ([08.1989 - ] (8908- )) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GTI
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74223
|
74223
74223-12070-03 Cap, Door Armrest, Rh[05.1987 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1# |
74223-12070-03 |
US $7.72 |
||
|
74223
|
74223
74223-12090-03 Cap, Door Armrest, Rh[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1#,TYPE A |
74223-12090-03 |
US $6.84 |
||
|
74223
|
74223
74223-12100-03
Cap, Door Armrest, Rh
[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1#,TYPE B |
74223-12100-03 |
— | ||
|
74224
|
74224
74223-12100-03
Cap, Door Armrest, Rh
[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1#,TYPE B |
74223-12100-03 |
— | ||
|
74224
|
74224
74224-12020-03 Cap, Door Armrest, Lh[05.1987 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1# |
74224-12020-03 |
US $7.72 |
||
|
74224
|
74224
74224-12040-03 Cap, Door Armrest, Lh[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1#,TYPE A |
74224-12040-03 |
US $6.84 |
||
|
74231
|
74231
74231-12090-03
Panel, Front Armrest Base, Upper Rh
[08.1989 - 05.1992] AE92,EE90..RHD..(GL,GTI) SHADOW GRAY,TRIM1# |
74231-12090-03 |
— | ||
|
74232
|
74232
74232-12070-03 Panel, Front Armrest Base, Upper Lh[08.1989 - 05.1992] AE92,EE90..RHD..(GL,GTI) SHADOW GRAY,TRIM1# |
74232-12070-03 |
US $27.52 |
||
|
74630C
|
74630C
74630-12010-03
Grip Assy, Door Assist, Rh
[05.1987 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1# |
74630-12010-03 |
— | ||
|
74630C
|
74630C
74630-12030-03 Grip Assy, Door Assist, Rh[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) W(*PW & *EL),SHADOW GRAY,TRIM1# |
74630-12030-03 |
US $122.30 |
||
|
74640C
|
74640C
74640-12010-03 Grip Assy, Door Assist, Lh[05.1987 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) SHADOW GRAY,TRIM1# |
74640-12010-03 |
US $26.35 |
||
|
74640C
|
74640C
74640-12030-03 Grip Assy, Door Assist, Lh[08.1989 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI,SR5) W(*PW & *EL),SHADOW GRAY,TRIM1# |
74640-12030-03 |
US $122.30 |
||
|
9016360006
|
9016360006
90163-60006 New Genuine Part |
90163-60006 |
US $1.60 |
||
|
9016460014
|
9016460014
90164-60014 SCREW |
90164-60014 |
US $2.15 |
||
|
9016840025
|
9016840025
90168-40025 SCREW |
90168-40025 |
US $1.61 |
||
|
9018906020
|
9018906020
90189-06020 New Genuine Part |
90189-06020 |
US $1.93 |
||
|
9018906139
|
9018906139
90189-06139 GROMMET SCREW |
90189-06139 |
US $1.05 |
||
|
9046710012
|
9046710012
90467-10012 CLIP |
90467-10012 |
from US $0.96 |
||
|
9356054016
|
9356054016
93560-54016 SCREW |
93560-54016 |
from US $1.08 |
