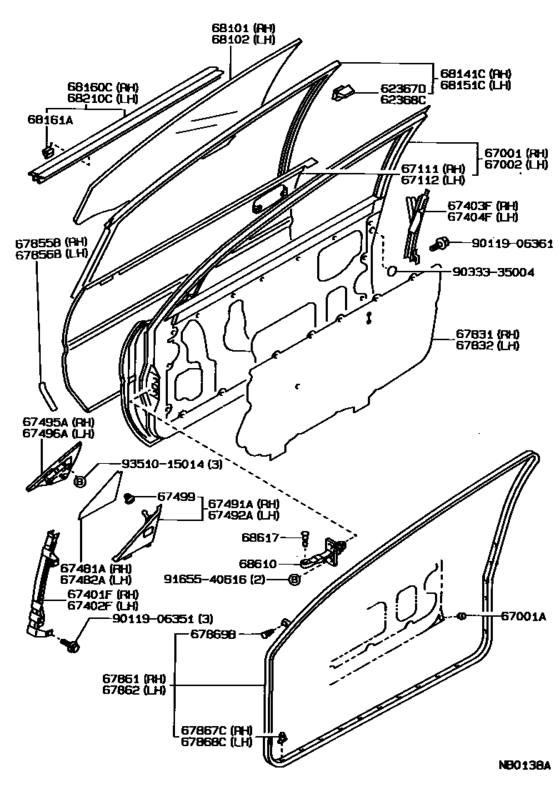

Front Door Panel & Glass ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GTI
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62367D
|
62367D
62367-12050 Clip, Door Window Glass, RhDOOR WINDOW GLASS, RH [11.1987 - 11.1992] AE92,CE90,EE90..3D |
62367-12050 |
US $5.24 |
||
|
62368C
|
62368C
62367-12050 Clip, Door Window Glass, RhDOOR WINDOW GLASS, RH [11.1987 - 11.1992] AE92,CE90,EE90..3D |
62367-12050 |
US $5.24 |
||
|
67001
|
67001
67001-1A320 Panel Sub-Assy, Front Door, Rh[05.1987 - 03.1988] AE92,CE90,EE90..3D |
67001-1A320 |
US $888.16 |
||
| replacements | |||||
|
67001
|
67001
67001-1A321 Panel Sub-Assy, Front Door, Rh[05.1987 - 03.1988] AE92,CE90,EE90..3D |
67001-1A321 |
US $883.79 |
||
|
67001
|
67001
68141-12361 Run, Front Door Glass, Rh[05.1987 - 03.1988] AE92,CE90,EE90..3D |
68141-12361 |
US $52.71 |
||
|
67001
|
67001
68141-12381 Run, Front Door Glass, RhFRONT DOOR GLASS, RH [05.1987 - 03.1988] AE92,CE90,EE90..3D |
68141-12381 |
US $52.71 |
||
|
67001
|
67001
67001-1A321 Panel Sub-Assy, Front Door, Rh[03.1988 - 11.1992] AE92,CE90,EE90..3D |
67001-1A321 |
US $883.79 |
||
|
67001A
|
67001A
90541-09059 Cushion, Front Door Panel[05.1987 - 11.1992] AE92,CE90,EE90..3D |
90541-09059 |
US $2.48 |
||
| replacement | |||||
|
67001A
|
67001A
90541-09006 Cushion, Front Door Panel[05.1987 - 11.1992] AE92,CE90,EE90..3D |
90541-09006 |
from US $1.70 |
||
|
67002
|
67002
67002-1A300 Panel Sub-Assy, Front Door, Lh[05.1987 - 03.1988] AE92,CE90,EE90..3D |
67002-1A300 |
US $888.16 |
||
| replacements | |||||
|
67002
|
67002
67002-1A301 Panel Sub-Assy, Front Door, Lh[05.1987 - 03.1988] AE92,CE90,EE90..3D |
67002-1A301 |
US $883.79 |
||
|
67002
|
67002
68151-12081 Run, Front Door Glass, Lh[05.1987 - 03.1988] AE92,CE90,EE90..3D |
68151-12081 |
US $52.71 |
||
|
67002
|
67002
68151-12101 Run, Front Door Glass, LhFRONT DOOR GLASS, LH [05.1987 - 03.1988] AE92,CE90,EE90..3D |
68151-12101 |
US $52.71 |
||
|
67002
|
67002
67002-1A301 Panel Sub-Assy, Front Door, Lh[03.1988 - 11.1992] AE92,CE90,EE90..3D |
67002-1A301 |
US $883.79 |
||
|
67111
|
67111
67111-12480 Panel, Front Door, Outer Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
67111-12480 |
US $355.26 |
||
|
67112
|
67112
67112-12470 Panel, Front Door, Outer Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
67112-12470 |
US $355.26 |
||
|
67401F
|
67401F
67401-12280 Frame Sub-Assy, Front Door, Front Lower Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
67401-12280 |
US $34.65 |
||
|
67402F
|
67402F
67402-12300 Frame Sub-Assy, Front Door, Front Lower Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
67402-12300 |
US $34.65 |
||
|
67403F
|
67403F
67403-12140 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [05.1987 - 11.1992] AE92,CE90,EE90..3D |
67403-12140 |
US $29.12 |
||
|
67404F
|
67404F
67404-12140 Frame Sub-Assy, Front Door, Rear Lower LhFRONT DOOR, REAR LOWER LH [05.1987 - 11.1992] AE92,CE90,EE90..3D |
67404-12140 |
US $29.12 |
||
|
67481A
|
67481A
67481-12210 Seal, Front Door Front Lower Frame, RhFRONT DOOR FRONT LOWER FRAME, RH [05.1987 - 08.1989] AE92,CE90,EE90 |
67481-12210 |
US $6.26 |
||
|
67482A
|
67482A
67482-12140 Seal, Front Door Front Lower Frame, LhFRONT DOOR FRONT LOWER FRAME, LH [05.1987 - 08.1989] AE92,CE90,EE90 |
67482-12140 |
US $6.26 |
||
|
67491A
|
67491A
67491-12190 Garnish, Front Door Lower Frame Bracket, Rh[05.1987 - 05.1992] AE92..RHD W(ELECTRIC REMOTE CONTROL MIRROR) |
67491-12190 |
US $10.05 |
||
|
67491A
|
67491A
67491-12200 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [05.1987 - 05.1992] AE92..RHD; CE90,EE90..RHD..3D W(MANUAL REMOTE CONTROL MIRROR) |
67491-12200 |
US $10.05 |
||
|
67492A
|
67492A
67492-12190 Garnish, Front Door Lower Frame Bracket, Lh[05.1987 - 05.1992] AE92..RHD;AE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI) |
67492-12190 |
US $10.05 |
||
|
67492A
|
67492A
67492-12200 Garnish, Front Door Lower Frame Bracket, LhFRONT DOOR LOWER FRAME BRACKET, LH [05.1987 - 05.1992] AE92,CE90,EE90..RHD..3D W(MANUAL REMOTE CONTROL MIRROR); AE92,CE90,EE90..LHD..3D..(GL,GLI,SR5,STD,XL,XLI) W(MANUAL REMOTE CONTROL MIRROR) |
67492-12200 |
US $10.05 |
||
|
67496A
|
67496A
67496-12140 Cover, Front Door Front Lower Frame, Upper Lh[05.1987 - 05.1992] AE92,CE90,EE90..RHD..3D |
67496-12140 |
US $8.59 |
||
|
67499
|
67499
67499-12030 Retainer, Front Door Lower Frame Bracket Garnish[10.1987 - 11.1992] AE92,CE90,EE90 |
67499-12030 |
US $4.66 |
||
|
67499
|
67499
67499-32010
Retainer, Front Door Lower Frame Bracket Garnish
[05.1987 - 10.1987] AE92,CE90,EE90 |
67499-32010 |
— | ||
|
67831
|
67831
67831-12430 Cover, Front Door Service Hole, Rh[05.1987 - 08.1989] AE92,EE90..3D..(GL,GTI) W(*PW) |
67831-12430 |
US $10.63 |
||
|
67831
|
67831
67832-12260 Cover, Front Door Service Hole, Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
67832-12260 |
US $10.19 |
||
|
67832
|
67832
67832-12260 Cover, Front Door Service Hole, Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
67832-12260 |
US $10.19 |
||
|
67855B
|
67855B
58741-12060 Protector, Quarter Panel, Rh[10.1987 - 11.1992] AE92,CE90,EE90 |
58741-12060 |
US $11.79 |
||
|
67856B
|
67856B
58741-12060 Protector, Quarter Panel, Rh[10.1987 - 11.1992] AE92,CE90,EE90 |
58741-12060 |
US $11.79 |
||
|
67861
|
67861
67861-12610
Weatherstrip, Front Door, Rh
[05.1987 - 10.1987] AE92,CE90,EE90..3D |
67861-12610 |
— | ||
| replacement | |||||
|
67861
|
67861
67861-12750
Weatherstrip, Front Door, Rh
[05.1987 - 10.1987] AE92,CE90,EE90..3D |
67861-12750 |
— | ||
|
67861
|
67861
67861-12750
Weatherstrip, Front Door, Rh
[10.1987 - 11.1992] AE92,CE90,EE90..3D |
67861-12750 |
— | ||
|
67862
|
67862
67862-12610
Weatherstrip, Front Door, Lh
[05.1987 - 10.1987] AE92,CE90,EE90..3D |
67862-12610 |
— | ||
| replacement | |||||
|
67862
|
67862
67862-12710 Weatherstrip, Front Door, Lh[05.1987 - 10.1987] AE92,CE90,EE90..3D |
67862-12710 |
US $141.23 |
||
|
67862
|
67862
67862-12710 Weatherstrip, Front Door, Lh[10.1987 - 11.1992] AE92,CE90,EE90..3D |
67862-12710 |
US $141.23 |
||
|
67867C
|
67867C
67868-12020
Retainer, Front Door Weatherstrip, Rh
[05.1987 - 06.1991] AE92,CE90,EE90..3D |
67868-12020 |
— | ||
| replacement | |||||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[05.1987 - 06.1991] AE92,CE90,EE90..3D |
67868-12050 |
from US $2.61 |
||
|
67867C
|
67867C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[06.1991 - 11.1992] AE92,CE90,EE90..3D |
67868-12050 |
from US $2.61 |
||
|
67868C
|
67868C
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[05.1987 - 08.1989] AE92,CE90,EE90..3D |
67868-12050 |
from US $2.61 |
||
|
67869B
|
67869B
67869-12020 Clip, Door Glass Weatherstrip(For Front Door)[05.1987 - 08.1989] AE92,CE90,EE90 |
67869-12020 |
US $2.62 |
||
|
68101
|
68101
68111-12660 Glass Sub-Assy, Front Door, Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI) *TT,T=3.5 |
68111-12660 |
US $260.62 |
||
|
68101
|
68101
68111-12760 Glass Sub-Assy, Front Door, Rh[11.1990 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI) *TT,T=3.5,GRAY |
68111-12760 |
US $336.34 |
||
| replacement | |||||
|
68101
|
68101
68111-12670 Glass Sub-Assy, Front Door, Rh[11.1990 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI) *TT,T=3.5,GRAY |
68111-12670 |
US $313.04 |
||
|
68102
|
68102
68112-12660 Glass Sub-Assy, Front Door, Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI) *TT,T=3.5 |
68112-12660 |
US $260.62 |
||
|
68102
|
68102
68112-12760 Glass Sub-Assy, Front Door, Lh[11.1990 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI) *TT,T=3.5,GRAY |
68112-12760 |
US $336.34 |
||
| replacement | |||||
|
68102
|
68102
68112-12670 Glass Sub-Assy, Front Door, Lh[11.1990 - 11.1992] AE92,EE90..3D..(GL,GLI,GTI) *TT,T=3.5,GRAY |
68112-12670 |
US $313.04 |
||
|
68141C
|
68141C
68141-12360 Run, Front Door Glass, Rh[05.1987 - 11.1987] AE92,CE90,EE90..3D |
68141-12360 |
US $52.85 |
||
| replacement | |||||
|
68141C
|
68141C
68141-12361 Run, Front Door Glass, Rh[05.1987 - 11.1987] AE92,CE90,EE90..3D |
68141-12361 |
US $52.71 |
||
|
68141C
|
68141C
68141-12380 Run, Front Door Glass, RhFRONT DOOR GLASS, RH [11.1987 - 03.1988] AE92,CE90,EE90..3D |
68141-12380 |
US $52.85 |
||
| replacement | |||||
|
68141C
|
68141C
68141-12381 Run, Front Door Glass, RhFRONT DOOR GLASS, RH [11.1987 - 03.1988] AE92,CE90,EE90..3D |
68141-12381 |
US $52.71 |
||
|
68141C
|
68141C
68141-12381 Run, Front Door Glass, RhFRONT DOOR GLASS, RH [03.1988 - 11.1992] AE92,CE90,EE90..3D |
68141-12381 |
US $52.71 |
||
|
68151C
|
68151C
68151-12080 Run, Front Door Glass, Lh[05.1987 - 11.1987] AE92,CE90,EE90..3D |
68151-12080 |
US $52.85 |
||
| replacement | |||||
|
68151C
|
68151C
68151-12081 Run, Front Door Glass, Lh[05.1987 - 11.1987] AE92,CE90,EE90..3D |
68151-12081 |
US $52.71 |
||
|
68151C
|
68151C
68151-12100 Run, Front Door Glass, LhFRONT DOOR GLASS, LH [11.1987 - 03.1988] AE92,CE90,EE90..3D |
68151-12100 |
US $52.85 |
||
| replacement | |||||
|
68151C
|
68151C
68151-12101 Run, Front Door Glass, LhFRONT DOOR GLASS, LH [11.1987 - 03.1988] AE92,CE90,EE90..3D |
68151-12101 |
US $52.71 |
||
|
68151C
|
68151C
68151-12101 Run, Front Door Glass, LhFRONT DOOR GLASS, LH [03.1988 - 11.1992] AE92,CE90,EE90..3D |
68151-12101 |
US $52.71 |
||
|
68610
|
68610
68610-12050
Check Assy, Front Door
[05.1987 - 07.1989] AE92,CE90,EE90 |
68610-12050 |
— | ||
|
68610
|
68610
68610-12070 Check Assy, Front Door[07.1989 - 11.1992] AE92,CE90,EE90..3D |
68610-12070 |
US $49.21 |
||
|
68617
|
68617
68617-12030 Pin, Front Door Check[09.1988 - 11.1992] AE92,CE90,EE90 |
68617-12030 |
US $3.67 |
||
|
68617
|
68617
68617-22020 Pin(For Front Door Check)[05.1987 - 09.1988] AE92,CE90,EE90 |
68617-22020 |
US $3.93 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.96 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
