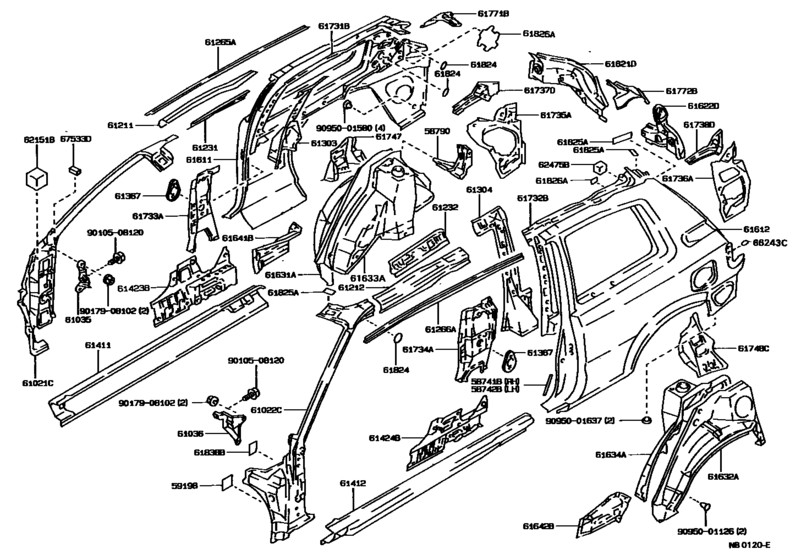

Side Member ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- AE92
- grade
- GTI
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741B
|
58741B
58741-12050 Protector, Quarter Panel, RhQUARTER PANEL, RH [08.1988 - 11.1992] AE92,CE90,EE90..3D |
58741-12050 |
US $4.66 |
||
|
58741B
|
58741B
58741-12060 Protector, Quarter Panel, Rh[10.1987 - 08.1988] AE92,CE90,EE90 |
58741-12060 |
US $11.79 |
||
|
58742B
|
58742B
58741-12060 Protector, Quarter Panel, Rh[10.1987 - 08.1988] AE92,CE90,EE90 |
58741-12060 |
US $11.79 |
||
|
58742B
|
58742B
58742-12050 Protector, Quarter Panel, LhQUARTER PANEL, LH [08.1988 - 11.1992] AE92,CE90,EE90..3D |
58742-12050 |
US $4.66 |
||
|
58790
|
58790
58790-12050 Carrier Assy, Jack[05.1987 - 11.1992] AE92,CE90,EE90 |
58790-12050 |
US $29.27 |
||
|
59198
|
59198
59198-12010 Seal, Noise Shutter[05.1987 - 11.1992] AE92,CE90,EE90 |
59198-12010 |
US $1.60 |
||
|
61021C
|
61021C
61021-12780 Pillar Sub-Assy, Front Body, Rh[05.1987 - 06.1992] AE92,CE90,EE90..RHD |
61021-12780 |
US $630.45 |
||
|
61022C
|
61022C
61022-12790 Pillar Sub-Assy, Front Body, Lh[05.1987 - 06.1992] AE92,CE90,EE90..RHD |
61022-12790 |
US $630.45 |
||
|
61036
|
61036
61036-12040 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[05.1987 - 06.1992] AE92,CE90,EE90..RHD |
61036-12040 |
US $26.50 |
||
|
61211
|
61211
61211-12240 Rail, Roof Side, Outer Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61211-12240 |
US $38.44 |
||
|
61212
|
61212
61212-12240 Rail, Roof Side, Outer Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61212-12240 |
US $38.44 |
||
|
61231
|
61231
61231-12470 Rail, Roof Side, Inner Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61231-12470 |
US $29.99 |
||
|
61232
|
61232
61232-12400 Rail, Roof Side, Inner Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61232-12400 |
US $29.99 |
||
|
61265A
|
61265A
61265-12130 Channel, Roof Drip Side, Center Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61265-12130 |
US $29.99 |
||
|
61266A
|
61266A
61266-12130 Channel, Roof Drip Side, Center Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61266-12130 |
US $29.99 |
||
|
61303
|
61303
61303-12070 Reinforce Sub-Assy, Center Body Pillar, Upper Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61303-12070 |
US $54.31 |
||
|
61303
|
61303
61303-12090 Reinforce Sub-Assy, Center Body Pillar, Upper Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI) W(SUN ROOF) |
61303-12090 |
US $54.31 |
||
|
61304
|
61304
61304-12060 Reinforce Sub-Assy, Center Body Pillar, Upper Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61304-12060 |
US $54.31 |
||
|
61304
|
61304
61304-12080 Reinforce Sub-Assy, Center Body Pillar, Upper Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI) W(SUN ROOF) |
61304-12080 |
US $54.31 |
||
|
61367
|
61367
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61367-14010 |
US $9.17 |
||
|
61411
|
61411
61411-12390 Panel, Rocker, Outer Rh[05.1987 - 11.1992] AE92..GTI |
61411-12390 |
US $298.48 |
||
|
61412
|
61412
61412-12380 Panel, Rocker, Outer Lh[05.1987 - 11.1992] AE92..GTI |
61412-12380 |
US $298.48 |
||
|
61423B
|
61423B
61423-12040 Reinforcement, Rocker Panel, No.3 Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61423-12040 |
US $55.76 |
||
|
61424B
|
61424B
61424-12030 Reinforcement, Rocker Panel, No.3 Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61424-12030 |
US $55.76 |
||
|
61611
|
61611
61611-12926
Panel, Quarter, Rh
[05.1987 - 11.1992] AE92..GTI |
61611-12926 |
— | ||
|
61612
|
61612
61612-12912
Panel, Quarter, Lh
[05.1987 - 11.1992] AE92..GTI |
61612-12912 |
— | ||
|
61621D
|
61621D
61621-12901
Trough, Back Door Opening, Rh
[05.1987 - 10.1989] AE92,CE90,EE90 |
61621-12901 |
— | ||
| replacement | |||||
|
61621D
|
61621D
61621-12905 Trough, Back Door Opening, Rh[05.1987 - 10.1989] AE92,CE90,EE90 |
61621-12905 |
US $57.08 |
||
|
61621D
|
61621D
61621-12905 Trough, Back Door Opening, Rh[10.1989 - 11.1992] AE92,CE90,EE90 |
61621-12905 |
US $57.08 |
||
|
61622D
|
61622D
61622-12901
Trough, Back Door Opening, Lh
[05.1987 - 08.1989] CE90..3D;AE92,EE90 |
61622-12901 |
— | ||
| replacement | |||||
|
61622D
|
61622D
61622-12905 Trough, Back Door Opening, Lh[05.1987 - 08.1989] CE90..3D;AE92,EE90 |
61622-12905 |
US $57.08 |
||
|
61622D
|
61622D
61622-12905 Trough, Back Door Opening, Lh[10.1989 - 11.1992] AE92,CE90,EE90 |
61622-12905 |
US $57.08 |
||
|
61631A
|
61631A
61631-12230
Panel, Quarter Wheel House, Outer Rh
[05.1987 - 11.1992] AE92,CE90,EE90 |
61631-12230 |
— | ||
|
61632A
|
61632A
61632-12230
Panel, Quarter Wheel House, Outer Lh
[05.1987 - 11.1992] AE92,CE90,EE90 |
61632-12230 |
— | ||
|
61633A
|
61633A
61607-12210
Panel, Quarter Wheel House, Inner Rh
[05.1987 - 11.1992] AE92,CE90,EE90 |
61607-12210 |
— | ||
|
61634A
|
61634A
61608-12220
Panel, Quarter Wheel House, Inner Lh
[05.1987 - 11.1992] AE92,CE90,EE90 |
61608-12220 |
— | ||
|
61641B
|
61641B
61641-12050 Gusset, Quarter Wheel House, Rh[05.1987 - 11.1992] EE90..3D..CBR;EE90..3D..XLI;AE92,CE90..3D..(GL,GLI,GTI,STD,XL,XLI) |
61641-12050 |
US $34.65 |
||
|
61642B
|
61642B
61642-12050 Gusset, Quarter Wheel House, Lh[05.1987 - 11.1992] EE90..3D..CBR;EE90..3D..XLI;AE92,CE90..3D..(GL,GLI,GTI,STD,XL,XLI) |
61642-12050 |
US $34.65 |
||
|
61731B
|
61731B
61731-12907 Panel, Roof Side, Inner RhROOF SIDE, INNER RH [05.1987 - 11.1992] AE92,CE90,EE90..3D |
61731-12907 |
US $276.64 |
||
|
61732B
|
61732B
61732-12907 Panel, Roof Side, Inner LhROOF SIDE, INNER LH [05.1987 - 11.1992] AE92,CE90,EE90..3D |
61732-12907 |
US $276.64 |
||
|
61733A
|
61733A
61733-12130 Panel, Roof Side, Inner Front Rh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61733-12130 |
US $48.19 |
||
|
61734A
|
61734A
61734-12130 Panel, Roof Side, Inner Front Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61734-12130 |
US $48.19 |
||
|
61735A
|
61735A
61735-12270 Panel, Roof Side, Inner Rear Rh[05.1987 - 08.1989] AE92,CE90,EE90 |
61735-12270 |
US $39.89 |
||
| replacement | |||||
|
61735A
|
61735A
61735-12271 Panel, Roof Side, Inner Rear Rh[05.1987 - 08.1989] AE92,CE90,EE90 |
61735-12271 |
US $51.54 |
||
|
61735A
|
61735A
61735-12271 Panel, Roof Side, Inner Rear Rh[10.1989 - 11.1992] AE92,CE90,EE90 |
61735-12271 |
US $51.54 |
||
|
61736A
|
61736A
61736-12240 Panel, Roof Side, Inner Rear Lh[05.1987 - 08.1989] AE92,CE90,EE90 |
61736-12240 |
US $39.89 |
||
| replacement | |||||
|
61736A
|
61736A
61736-12241 Panel, Roof Side, Inner Rear Lh[05.1987 - 08.1989] AE92,CE90,EE90 |
61736-12241 |
US $51.54 |
||
|
61736A
|
61736A
61736-12241 Panel, Roof Side, Inner Rear Lh[10.1989 - 11.1992] AE92,CE90,EE90 |
61736-12241 |
US $51.54 |
||
|
61737D
|
61737D
61737-12100 Reinforcement, Roof Side, Inner Rh[05.1987 - 11.1992] AE92,CE90,EE90 |
61737-12100 |
US $29.27 |
||
|
61738D
|
61738D
61738-12110 Reinforcement, Roof Side, Inner Lh[05.1987 - 11.1992] AE92,CE90,EE90 |
61738-12110 |
US $29.27 |
||
|
61747
|
61747
61747-12120
Brace, Roof Side Inner To Wheel House, Rh
[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61747-12120 |
— | ||
|
61748C
|
61748C
61748-12120 Brace, Roof Side Inner To Wheel House, Lh[05.1987 - 11.1992] AE92,CE90,EE90..3D |
61748-12120 |
US $40.33 |
||
|
61771B
|
61771B
61771-12010 Frame, Back Door Opening Upper Corner, Rh[05.1987 - 11.1992] AE92,CE90,EE90 |
61771-12010 |
US $24.75 |
||
|
61772B
|
61772B
61772-12010 Frame, Back Door Opening Upper Corner, Lh[05.1987 - 11.1992] AE92,CE90,EE90 |
61772-12010 |
US $24.75 |
||
|
61824
|
61824
61824-12020 Plate, Noise Control, No.1[05.1987 - 05.1989] AE92,CE90,EE90 FRONT |
61824-12020 |
US $2.18 |
||
| replacement | |||||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1987 - 05.1989] AE92,CE90,EE90 FRONT |
61824-12040 |
US $1.89 |
||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1989 - 11.1992] AE92,CE90,EE90 |
61824-12040 |
US $1.89 |
||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[05.1987 - 08.1989] AE92,CE90,EE90 90 X 65 |
61825-12010 |
US $2.04 |
||
|
61825A
|
61825A
61825-12020 Plate, Noise Control, No.2[05.1987 - 08.1989] AE92,CE90,EE90 50 X 160 |
61825-12020 |
US $3.20 |
||
|
61826A
|
61826A
61826-12020 Pad, Noise Shutter, No.1[05.1987 - 08.1989] AE92,CE90,EE90 65X40; CE90,EE90..STD; AE92,CE90,EE90..GL,GTI,XL |
61826-12020 |
US $2.04 |
||
|
61826A
|
61826A
61826-12030 Plate, Noise Control, No.3[05.1987 - 08.1989] AE92,CE90,EE90 180X196 |
61826-12030 |
US $5.10 |
||
|
61838B
|
61838B
61838-12010 Plate, Noise Control, No.5[05.1987 - 11.1992] AE92,CE90,EE90 |
61838-12010 |
US $3.20 |
||
|
62151B
|
62151B
62151-12100 Pad, Cowl Side Silencer[05.1987 - 06.1991] AE92,CE90,EE90 |
62151-12100 |
US $14.71 |
||
|
62475B
|
62475B
62475-12040 Plate, Noise Control, No.1[05.1987 - 11.1992] AE92,CE90,EE90 |
62475-12040 |
US $5.68 |
||
|
66243C
|
66243C
66243-20010 Protector, Rear Body, No.1[05.1989 - 08.1989] AE92,CE90,EE90 |
66243-20010 |
US $2.20 |
||
|
67533D
|
67533D
67533-12010 Pad, Front Door Lower Frame Garnish, Rh[05.1987 - 11.1992] AE92,CE90,EE90 |
67533-12010 |
US $6.41 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $4.12 |
||
|
9095001637
|
9095001637
90950-01637 PLUG HOLE |
90950-01637 |
US $1.97 |
||
