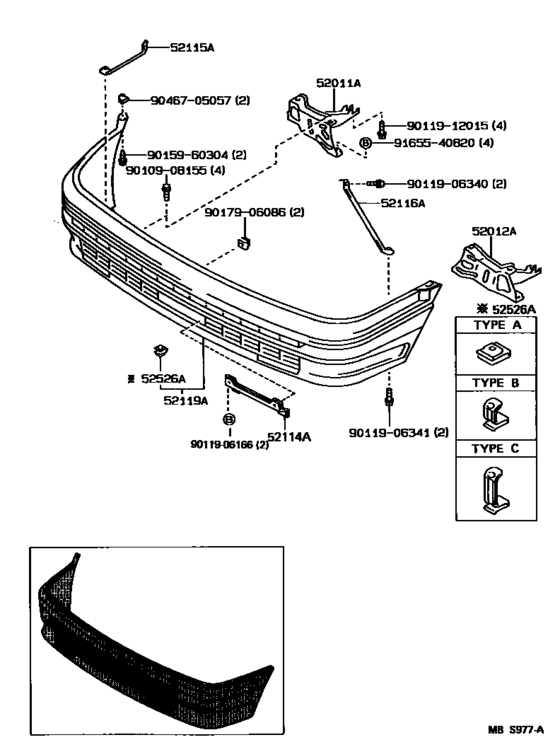

Front Bumper & Bumper Stay ([08.1989 - ] TYPE E (8908- )3D,5D) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52011A
|
52011A
52011-12360
Arm Sub-Assy, Front Bumper, Rh
[05.1987 - 08.1993] AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL) TYPE E |
52011-12360 |
— | ||
|
52012A
|
52012A
52012-12370
Arm Sub-Assy, Front Bumper, Lh
[05.1987 - 08.1993] AE92,EE90..SA TYPE E; AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN) TYPE E |
52012-12370 |
— | ||
|
52115A
|
52115A
52115-12260
Support, Front Bumper Side, Rh
[05.1987 - 08.1993] AE92,EE90..SA TYPE E; AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN) TYPE E |
52115-12260 |
— | ||
|
52116A
|
52116A
52116-12200
Support, Front Bumper Side, Lh
[05.1987 - 08.1993] AE92,EE90..SA TYPE E; AE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN) TYPE E |
52116-12200 |
— | ||
|
52526A
|
52526A
52565-12040 Retainer, Front Bumper, Lower Center[05.1987 - 10.1989] AE92,EE90..3D,5D TYPE A |
52565-12040 |
US $4.84 |
||
|
52526A
|
52526A
52565-12090 Retainer, Front Bumper, Lower No.1[05.1988 - 08.1993] AE92,EE90..3D,5D TYPE B |
52565-12090 |
US $9.03 |
||
|
52526A
|
52526A
52565-12110 Retainer, Front Bumper, Lower No.1[05.1988 - 08.1993] AE92,EE90..(3D,5D)..(GL,GT,SR5,STD,XL) TYPE C |
52565-12110 |
US $8.74 |
||
|
9010908155
|
9010908155
90109-08155
New Genuine Part
|
90109-08155 |
— | ||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.43 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.79 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9011912015
|
9011912015
90119-12015
New Genuine Part
|
90119-12015 |
— | ||
| replacement | |||||
|
9011912015
|
9011912015
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
US $3.05 |
||
|
9046705057
|
9046705057
90467-05057 New Genuine Part |
90467-05057 |
from US $3.49 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
