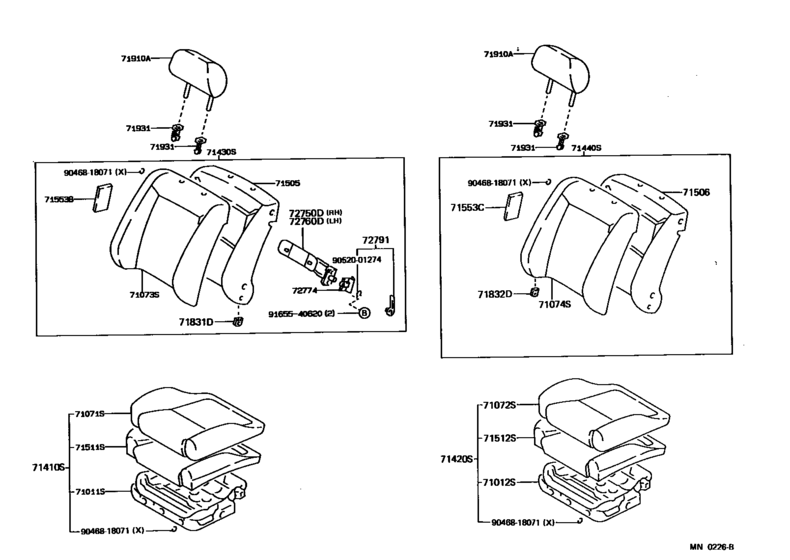

Front Seat & Seat Track ([05.1987 - ] (8705- )3D,5D..GL,SR5,STD,XL) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-12280 Frame Sub-Assy, Front Seat Cushion, Rh[05.1987 - 08.1993] AE92,EE90..3D,5D |
71011-12280 |
US $147.06 |
||
|
71012S
|
71012S
71011-12280 Frame Sub-Assy, Front Seat Cushion, Rh[05.1987 - 08.1993] AE92,EE90..3D,5D |
71011-12280 |
US $147.06 |
||
|
71430S
|
71430S
71430-1H610-03
Back Assy, Front Seat, Rh(For Separate Type)
[08.1988 - 08.1989] AE92,EE90..XL..SA ***,SHADOW GRAY,TRIM1#; EE90..5D..XL..GEN ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1# |
71430-1H610-03 |
— | ||
|
71505
|
71505
71505-12050 Pad Sub-Assy, Front Seat Back W/frame, Rh[05.1987 - 08.1993] AE92,EE90..(3D,5D)..(SR5,STD,XL) |
71505-12050 |
US $352.35 |
||
|
71506
|
71506
71506-12040 Pad Sub-Assy, Front Seat Back W/frame, Lh[05.1987 - 08.1993] AE92,EE90..(3D,5D)..(SR5,STD,XL) |
71506-12040 |
US $349.44 |
||
|
71511S
|
71511S
71511-12590 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [05.1987 - 08.1993] AE92,EE90..(3D,5D)..(SR5,STD,XL) |
71511-12590 |
US $243.15 |
||
|
71512S
|
71512S
71511-12590 Pad, Front Seat Cushion, Rh(For Separate Type)FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) [05.1987 - 08.1993] AE92,EE90..(3D,5D)..(SR5,STD,XL) |
71511-12590 |
US $243.15 |
||
|
71553B
|
71553B
71553-12200 Pad, Front Seat Back, B[05.1987 - 08.1989] EE90;AE92..RHD..(STD,XL) |
71553-12200 |
US $12.52 |
||
|
71553C
|
71553C
71553-12200 Pad, Front Seat Back, B[05.1987 - 08.1989] EE90;AE92..RHD..(STD,XL) |
71553-12200 |
US $12.52 |
||
|
71831D
|
71831D
71831-12010 Cover, Front Seat Hinge[05.1987 - 08.1993] EE90;AE92..GCC;AE92..RHD..(STD,XL) |
71831-12010 |
US $6.41 |
||
|
71832D
|
71832D
71831-12010 Cover, Front Seat Hinge[05.1987 - 08.1993] EE90;AE92..GCC;AE92..RHD..(STD,XL) |
71831-12010 |
US $6.41 |
||
|
71931
|
71931
71930-12050-03 Support, Front Seat Headrest[05.1987 - 07.1991] AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),SHADOW GRAY,TRIM1# |
71930-12050-03 |
US $12.23 |
||
| replacement | |||||
|
71931
|
71931
71930-12050-B0 Support, Front Seat Headrest[05.1987 - 07.1991] AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),SHADOW GRAY,TRIM1# |
71930-12050-B0 |
US $11.65 |
||
|
71931
|
71931
71930-12050-05 Support, Front Seat Headrest[05.1987 - 08.1989] AE92..XL;EE90..XL..SA;EE90..GCC,GEN W(LOCK),DARK BEIGE,TRIM4# |
71930-12050-05 |
US $12.23 |
||
|
71931
|
71931
71930-12050-16 Support, Front Seat HeadrestFRONT SEAT HEADREST [08.1989 - 07.1991] EE90..LHD..XL..GEN;AE92,EE90..XL..(GCC,SA) W(LOCK),BROWN,TRIM4# |
71930-12050-16 |
US $12.23 |
||
|
71931
|
71931
71931-12010-03 Support, Front Seat Headrest[05.1987 - 07.1991] AE92..SR5,XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),SHADOW GRAY,TRIM1# |
71931-12010-03 |
US $12.38 |
||
|
71931
|
71931
71931-12010-05 Support, Front Seat Headrest[05.1987 - 08.1989] AE92..XL;EE90..XL..SA;EE90..GCC,GEN W/O(LOCK),DARK BEIGE,TRIM4# |
71931-12010-05 |
US $12.38 |
||
|
71931
|
71931
71931-12010-16 Support, Front Seat HeadrestFRONT SEAT HEADREST [08.1989 - 07.1991] EE90..LHD..XL..GEN;AE92,EE90..XL..(GCC,SA) W/O(LOCK),BROWN,TRIM4# |
71931-12010-16 |
US $12.38 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.86 |
||
|
9052001274
|
9052001274
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.94 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
