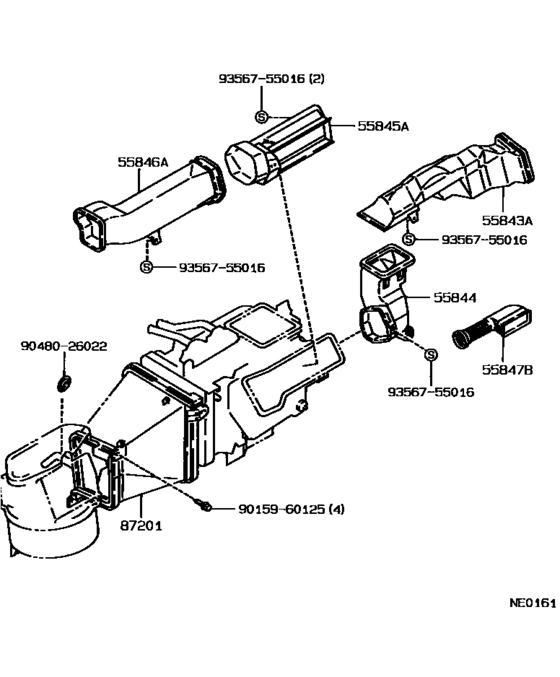

Heating & Air Conditioning - Control & Air Duct ([05.1987 - ] (8705- )RHD..3D,5D) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-12170 Duct, Heater To Register, No.1[05.1987 - 08.1993] AE92,EE90..RHD..(3D,5D) |
55843-12170 |
US $48.63 |
||
|
55844
|
55844
55844-12210 Duct, Heater To Register, No.2[08.1988 - 08.1993] AE92,EE90..SA |
55844-12210 |
US $34.65 |
||
|
55844
|
55844
55844-12230 Duct, Heater To Register, No.2[08.1989 - 08.1993] AE92,EE90..SA W(AIR CONDITIONER) |
55844-12230 |
US $34.65 |
||
|
55845A
|
55845A
55845-12110 Duct, Heater To Register, No.3[05.1987 - 08.1993] AE92,EE90..RHD..(3D,5D) |
55845-12110 |
US $31.16 |
||
|
55846A
|
55846A
55846-12090 Duct, Heater To Register, No.4[05.1987 - 08.1993] AE92,EE90..RHD..(3D,5D) |
55846-12090 |
US $44.99 |
||
|
55847B
|
55847B
55847-12071
Duct, Heater To Register, No.5
[08.1989 - 08.1993] AE92,EE90 |
55847-12071 |
— | ||
|
87201
|
87201
87201-12110
Duct Sub-Assy, Air, No.1
[08.1988 - 08.1993] AE92,EE90..SA |
87201-12110 |
— | ||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
