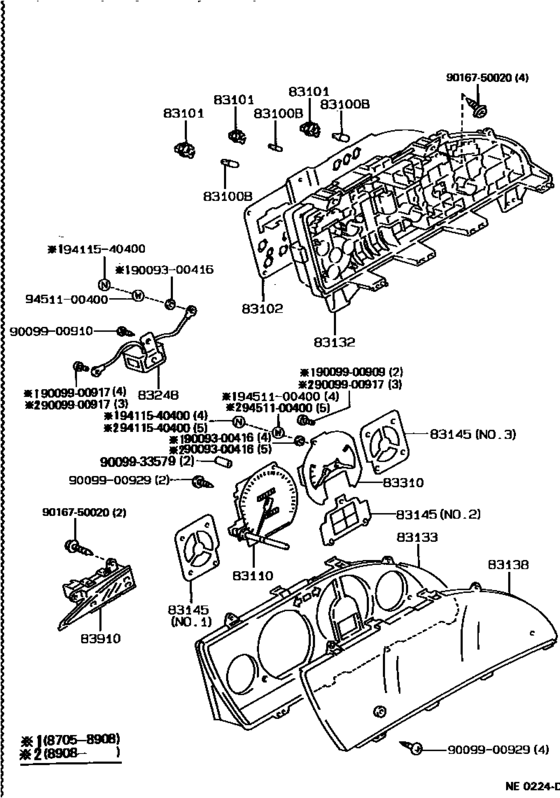

Meter ([05.1987 - ] (8705- )3D,5D..STD,XL) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- XL
- body
- 5D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[05.1987 - 09.1988] EE90..XL..(GCC,GEN) 12V 1.4W,W(SOCKET); EE90..GL;AE92..XL..SA 12V 1.4W,W(SOCKET) |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1987 - 08.1993] EE90;AE92..GCC;AE92..RHD..(STD,XL) 12V 3.4W,BLUE CAP |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1987 - 09.1988] EE90..XL..GEN 12V 1.2W W/O SOCKET; EE90..GL;AE92..(3D,5D)..5F 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 08.1993] EE90..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 08.1993] EE90..GL;AE92..(3D,5D)..5F..(GEN,SA) 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1987 - 08.1993] EE90..GL;AE92..XL..SA 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1987 - 09.1988] EE90..XL..GEN 14V 1.4W BULB; EE90..GL;AE92..(3D,5D)..5F 14V 1.4W BULB |
83101-14040 |
US $2.22 |
||
|
83102
|
83102
83247-1E580
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1988 - 08.1993] AE92..XL..SA |
83247-1E580 |
— | ||
|
83110
|
83110
83110-1E330 Speedometer Assy[08.1988 - 08.1993] AE92..XL..SA |
83110-1E330 |
US $353.81 |
||
|
83132
|
83132
83132-1A250
Case, Combination Meter
[05.1987 - 08.1993] AE92..XL..SA;EE90..RHD..GL |
83132-1A250 |
— | ||
|
83133
|
83133
83133-1A870
Plate, Combination Meter, No.1
[08.1988 - 08.1993] AE92..XL..SA |
83133-1A870 |
— | ||
| replacement | |||||
|
83133
|
83133
83133-1H210
Plate, Combination Meter, No.1
[08.1988 - 08.1993] AE92..XL..SA |
83133-1H210 |
— | ||
|
83138
|
83138
83138-1A010
Glass, Speedometer
[05.1987 - 08.1993] AE92,EE90..RHD..(3D,5D)..(GL,STD,XL) |
83138-1A010 |
— | ||
|
83310
|
83310
83243-1A230 Gage Assy, Fuel Receiver[05.1987 - 08.1989] AE92..XL..SA;EE90..RHD..GL; EE90..RHD..XL..GEN W(TACHOMATER) |
83243-1A230 |
US $119.39 |
||
|
83910
|
83910
83910-12400 Clock Assy[05.1987 - 08.1989] AE92,EE90..RHD..(3D,5D)..(GL,STD,XL) |
83910-12400 |
US $410.59 |
||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009933579
|
9009933579
90099-33579
New Genuine Part
|
90099-33579 |
— | ||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $2.15 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
