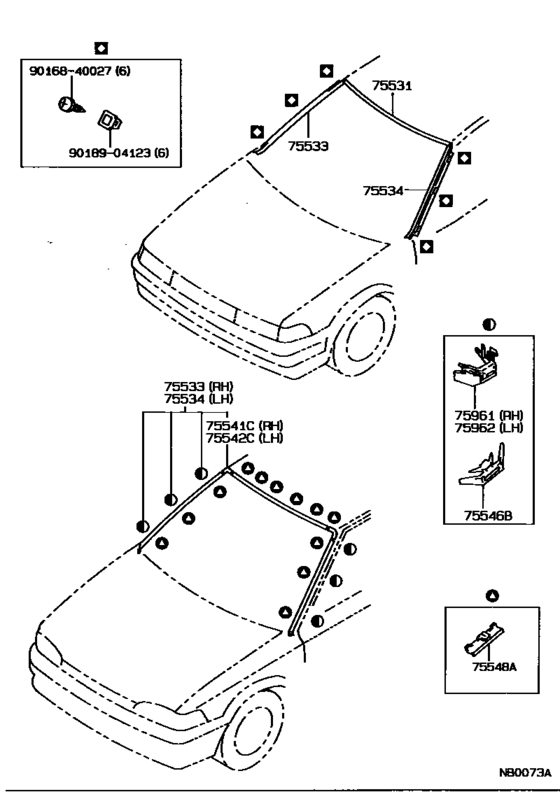

Front Moulding ([05.1987 - ] (8705- )) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- GT
- body
- 5D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75531
|
75531
75531-12290 Moulding, Windshield, Outer Upper[05.1987 - 08.1993] AE92,EE90..3D,5D |
75531-12290 |
US $33.05 |
||
|
75533
|
75533
75533-12290 Moulding, Windshield, Outside Rh[05.1987 - 08.1989] AE92,EE90..3D,5D |
75533-12290 |
US $40.48 |
||
|
75533
|
75533
75533-12291
Moulding, Windshield, Outside Rh
[08.1989 - 08.1993] AE92,EE90..SA |
75533-12291 |
— | ||
|
75534
|
75534
75534-12220
Moulding, Windshield, Outside Lh
[05.1987 - 08.1989] AE92,EE90..3D,5D |
75534-12220 |
— | ||
|
75534
|
75534
75534-12221
Moulding, Windshield, Outside Lh
[08.1989 - 08.1993] AE92,EE90..SA |
75534-12221 |
— | ||
|
75541C
|
75541C
75541-12160
Cover, Windshield Moulding Joint, Upper Rh
[05.1987 - 08.1993] AE92,EE90..3D,5D |
75541-12160 |
— | ||
|
75542C
|
75542C
75542-12130
Cover, Windshield Moulding Joint, Upper Lh
[05.1987 - 08.1993] AE92,EE90..3D,5D |
75542-12130 |
— | ||
|
75546B
|
75546B
75546-12060
Clip, Windshield Outside Moulding, No.2
[05.1987 - 08.1993] AE92,EE90..3D,5D |
75546-12060 |
— | ||
|
75548A
|
75548A
75548-16030 Fastener, Windshield Outside Moulding, No.1[05.1987 - 08.1989] AE92,EE90..3D,5D |
75548-16030 |
from US $4.12 |
||
|
75961
|
75961
75961-12010
Clip, Windshield Outside Moulding, No.4
[05.1987 - 08.1993] AE92,EE90..3D,5D |
75961-12010 |
— | ||
|
75962
|
75962
75962-12010
Clip, Windshield Outside Moulding, No.5
[05.1987 - 08.1993] AE92,EE90..3D,5D |
75962-12010 |
— | ||
|
9016840027
|
9016840027
90168-40027 New Genuine Part |
90168-40027 |
from US $1.43 |
||
|
9018904123
|
9018904123
90189-04123
New Genuine Part
|
90189-04123 |
— |
