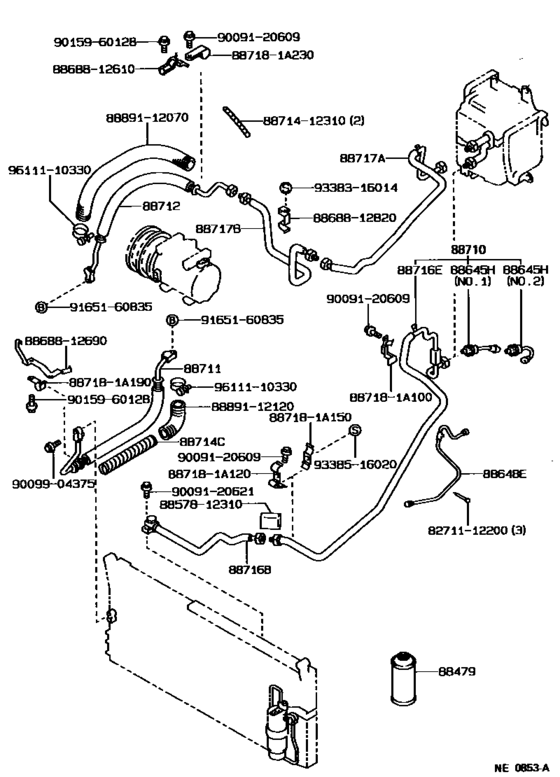

Heating & Air Conditioning - Cooler Piping ([05.1987 - ] DEALER OPT (8705- )RHD..GT,GTI) Diagram Toyota COROLLA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- AE92
- grade
- GT
- body
- 5D
- ENGINE
- 4AGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1988
- To
- 08.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla CP/HB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88645H
|
88645H
88645-10020
Switch, Pressure
[08.1988 - 08.1989] AE92,EE90..SA NO.1 |
88645-10020 |
— | ||
|
88645H
|
88645H
88645-12030
Switch, Pressure No.1
[08.1988 - 12.1988] AE92,EE90..SA NO.2 |
88645-12030 |
— | ||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[12.1988 - 08.1989] AE92,EE90..SA NO.2; AE92,EE90..GCC,GEN NO.2 |
88645-16050 |
— | ||
|
88710
|
88710
88706-12020
Tube Assy, Air Conditioner
[08.1988 - 08.1993] AE92,EE90..SA |
88706-12020 |
— | ||
|
88711
|
88711
88711-12470 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [05.1987 - 08.1989] AE92..RHD..(GT,GTI); AE92..LHD..GTI DEALER OPT |
88711-12470 |
US $179.09 |
||
|
88712
|
88712
88712-12630 Hose, Cooler Refrigerant Suction, No.1[05.1987 - 08.1993] AE92..RHD..(GT,GTI) |
88712-12630 |
US $179.09 |
||
|
88716B
|
88716B
88726-12280
Pipe, Cooler Refrigerant Liquid, B
[05.1987 - 08.1993] AE92,EE90..RHD |
88726-12280 |
— | ||
|
88716E
|
88716E
88726-12260 Pipe, Cooler Refrigerant Liquid, E[05.1987 - 08.1993] AE92,EE90..RHD |
88726-12260 |
US $132.50 |
||
|
887181A100
|
887181A100
88718-1A100
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A100 |
— | ||
|
887181A120
|
887181A120
88718-1A120
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A120 |
— | ||
|
887181A150
|
887181A150
88718-1A150
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A150 |
— | ||
|
887181A190
|
887181A190
88718-1A190
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A190 |
— | ||
|
887181A230
|
887181A230
88718-1A230
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A230 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8857812310
|
8857812310
88578-12310
Packing, Cooler Stabilizer Amplifier
|
88578-12310 |
— | ||
|
8868812610
|
8868812610
88688-12610
Bracket, Cooler Diaphragm
|
88688-12610 |
— | ||
|
8868812690
|
8868812690
88688-12690
Bracket, Cooler Diaphragm
|
88688-12690 |
— | ||
|
8868812820
|
8868812820
88688-12820
Bracket, Cooler Diaphragm
|
88688-12820 |
— | ||
|
8871412310
|
8871412310
88714-12310
Hose, Cooler Refrigerant Liquid, No.1
|
88714-12310 |
— | ||
|
8889112070
|
8889112070
88891-12070
Packing (for Cooler)
|
88891-12070 |
— | ||
|
8889112120
|
8889112120
88891-12120
Packing (for Cooler)
|
88891-12120 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009120621
|
9009120621
90091-20621
New Genuine Part
|
90091-20621 |
— | ||
|
9009904375
|
9009904375
90099-04375
New Genuine Part
|
90099-04375 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $2.15 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9338316014
|
9338316014
93383-16014
New Genuine Part
|
93383-16014 |
— | ||
|
9338516020
|
9338516020
93385-16020
New Genuine Part
|
93385-16020 |
— | ||
| replacement | |||||
|
9338516020
|
9338516020
93385-26020 New Genuine Part |
93385-26020 |
US $1.61 |
||
|
9611110330
|
9611110330
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96111-10330 |
US $2.33 |
||
